FXS Gateway TA800 | Yeastar

Yeastar TA800 features 8 FXS ports for analog phones and is designed to meet various demands of IP applications.
Call for pricing
ta800 features
ta400 hi perf

High Performance

TA800 is a stand-alone FXS VoIP gateway with carrier-grade features and reliability.

  • 8 FXS ports
  • Fully compliant with SIP and IAX2
  • Flexible calling rules
  • Superb voice compression with industry standard codecs
  • Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
  • Tested and certified with ElastixBroadSoft, and others

Flexible Installation

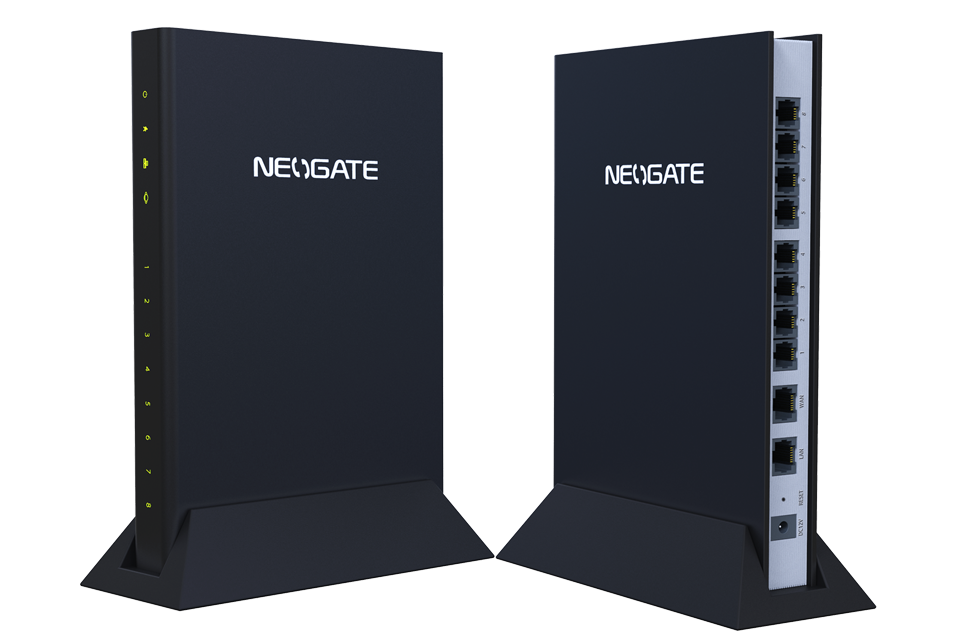

Featuring book-like design, TA800 is elegant in appearance and flexible in installation. It is a desktop device and also wall mountable. Place it on the table, it not only provides convenient connection of analog phones but also decorates your office pleasantly. Mount it on the wall, it saves you space and gives you more flexibility.

ta400 flex install
ta400 simple mgmt

Simple Management

TA800 has an easy-to-use Web interface which allows super easy and straightforward configuration.

  • LED indicators present system and port status visually
  • User-friendly Web GUI and intuitive operations
  • Comprehensive call log, system logs, hardware logs, and debug logs

Green and Quiet

With fanless design and a compact and small form factor, TA800 is very quiet when operating. And low power consumption makes TA800 a very green and cost-effective product, perfectly suitable for any type of environment.

ta400 green

Ports8 FXS Ports
Telephony InterfacesRJ11
LAN1 10/100Mbps
ProtocolSIP (RFC3261), IAX2
TransportUDP, TCP, TLS, SRTP
CodecG.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice CapabilityITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF ModeRFC2833, SIP Info, In-band
FaxT.38 and Pass-through
QoSDiffServ, ToS, 802.1 P/Q VLAN tagging
NetworkDHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network ProtocolFTP, TFTP, HTTP, HTTPS, SSH
Management ProtocolRADIUS, TR-069*
SignalingFXS Loop Start, FXS Kewl Start
Caller IDBELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect MethodsBusy Tone, Polarity Reversal
FXO Connectivity
Power12V, 1A
Dimensions (L × W × H) (mm)200 × 137 × 25
Operation Range0°C to 40°C, 32°F to 104°F;
Storage Range-20°C to 65°C, -4°F to 149°F
Humidity10-90% non-condensing
MountingDesktop, Wall-mount
CompatibilityInteroperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
