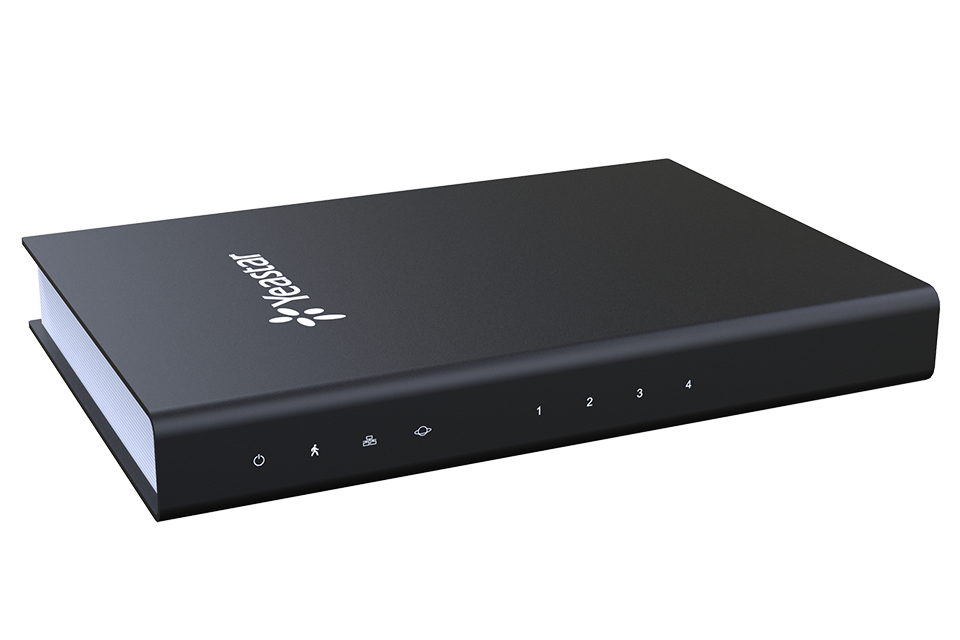

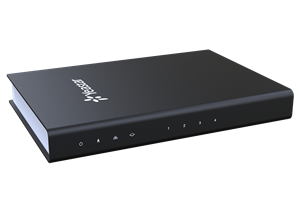

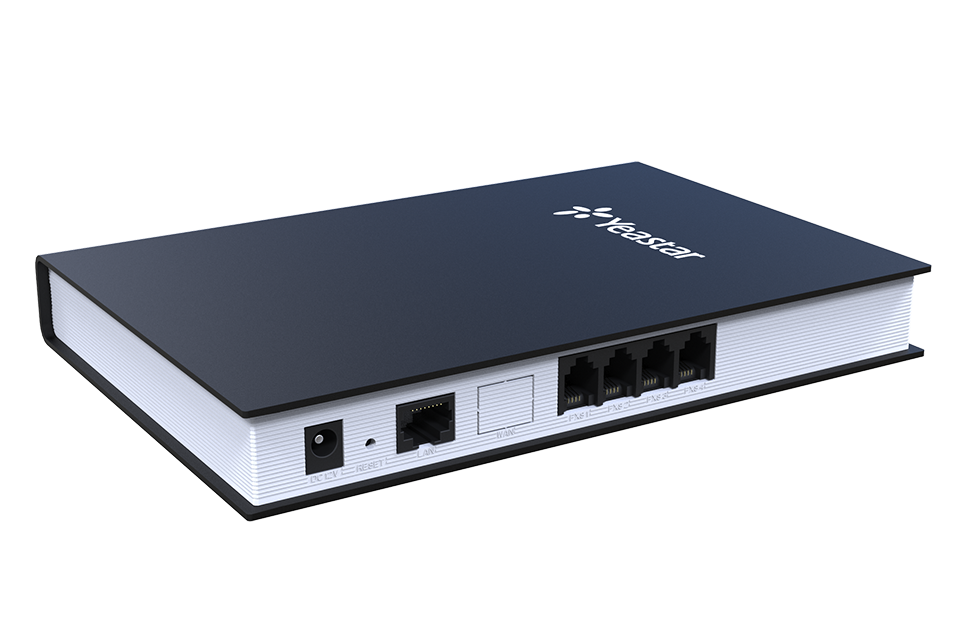

FXO Gateway TA410 | Yeastar

Yeastar TA410 is a 4-port FXO VoIP gateway that connects analog telephone lines or PABX extension interface to VoIP networks.
Manufacturer: Yeastar
Call for pricing
ta410 features
ta400 hi perf

High Performance

TA410 is a stand-alone FXO VoIP gateway with carrier-grade features and reliability.

  • 4 RJ11 FXO ports
  • Fully compliant with SIP and IAX2
  • Flexible calling rules
  • Superb voice compression with industry standard codecs
  • Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
  • Tested and certified with ElastixBroadSoft, and others

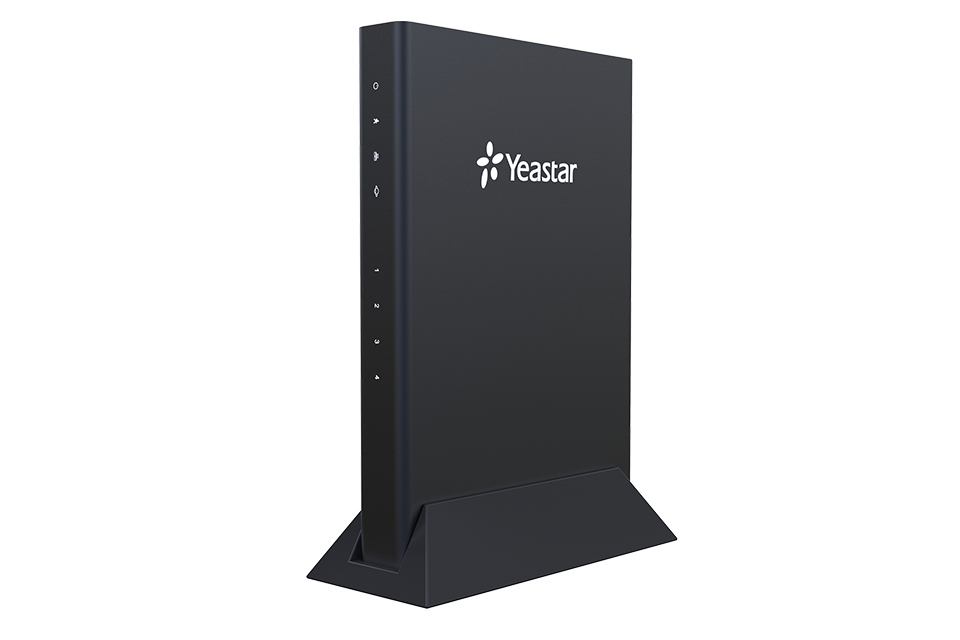

Flexible Installation

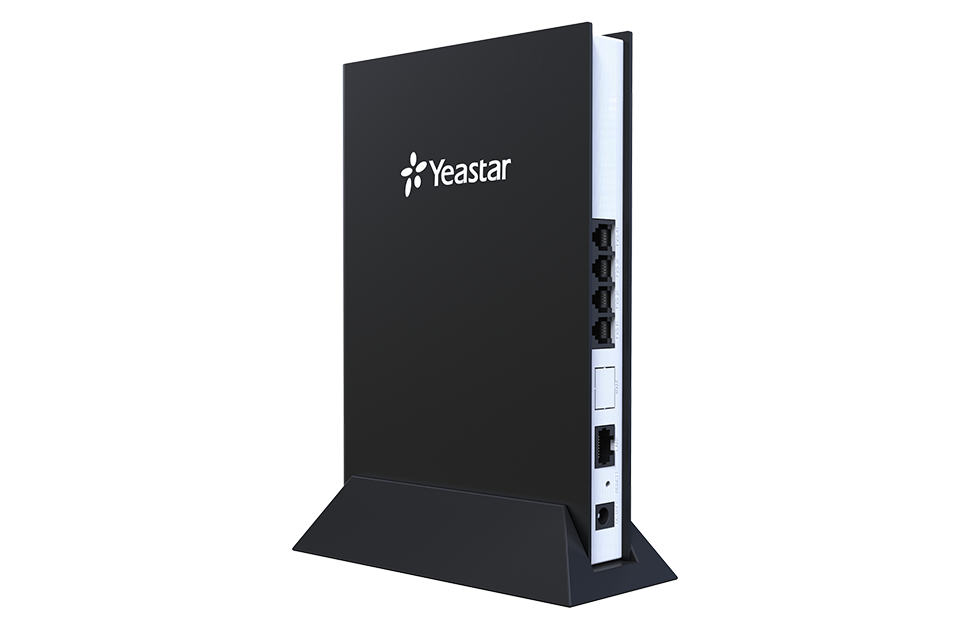

Featuring book-like design, TA410 is elegant in appearance and flexible in installation. It is a desktop device and also wall mountable. Place it on the table, it not only provides convenient connection of analog phones but also decorates your office pleasantly. Mount it on the wall, it saves you space and gives you more flexibility.

ta400 flex install
ta400 simple mgmt

Simple Management

TA410 has an easy-to-use Web interface which allows super easy and straightforward configuration.

  • LED indicators present system and port status visually
  • User-friendly Web GUI and intuitive operations
  • Comprehensive call log, system logs, hardware logs, and debug logs

Green and Quiet

With fanless design and a compact and small form factor, NeoGate TA410 is very quiet when operating. And low power consumption makes NeoGate TA410 a very green and cost-effective product, perfectly suitable for any type of environment.

ta400 green

Ports4 FXO Ports
Telephony InterfacesRJ11
LAN1 10/100Mbps
ProtocolSIP (RFC3261), IAX2
TransportUDP, TCP, TLS, SRTP
CodecG.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice CapabilityITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF ModeRFC2833, SIP Info, In-band
FaxT.30
QoSDiffServ, ToS, 802.1 P/Q VLAN tagging
NetworkDHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network ProtocolFTP, TFTP, HTTP, HTTPS, SSH
Management ProtocolTR-069*
SignalingFXO Loop Start, FXO Kewl Start
Caller IDBELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect MethodsBusy Tone, Polarity Reversal
FXO ConnectivityProgrammable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
Power12V, 1A
Dimensions (L × W × H) (mm)200 × 137 × 25
Humidity10-90% non-condensing
Storage Range-20°C to 65°C, -4°F to 149°F
Operation Range0°C to 40°C, 32°F to 104°F
MountingDesktop, Wall-mount
CompatibilityInteroperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
