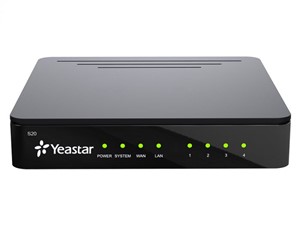

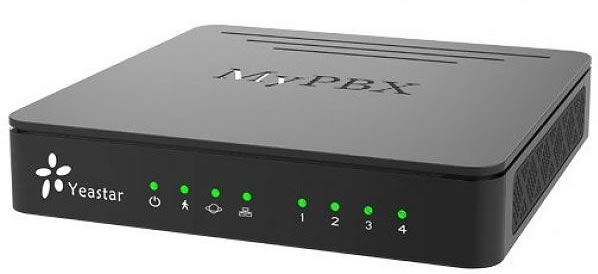

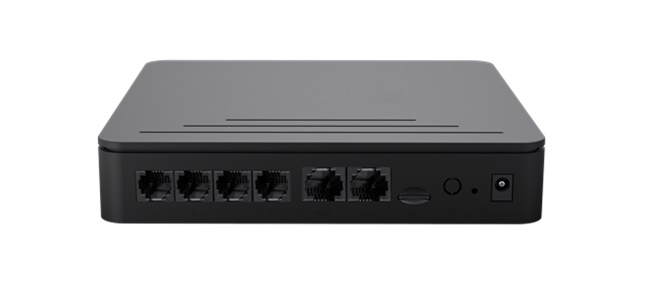

S Series S20 | S Series VOIP PBX | yeastar

Small business, home office, and mid-sized business will find a model that fits their business needs.
Call for pricing

Fast Installations

Save time with streamlined installation and maintenance tasks using our advanced auto-configuration, auto-detect and plug and play capabilities.

s-series-fast installations
s-series-connect-IP phone

Easy Configuration

Control and update your phone system with intuitive and graphical UI and point-and-click configuration using S-Series online Configuration Panel. Everything can be managed easily from any Internet-enabled device.

Live Demo
live demo

Scalable M.



Linkus Mobile Client

Coordinated with S-Series VoIP PBX, Linkus Mobile Client makes your Android or iOS mobile phone an office extension and links you and your colleagues and customers anywhere anytime.

Learn More



Reliable System

Powered by the latest processor technology, S-Series is a trust worthy telephone

system with one of the highest MTBF (Mean Time Between Failures) in the

industry. Based on Asterisk 13, S-Series is born to be powerful and constantly

meeting your needs.

reliable system

S-Series Models

Small business, home office, and mid-sized business will find a model that fits their business needs.

SpecificationsS20S50S100S300
Users2050100 (up to 200)300 (up to 500)
Max Concurrent Calls102530 (up to 60)60 (up to 120)
Max FXS/FXO Ports481624
Max BRI Ports481624
Max GSM/3G Channel1466
Max E1/T1/PRI Ports23
LAN1 × 10/100Mbps1 × 10/100/1000Mbps
WAN1 × 10/100Mbps1 × 10/100/1000Mbps
PowerDC 12V 1AAC 100-240V 50/60HZ 0.6A maxAC 100-240V 50/60HZ 1.8A max
Dimensions (L x W x H) (mm)160 x 160 x 30340 x 210 x 44440 x 252 x 44440 x 252 x 44
Weight0.3 kg1.48 kg2.5 kg2.6 kg
Power Consumption1.8-10.6 W2.1-18.5 W5.5-41.2 W6.2-59.1 W
EnvironmentOperation Range: 0°C to 40°C, 32°F to 104°F; Storage Range: -20°C to 65°C, -4°F to 149°F; Humidity: 10-90% non-condensing
MountingDesktop & Wall-mountRack-mount
