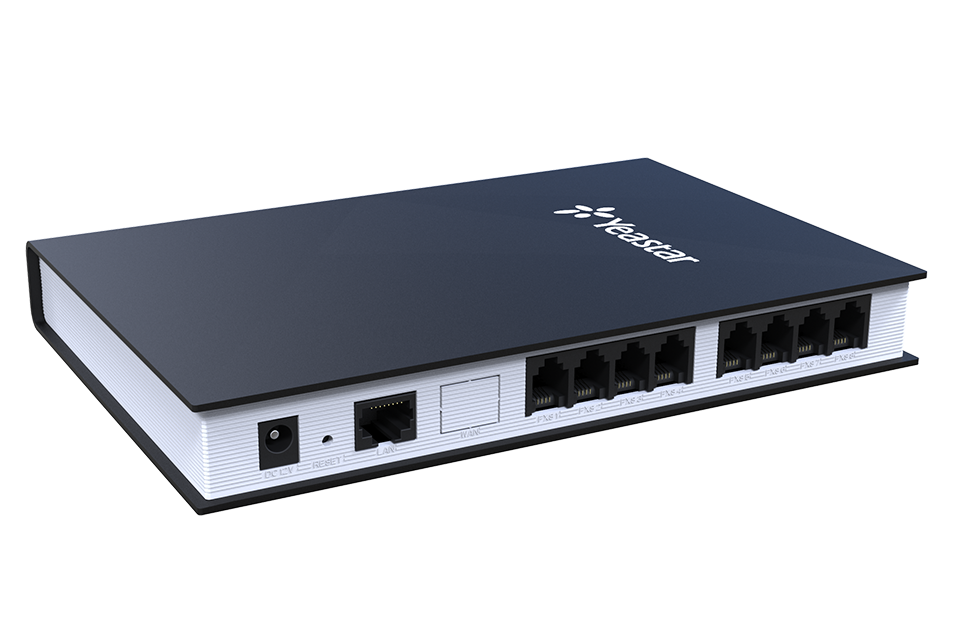

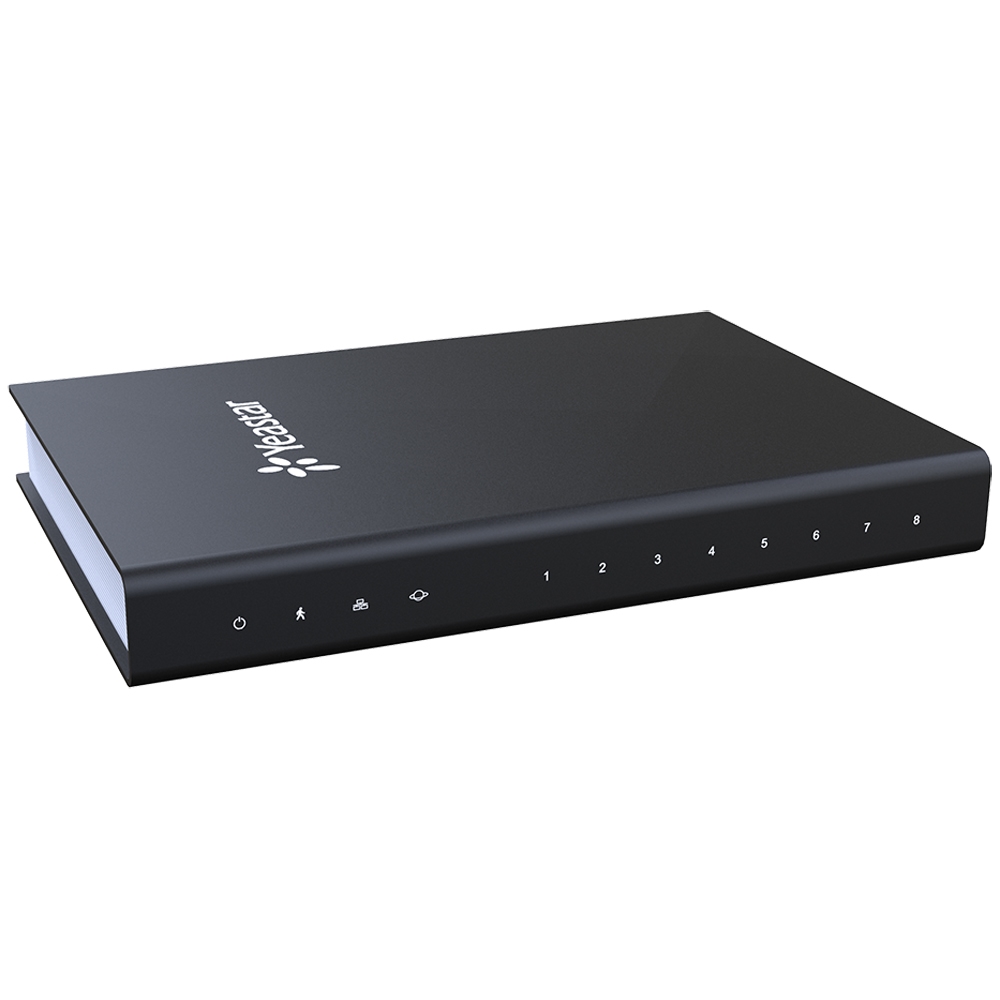

FXO Gateway TA810 | Yeastar

Yeastar TA810 allows to connect 8 PSTN lines or PABX extension ports for a wide range of IP applications.
Call for pricing
ta810 features
yeastar-people-gears

High Performance

TA810 is a stand-alone FXO VoIP gateway with carrier-grade features and reliability.

  • 8 FXO ports
  • Fully compliant with SIP and IAX2
  • Flexible calling rules
  • Superb voice compression with industry standard codecs
  • Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
  • Tested and certified with ElastixBroadSoft, and others

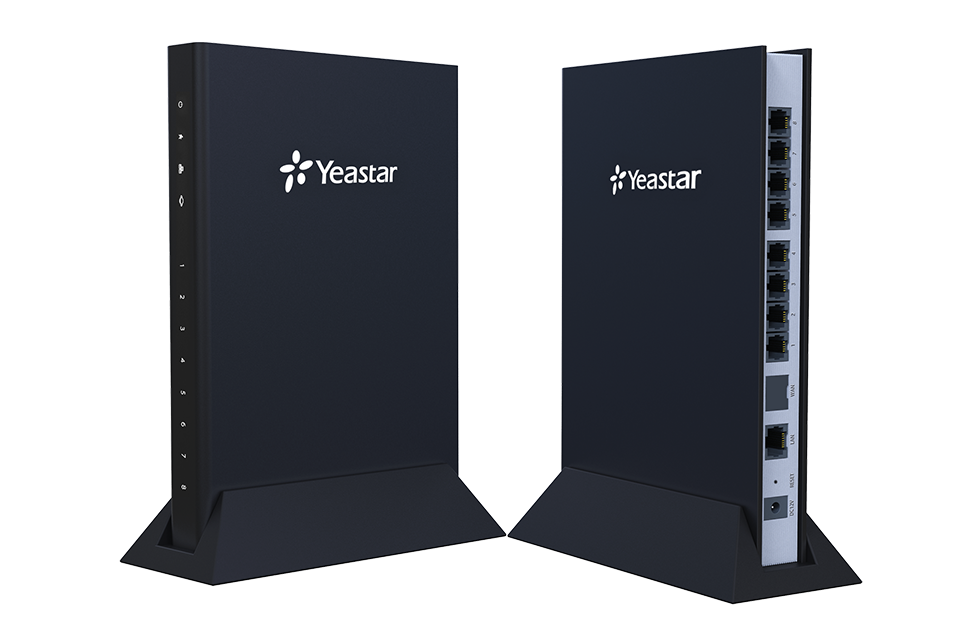

Flexible Installation

Featuring book-like design, TA810 is elegant in appearance and flexible in installation. It is a desktop device and also wall mountable. Place it on the table, it not only provides convenient connection of analog phones but also decorates your office pleasantly. Mount it on the wall, it saves you space and gives you more flexibility.

ta400 flex install
ta400 simple mgmt

Simple Management

TA810 has an easy-to-use Web interface allows super easy and straightforward configuration.

  • LED indicators present system and port status visually
  • User-friendly Web GUI and intuitive operations
  • Comprehensive call log, system logs, hardware logs, and debug logs

Green and Quiet

With fanless design and a compact and small form factor, TA810 is very quiet when operating. And low power consumption makes TA810 a very green and cost-effective product, perfectly suitable for any type of environment.

ta400 green

Ports8 FXO Ports
Telephony InterfacesRJ11
Network Interfaces1 10/100Mbps
ProtocolSIP (RFC3261), IAX2
TransportUDP, TCP, TLS, SRTP
Voice CodecG.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice CapabilityITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF ModeRFC2833, SIP Info, In-band
Fax over IPT.30
QoSDiffServ, ToS, 802.1 P/Q VLAN tagging
NetworkDHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network ProtocolFTP, TFTP, HTTP, HTTPS, SSH
ProtocolTR-069*
SignalingFXO Loop Start, FXO Kewl Start
Caller IDBELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect MethodsBusy Tone, Polarity Reversal
FXO ConnectivityProgrammable AC Impedance, Hangup Detection, Answer Detection, Caller ID detection
Power12V, 1A
Dimensions (L × W × H) (mm)200 × 137 × 25
Humidity10-90% non-condensing
Storage Range-20°C to 65°C, -4°F to 149°F
Operation Range0°C to 40°C, 32°F to 104°F
MountingDesktop, Wall-mount
CompatiblityInteroperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
