RB 711-2Hn | RouterBoard | Mikrotik

Call for pricing

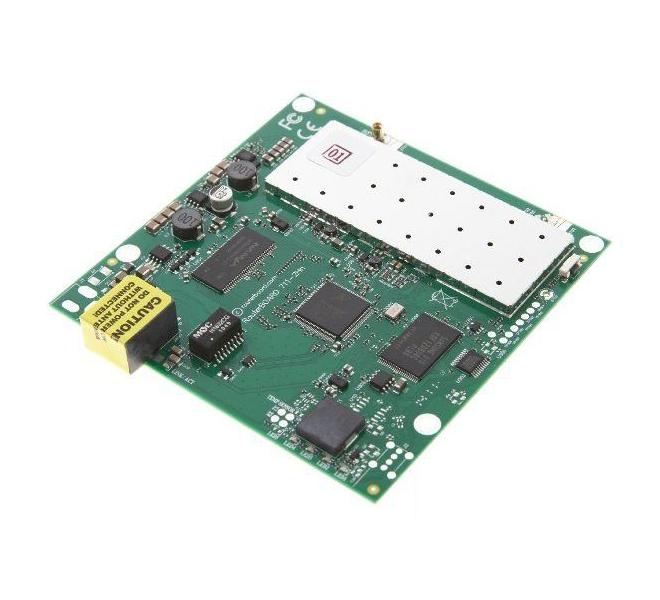

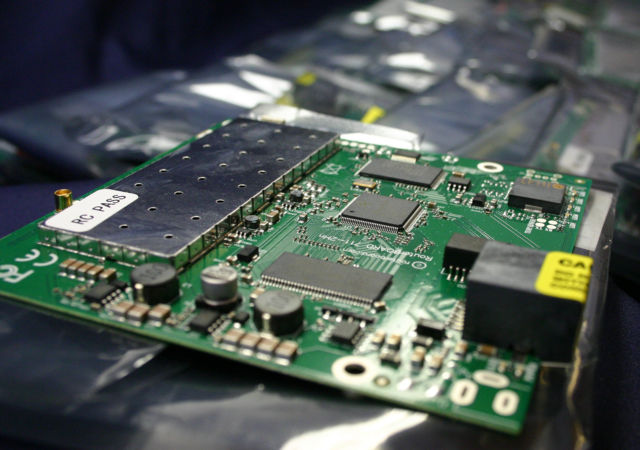

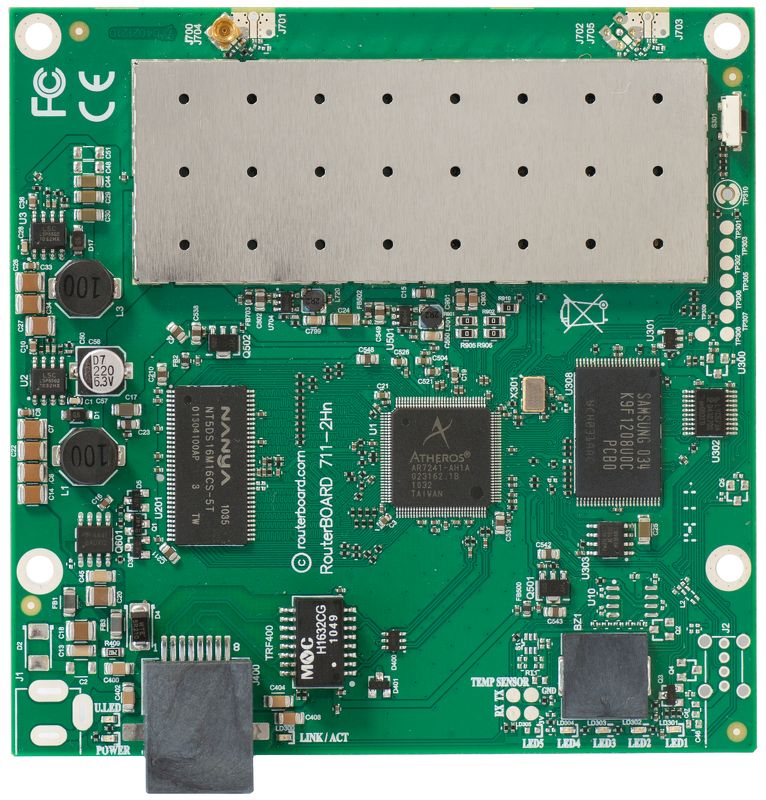

The RB711 is a small CPE type RouterBOARD wireless router with an integrated 2GHz 802.11b/g/n wireless card.

RB711 includes RouterOS - the operating system, which can be a router, firewall, bandwidth manager, a CPE and more - all at the same time.

This device has one MMCX connector, allowing single chain connectivity. The integrated wireless card is capable of up to 27dBm transmit power output.

Built in 16kV ESD protection on RF port.

Supported frequency:
2Ghz band: 2192-2539Mhz

Product specifications

Product codeRB711-2Hn
CPU nominal frequency400 MHz
CPU core count1
Size of RAM32 MB
10/100 Ethernet ports1
10/100/1000 Ethernet ports0
MiniPCI slots0
MiniPCI-e slots0
Wireless chip modelYes
Wireless standards802.11b/g/n
Number of USB ports0
Memory Cards0
Power JackNo
802.3af supportNo
PoE in8-30V
Voltage MonitorNo
CPU temperature monitorNo
PCB temperature monitorNo
Operating temperature range-30 .. +65C
License levelLevel3
Current MonitorNo
SFP ports0
