MS-C5364-PC | Mini Series | Milesight

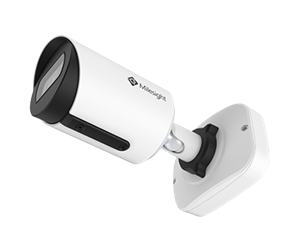

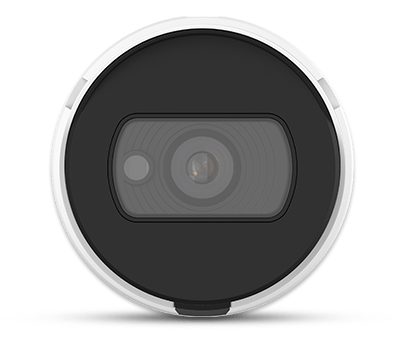

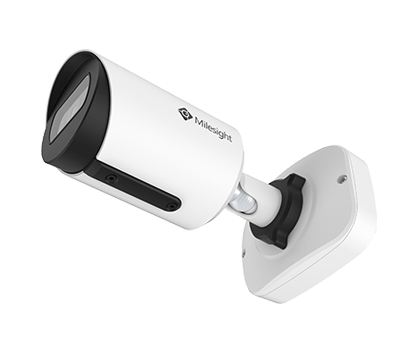

5MP AI Vandal-proof Mini Bullet Network Camera
Manufacturer: Milesight Technology
Call for pricing
CameraName5MP AI Vandal-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm/ 4mm/ 6mm @F1.6
Field of ViewH105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 30m
S/N>55dB
VideoMax. Image Resolution2592x1944
Frame Rate60Hz: [email protected](2592x1944), [email protected](2048x1536),[email protected](1920x1080, 1280x960, 1280x720, 704x576)50Hz: [email protected](2592x1944), [email protected](2048x1536),[email protected](1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: [email protected](704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)50Hz: [email protected](704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: [email protected](1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)50Hz: [email protected](1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, Up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40?~60?
Working Humidity0~90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption5W MAX, 7W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight610g(Junction Box Version) / 450g(Cable Out Version)
Dimensions97mmX74mmX180mm(Junction Box Version) / F64mmX160mm(Cable Out Version)
Warranty3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • P - PoE Supported
  • C - AI Series
