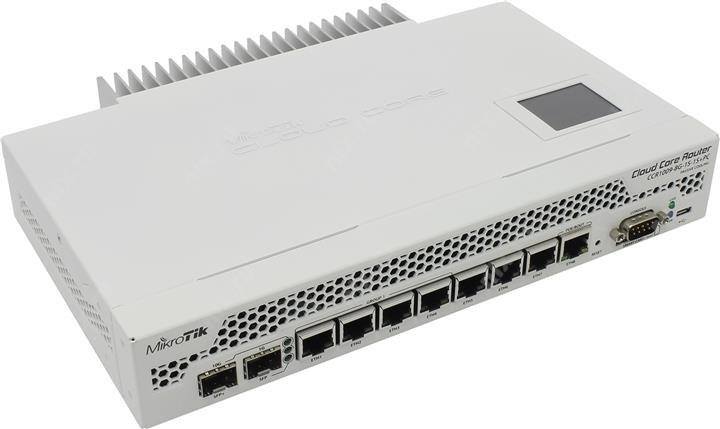

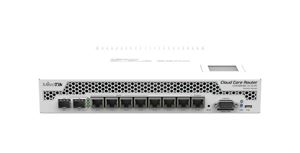

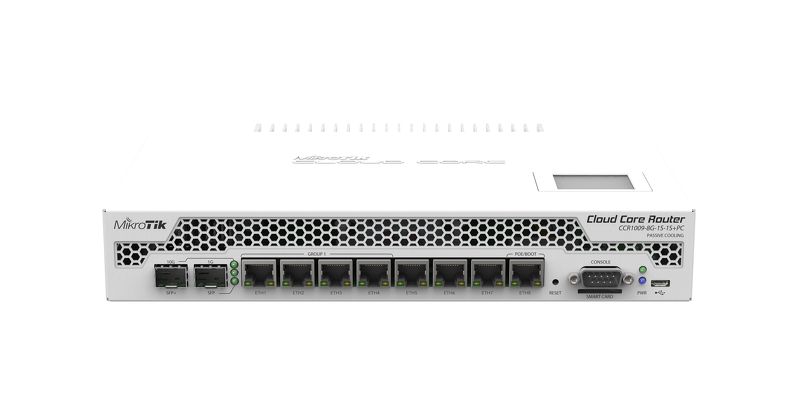

CCR1009-8G-1S-1S+PC | RouterBoard | Mikrotik

1U rackmount, 8x Gigabit Ethernet, 1xSFP cage, 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, passive cooling desktop enclosure, SmartCard slot, RouterOS L6, PSU
Call for pricing

Our popular 9-core Cloud Core Router is now available in a new passive cooling enclosure.

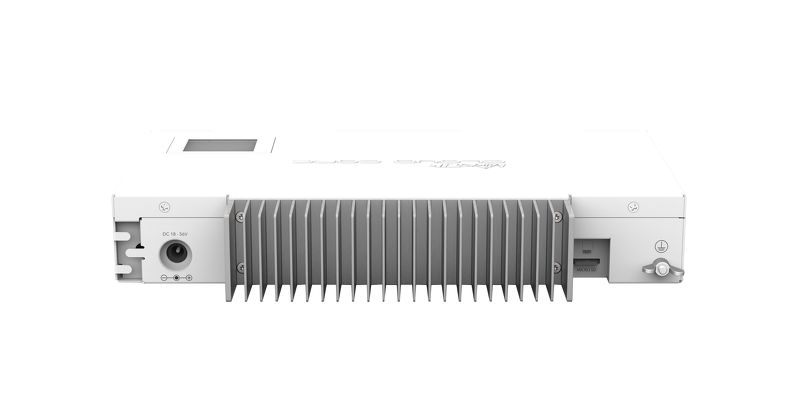

This CCR1009 unit is equipped with two heat-pipes and a specially designed heat-sink, so its completely silent.

The unit is powered by an external 24v 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

The device comes with a desktop enclosure, but special rackmount brackets are also included, so it can be used either on desk or in rack.

Product specifications

Details
Product codeCCR1009-8G-1S-1S+PC
CPU nominal frequency1 GHz
CPU core count9
Size of RAM2 GB
ArchitectureTILE
10/100 Ethernet portsNone
10/100/1000 Ethernet ports8
MiniPCI slots0
MiniPCI-e slots0
Number of USB ports1
Power Jack1
802.3af supportNo
PoE inYes
PoE outNo
Supported input voltage14 V - 57 V
Voltage MonitorYes
PCB temperature monitorYes
CPU temperature monitorYes
Dimensions272x190x47mm
Operating SystemRouterOS
Operating temperature range-20C .. +60C
License level6
Current MonitorYes
CPUTLR4-00980CG-10CE-A3a
Max Power consumption30W
SFP ports1
SFP+ ports1
USB slot typemicroUSB type AB
Serial portRS232
