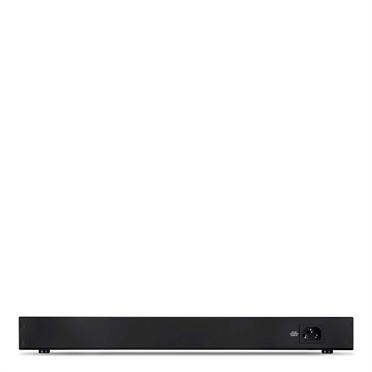

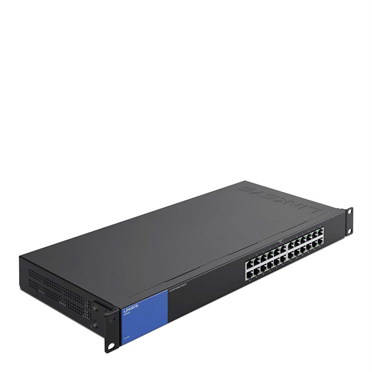

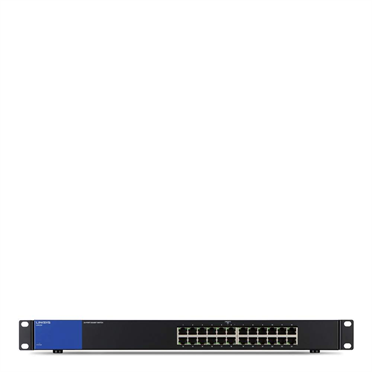

LGS124 24-PORT | SWITCHES | Linksys

LINKSYS LGS124 24-PORT BUSINESS GIGABIT SWITCH Upgrade the data paths of your local wired network to information superhighways with 24-port desktop Gigabit switches. Learn More Wired connection speed up to 1000 Mbps 24 Gigabit Ethernet auto-sensing ports Easy plug & play connection QoS Meets EEE (Energy Efficient Ethernet) 802.3az standard
Manufacturer: Linksys
Call for pricing
  • Model Name:
    LGS124
  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab
    • IEEE 802.3az
  • Ports:
    24 Gigabit Ethernet (10/100/1000) Ports
  • LEDs:
    Link, speed, and activity indicators
  • Performance:
    • Full line rate and forwarding rate of 64B frame at:
    • 1.488Mpps for 1000M port
    • 0.1488Mpps for 100M port
    • 0.01488Mpps for 10M port
  • MAC Address Table Size:
    8,000 entries
  • Bandwidth:
    48 Gbps (non-blocking)
  • Fans:
    None
  • Minimum System Requirements:
    Connected devices need Ethernet connectivity and Ethernet cables
  • Dimensions (LxWxH):
    440 x 200 x 44 mm (171.6 x 78 x 17.16 in.)
  • Weight:
    2.374 kg (5.17 lbs)
  • Power:
    110–240 VAC, 50/60 Hz
  • Power Consumption:
    4.39 W / 14.16 W
  • Power Saving:
    Cable connected detection, sleep mode
  • Power Supply:
    Internal
  • Operating Temperature:
    0–50°C (32–122°F)
  • Storage Temperature:
    -20–70°C (-4–158°F)
  • Operating Humidity:
    10–90% (non-condensing)
  • Storage Humidity:
    10–90% (non-condensing)
  • Mounting:
    Rack
  • Quality Of Service:
    802.1p and DSCP
  • Regulatory Compliance:
    FCC Class A, CE
  • Warranty and Support:
    Limited Lifetime
