DIGIMATIC DMR2A REMOTE CAPACITANCE LEVEL PROBE | LEVEL CONTROL RANGE | Synatel

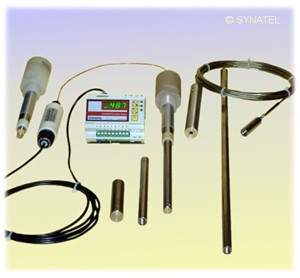

DIGIMATIC DMR2A REMOTE CAPACITANCE LEVEL PROBE is a capacitance level control system, consists of 3 parts: Control unit DRC205(A), signal Transverter DCT2AA. Probe head/probe, type depends upon application/temperature. RPP1(polyproylene) upto 125°C, RPK1 (PEEK) upto 250°C. LED display shows calibration & run mode readings. Power shield compensator, prevents false signalling due to material build-up on probe rod. The DMR2 is ideal for all level control application where vibration and/or temperature prevent the use of a fully self contained controller. ATEX 1D (see conditions in specification) Explosive Dust hazard Use.
Manufacturer: Synatel
Call for pricing
Capacitance level control system, consists of 3 parts: Control unit DRC105(A), signal Transverter DCT2, probe head/probe. Type depends upon application/temperature. RPP1(polyproylene) upto 125°C, RPK1 (PEEK) upto 250°C. LED display shows calibration & run mode readings. Power shield compensator, prevents false signalling due to material build-up on probe rod. The DMR2 is ideal for all level control application where vibration and/or temperature prevent the use of a fully self contained controller.
Supply
110/230V ac, 24V dc
Load
1.5A max, 50 mA dc
Ambient Temp.
-10°C to +50°C for DRC105(A). Probe head depends upon type used (upto 250°C)
Probe Heads

RPP1: Polypropylene suitable upto 125°
RPK1:PEEK suitable upto 250°C..........

Output
SPCO relay rated @ 2.5A 240V ac non-inductive
Output Mode
Switch selectable for normally ON (high level),
or normall off (low level)
Calibration
Membrane pushbuttons with LED display. Automatic calibration with full manual override
Indicators
Digital display for calibration and run mode settings, plus power, timer and output LED's
Mounting
1" BSP for RPP1/RPK1, DIN rail for DRC105(A)
Protection
DRC105(A) - IP40, IP65 - all other parts
Compensator
Power shield compensates for material build up between probe and vessel wall (earth/ground). Prevents false signalling. Ideal for sticky or viscous materials
Code/Weight

DRC105(A) - 275g
DCT2 - 120g
RPK1/RPP1 - 410g
plus probe rod.

Approval

ATEX 1D Ex td A20 (Ex iaD) 20 T125°C
(Request Certificate for full details).
