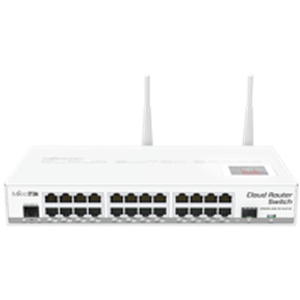

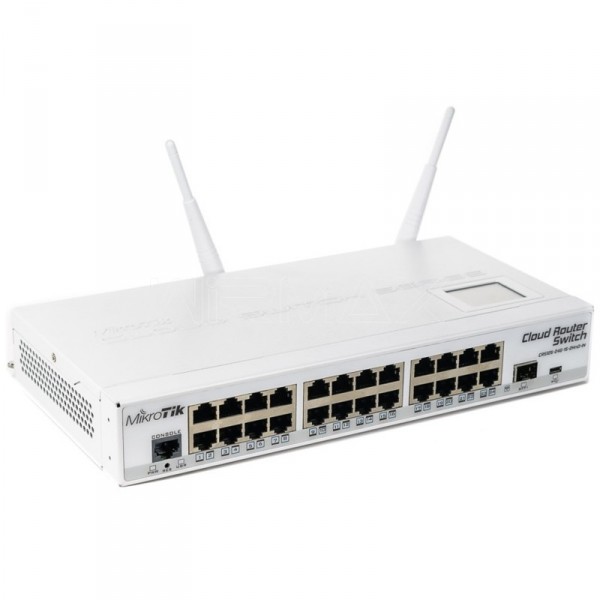

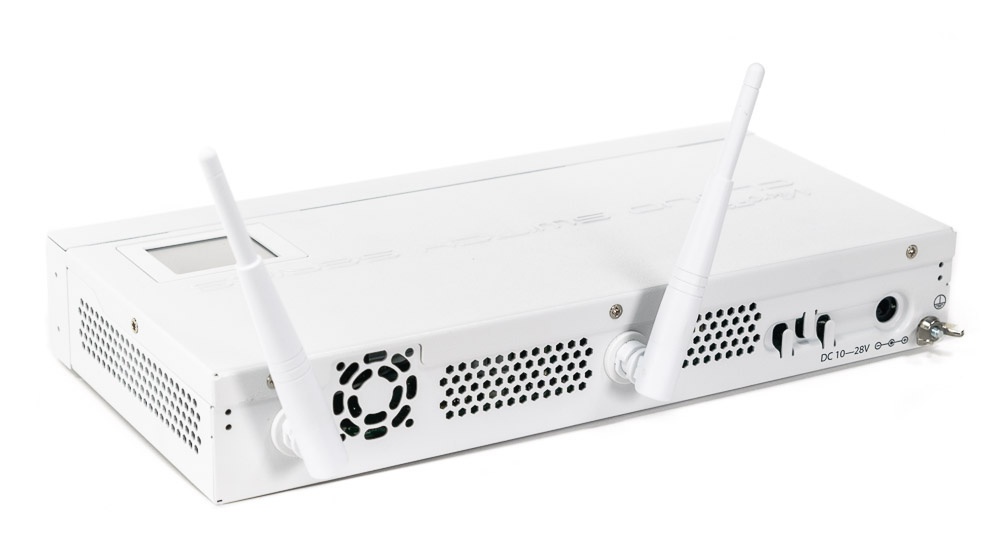

24x Gigabit Ethernet layer 3 Smart Switch, 1x SFP cage, LCD, 1000mW 802.11b/g/n Dual Chain wireless, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5

Manufacturer: MikroTik Routers and Wireless

Be the first to review this product

Call for pricing

Quantity:

Description
Download

Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.

Perfect SOHO gateway router, switch, 11n AP all in one box
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
• 1000mW high power 2.4GHz 11n wireless AP

Product specifications

Details
Product code	CRS125-24G-1S-2HnD-IN
CPU nominal frequency	600 MHz
SFP DDMI	Yes
CPU core count	1
Size of RAM	128 MB
Architecture	MIPS-BE
10/100 Ethernet ports	0
10/100/1000 Ethernet ports	24
MiniPCI slots	0
MiniPCI-e slots	0
Wireless chip model	AR9344-DC3A-R
Wireless standards	802.11b/g/n
Number of USB ports	1
Power Jack	1
Supported input voltage	8 V - 28 V
PoE in	Yes
PoE out	No
Voltage Monitor	Yes
CPU temperature monitor	No
PCB temperature monitor	Yes
Dimensions	285x145x45mm
Operating System	RouterOS
Operating temperature range	-35C to +65C
License level	5
Antenna gain DBI	4
Current Monitor	No
CPU	AR9344-DC3A-R
Max Power consumption	19W
SFP ports	1
SFP+ ports	0
USB slot type	microUSB type AB
Number of chains	2
Serial port	RJ45
