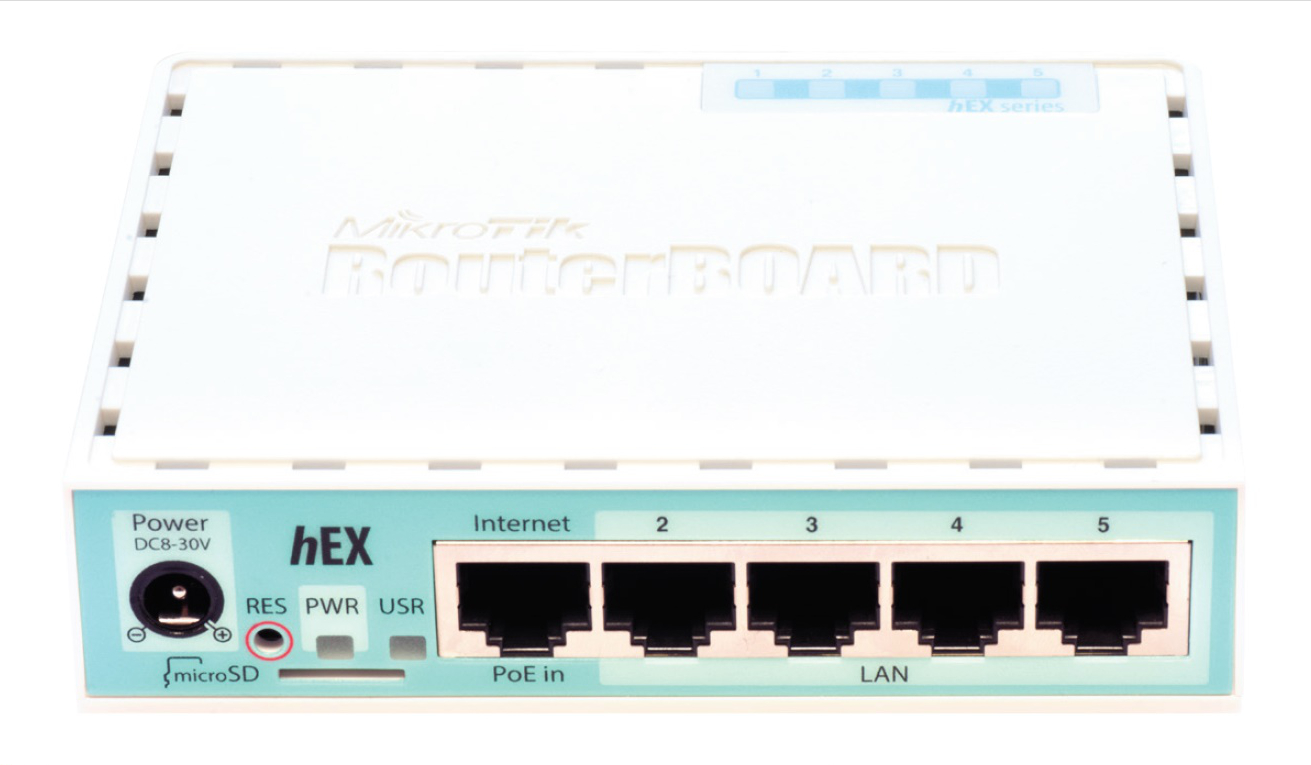

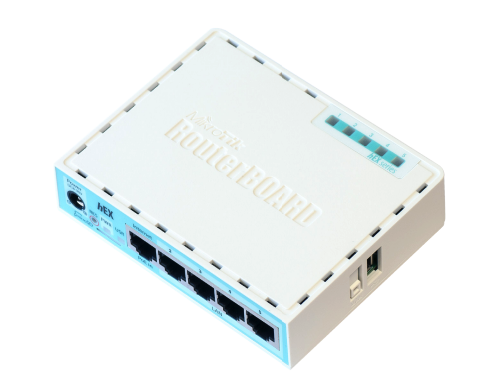

hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports.
IPsec Hardware encryption (~470Mbps) and dude server package is supported, microSD slot on it also provides improved r/w speed for database storage on microSD card.
|CPU nominal frequency||880 MHz|
|CPU core count||2|
|Size of RAM||256 MB|
|10/100/1000 Ethernet ports||5|
|Number of USB ports||1|
|Supported input voltage||8 V - 30 V|
|PCB temperature monitor||Yes|
|Tested ambient temperature||-30 + 70 C|
|Max Power consumption||5W|
|USB slot type||USB type A|
|USB Power Reset||Yes|
|Storage size||16 MB|
|CPU Threads count||4|
Block Diagram with disabled switchingOpen Block Diagram with enabled switchingOpen RouterOS software manualOpen
