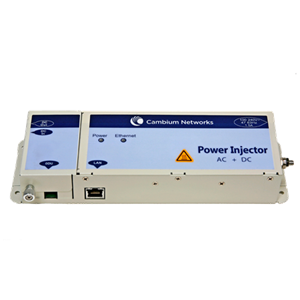

Cambium AC+DC Enhanced Power Injector

The power injector is an indoor unit that connects to the PSU interface on the ODU and also to the network equipment using Cat5e cable with RJ45 connectors.
Manufacturer: Cambium Networks
Call for pricing

The unit is also plugged into an AC or DC power source so that it can inject Power-over-Ethernet (PoE) into the ODU. One power injector is required at each end of a link. You have the following two options:

  • AC Power Injector: This power injector accepts AC input only and is a lower-cost unit that supports 32° to 104° F (0° to 40° C) temperature ranges.
  •  AC+DC Power Injector: This is an enhanced power injector that accepts either 100-240VAC or 48VDC input. It also tolerates a greater temperature range (-40° to 140° F or -40° to 60° C) and can power a device such as a video camera or wireless access point on the Auxiliary port of the ODU. The AC+DC injector can also be configured in redundant configurations for high availability requirements.
