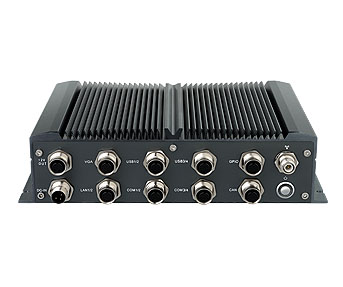

VC-5224-M12 Mine Car Computer

Intel® E3845 1.91 GHz (Quad Core), 4 COM Ports
Manufacturer: Darveen
Call for pricing
Features
? Intel® E3845 1.91 GHz (Quad Core)
? M12 connectors secure highly reliable connectivity
? Flexible expansion capability for WiFi, Bluetooth, LTE, GPS,CAN2.0B
? 4 x COM, 2 x LAN, 4 x USB, 8 x GPIO
? 9-36 V DC Power Input

Parameters

System
ProcessorIntel® E3845 1.91 GHz (Quad Core)
Memory4G DDR3 Onboard
GraphicIntel® Gen7 Intel Graphics with DX11*, OGL3.2
Operating SystemWindows 7/8, WS7E, WS8
Storage
Type1 x 2.5" SATA HDD / SSD, 1 x mSATA
RF Communication
3G/4GGSM/LTE (Optional)
WLAN802.11a/b/g/n/ac  (Optional)
BluetoothBluetooth 4.0  (Optional)
GPSGPS/Beidou  (Optional)
I/O Connectors
COM4 x RS-232
USB4 x USB 2.0
LAN2 x Intel i210-IT for GbE
Video1 x VGA
Expansion1 x Full-size mini PCIe
Qualification
CertificationsCE, FCC Class A
Environmental
Operating Temp.-20 ~ 60?(SSD)
Storage Temp.-40 ~ 85?
Relative Humidity10 ~ 95%
Power Management
Power InputDC 9-36 V
Mechanical
HousingAluminum alloy
Mounting Wall-mount
Dimension (W x H x D)233 x 158 x 58.9 mm
Weight1.9kg
