  3. U7 Outdoor | U7-Outdoor

U7 Outdoor | U7-Outdoor

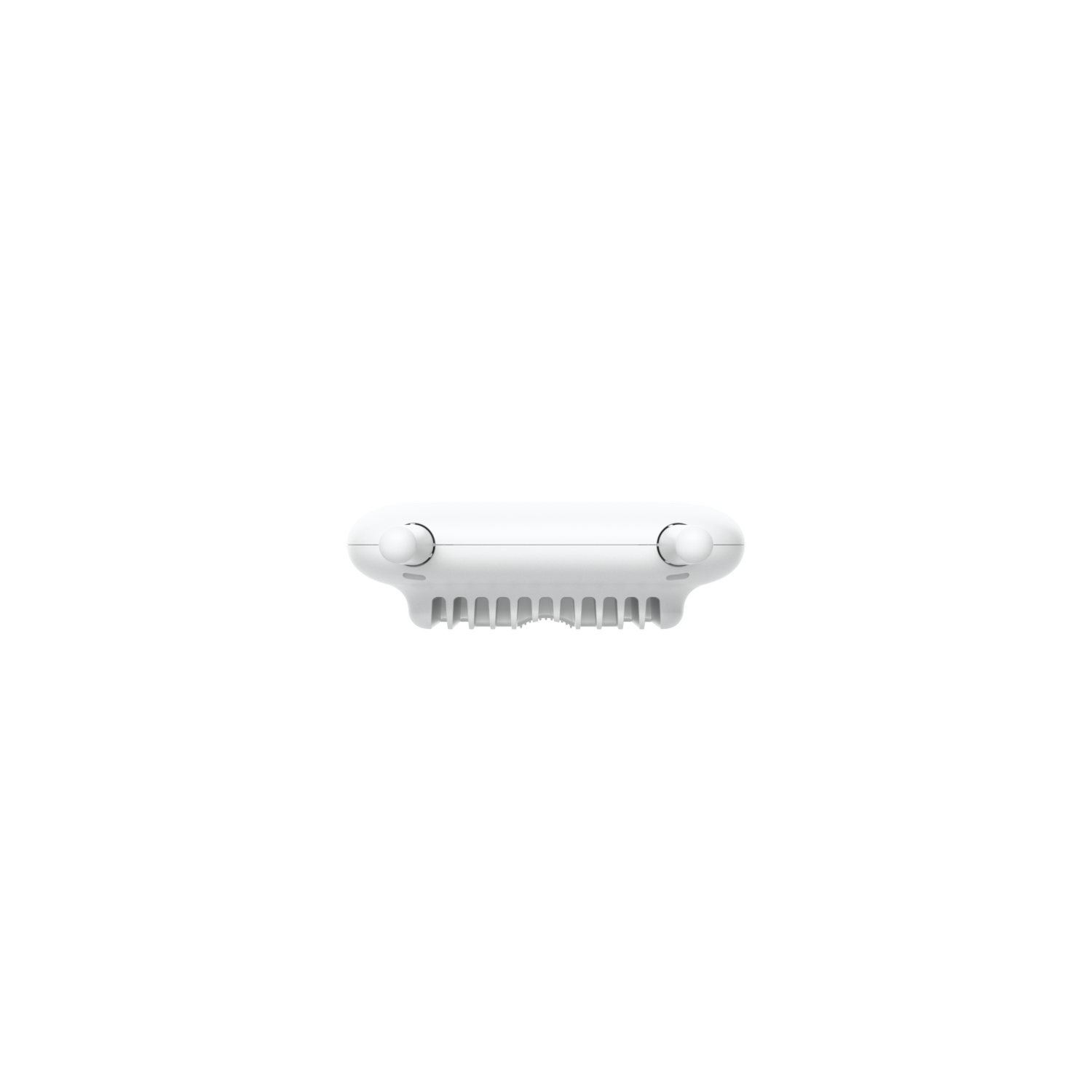

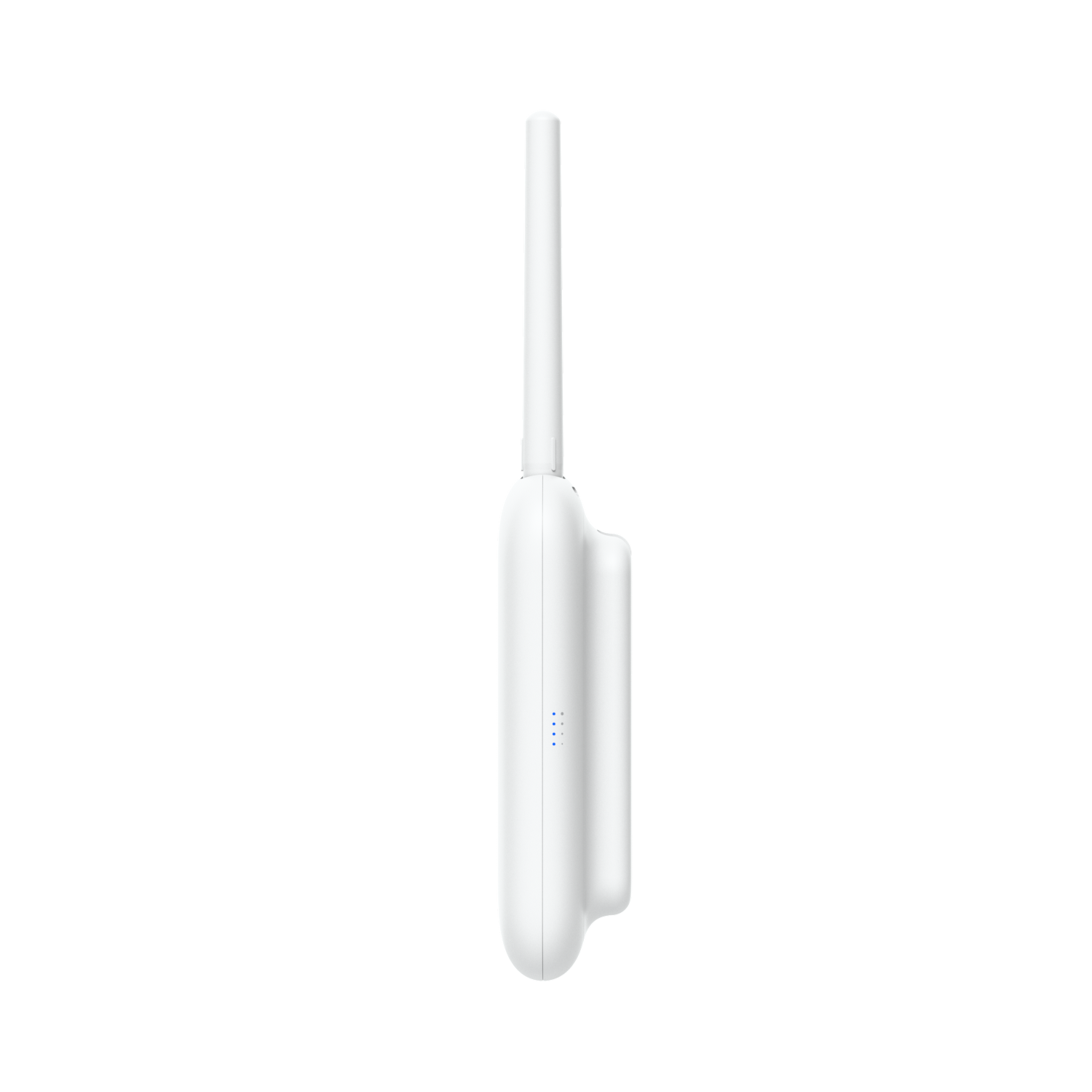

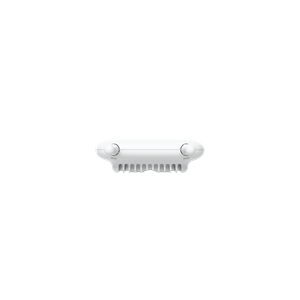

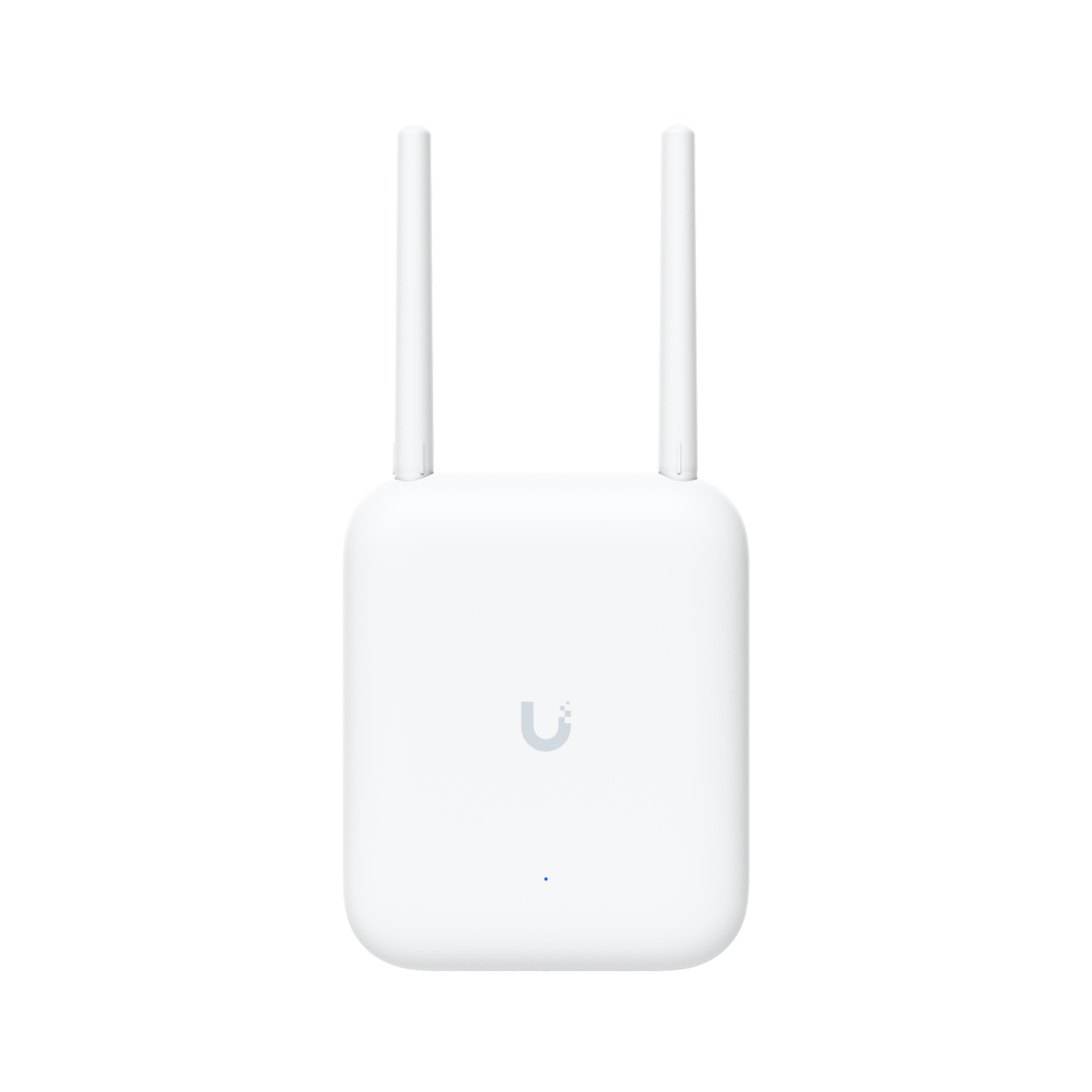

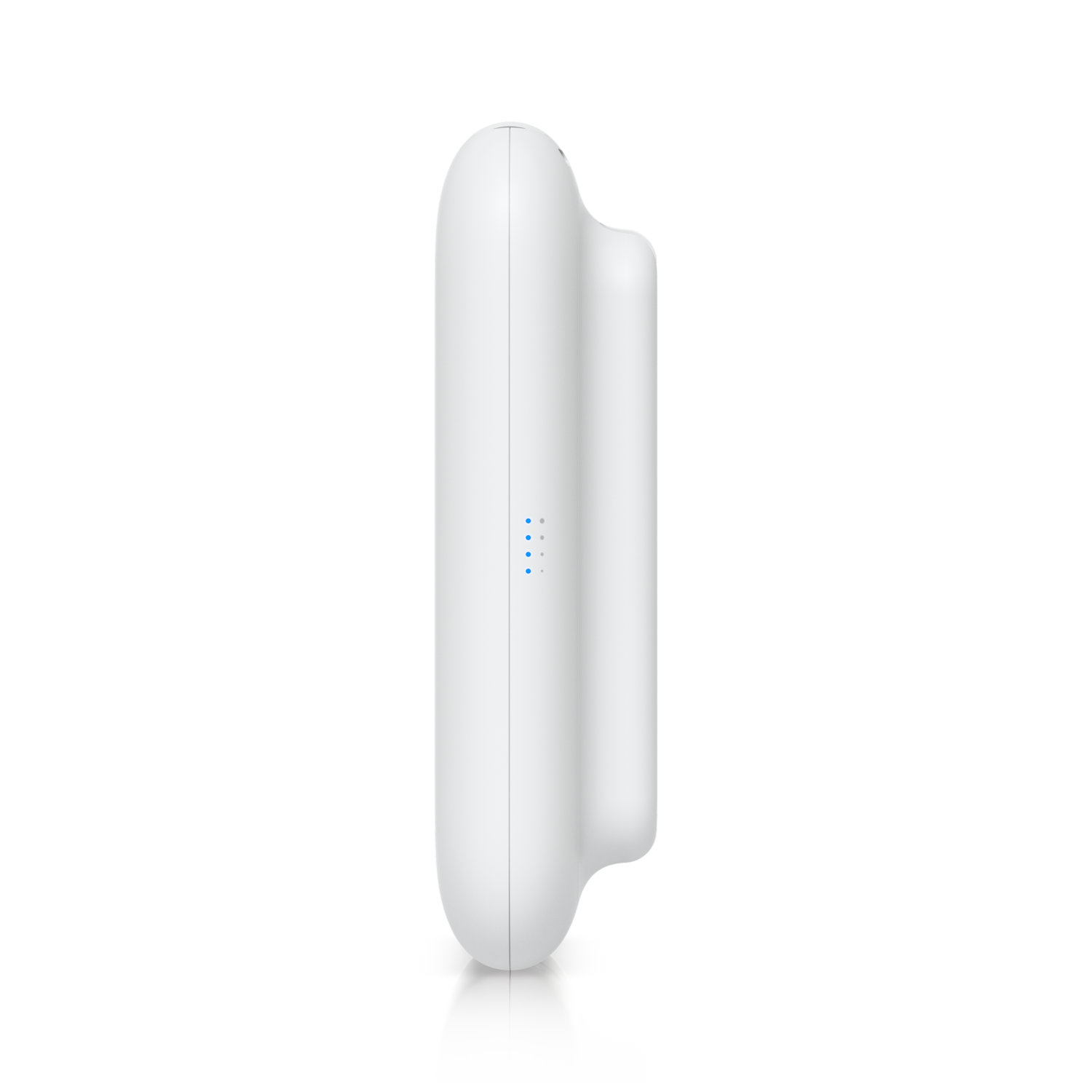

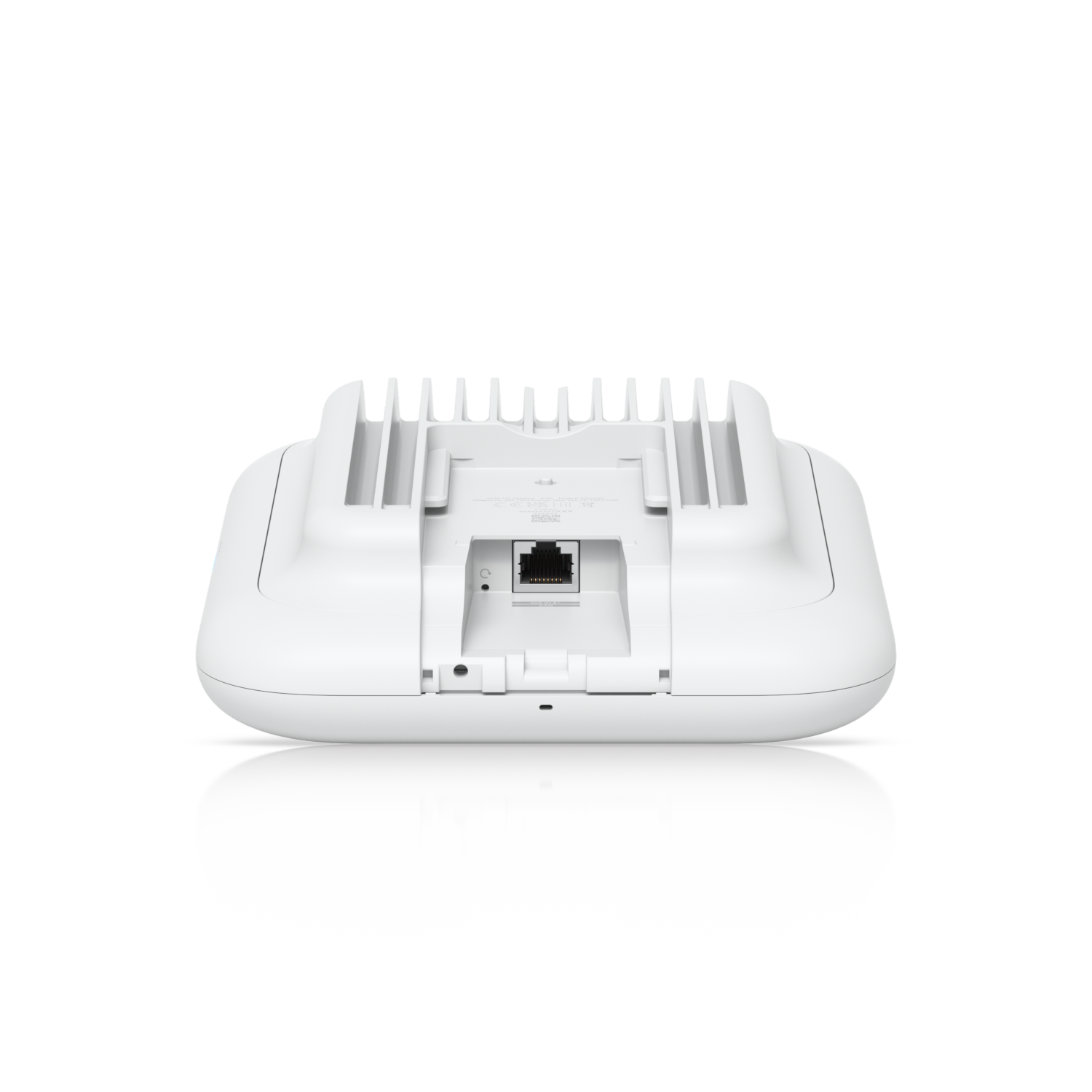

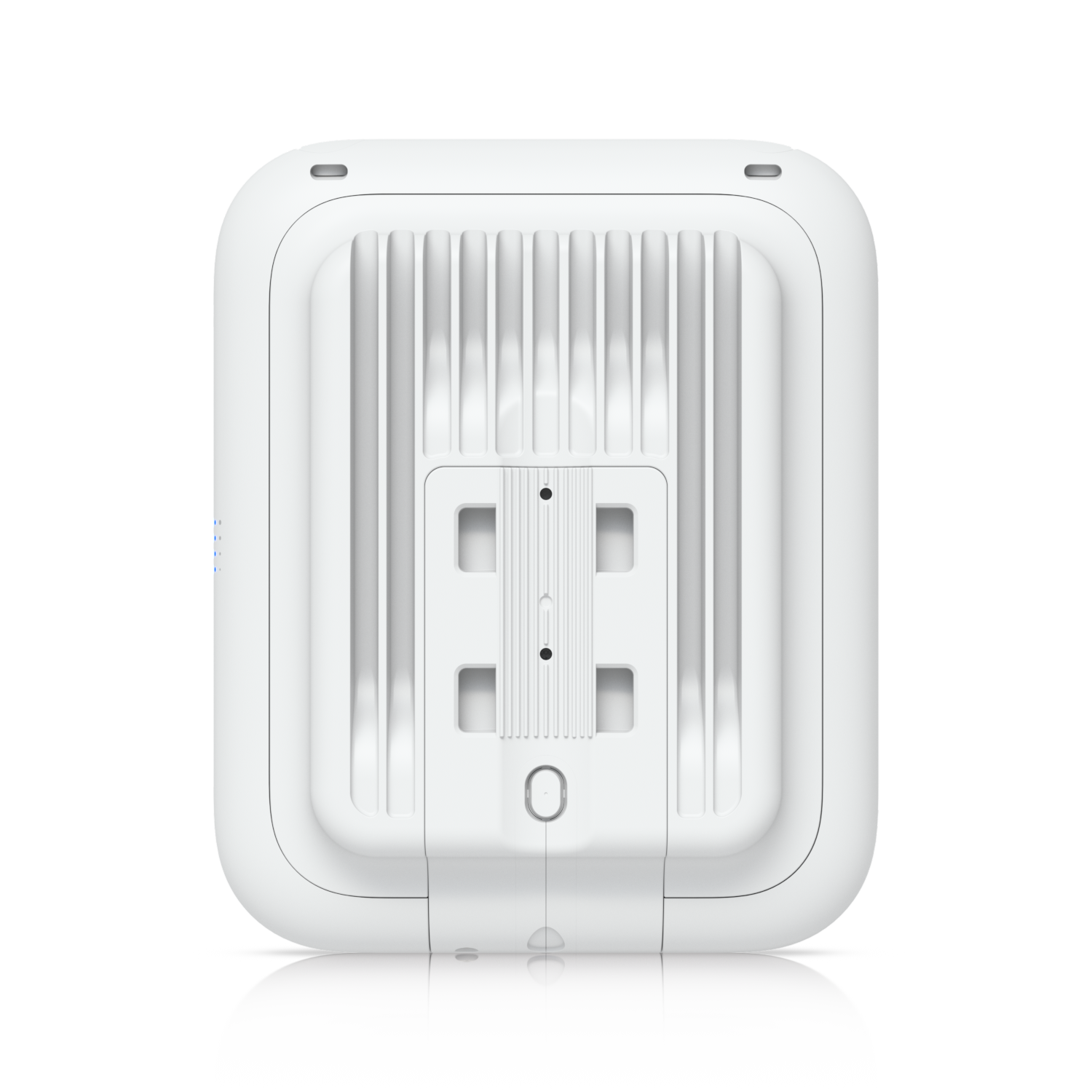

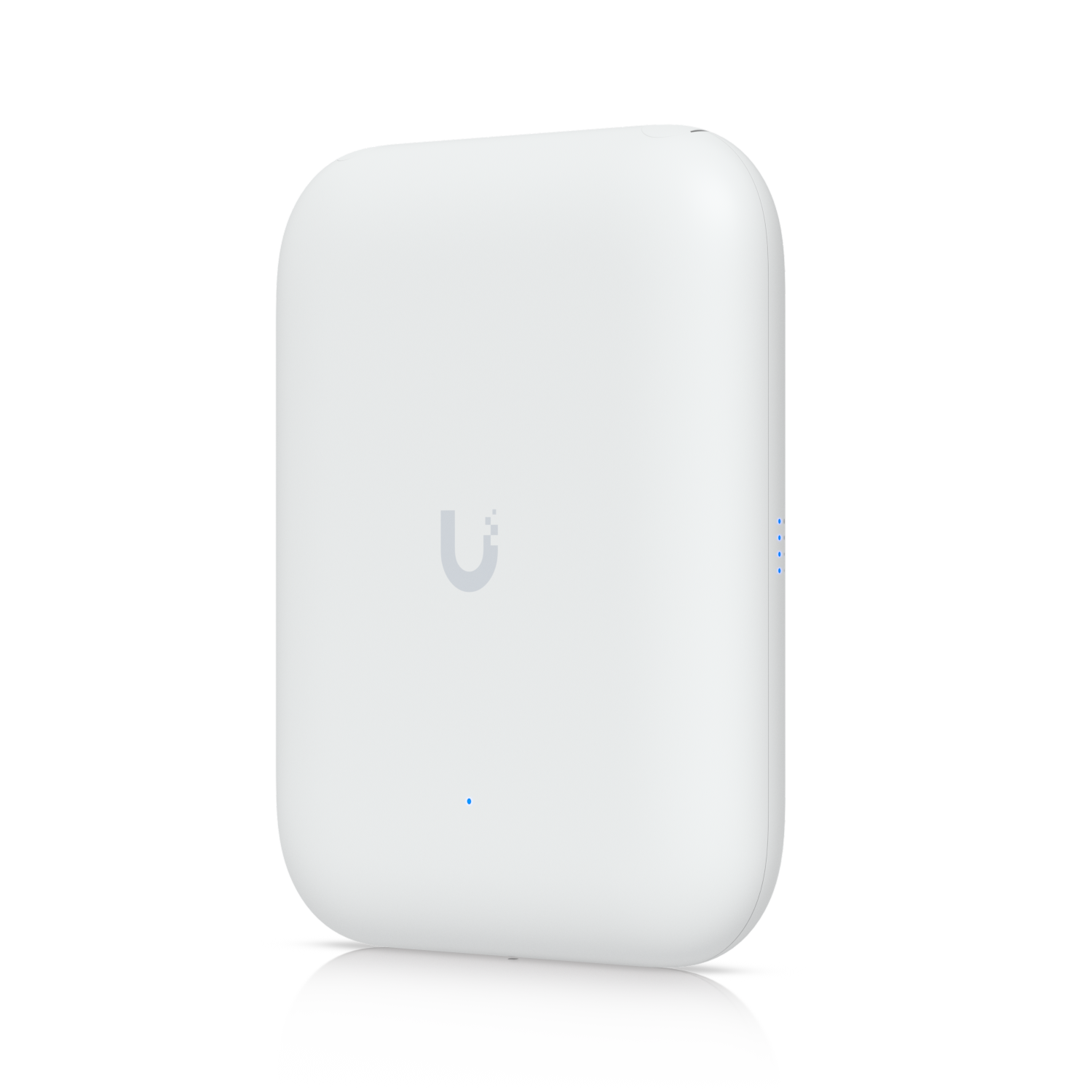

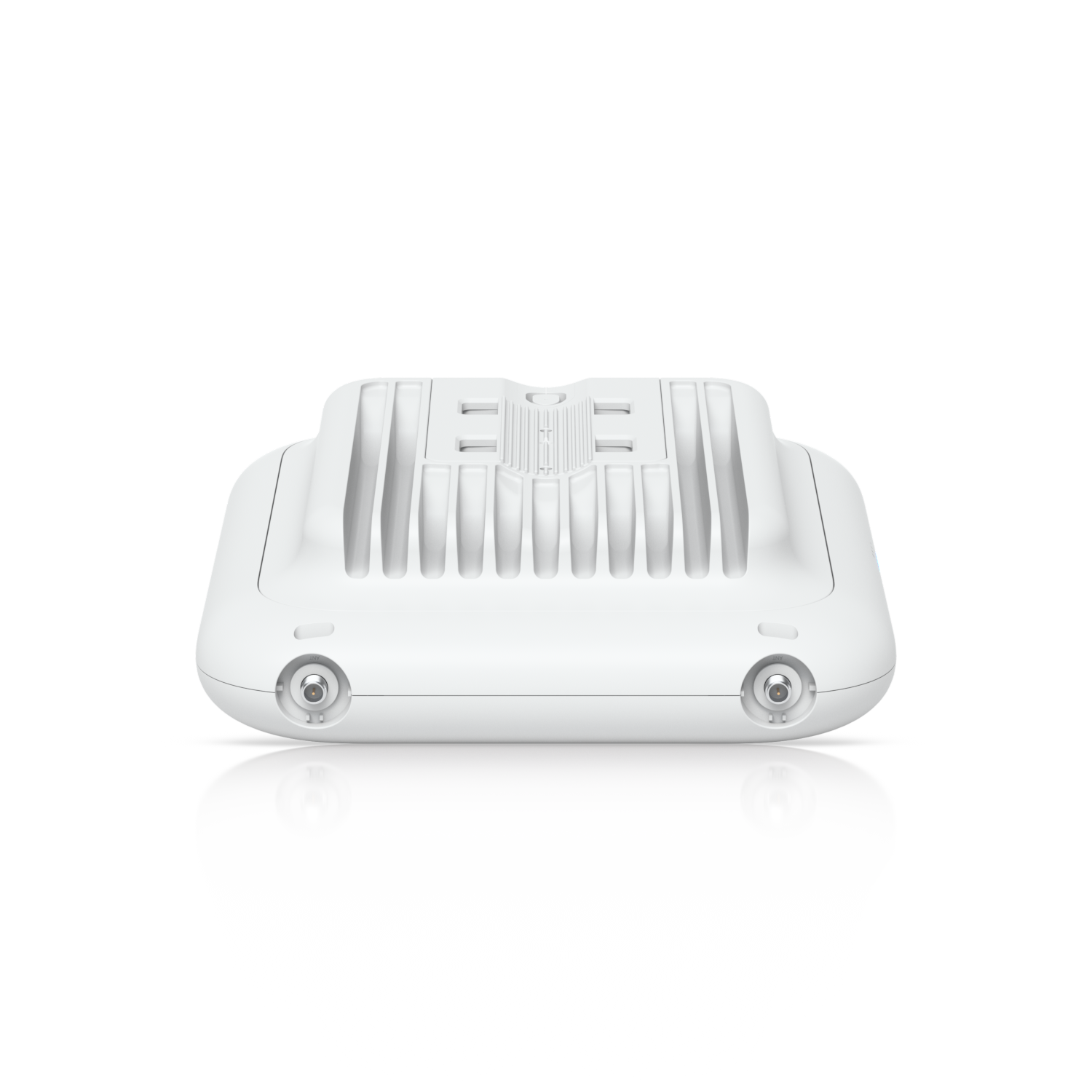

Picture of U7 Outdoor | U7-Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Manufacturer: Ubiquiti Networks
Be the first to review this product
Call for pricing

Dimensions
170 x 208 x 54.5 mm(6.7 x 8.2 x 2.1")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
250+
Uplink
2.5 GbE
Mounting
Wall, Pole(Mounts Included)
Weatherproofing
IPX6
Power Method
PoE+
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
Directional internal: 12.5 dBi, 45° x 45°External omni: 4 dBi, 360° x 30°
2.4 GHz
Directional internal: 8 dBi, 90° x 90°External omni: 3 dBi, 360° x 30°
Max. TX Power
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing
?
Band Steering
?
802.11v BSS Transition Management
?
802.11r Fast Roaming
?
802.11k Radio Resource Management (RRM)
?
Advanced Radio Management
?
Passpoint (Hotspot 2.0)
?
Captive Hotspot Portal
Custom Branding Landing Page
?
Voucher Authentication
?
Payment-Based Authentication
?
External Portal Server Support
?
Password Authentication
?
Guest Network Isolation
?
Private Pre-Shared Key (PPSK)
?
WiFi Speed Limiting
?
Client Device Isolation
?
WiFi Schedules
?
RADIUS over TLS (RadSec)
?
Dynamic RADIUS-assigned VLAN
?
Max. Power Consumption
19W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 1/2.5 GbE RJ45 port
Weight
1.2 kg (2.6 lb)
Wind Loading
74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter
1–2.36" (25–60 mm)
Antennas
(1) Directional internal antenna(2) External omni antennas(2) RP-SMA connectors for external antenna
Antenna beamwidth
5 GHz
45°
2.4 GHz
90°
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Polycarbonate, SGCC steel
LEDs
System
(1) Power: White/Blue(1) System: White/Blue(4) Mesh Signal: Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant
?
Certifications
CE, FCC, IC, Anatel
Operating Frequency
US/CA:2400 - 2472 MHzU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHzWorldwide:2400 - 2483.5 MHz5150 - 5725 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 8.2.93 and later
