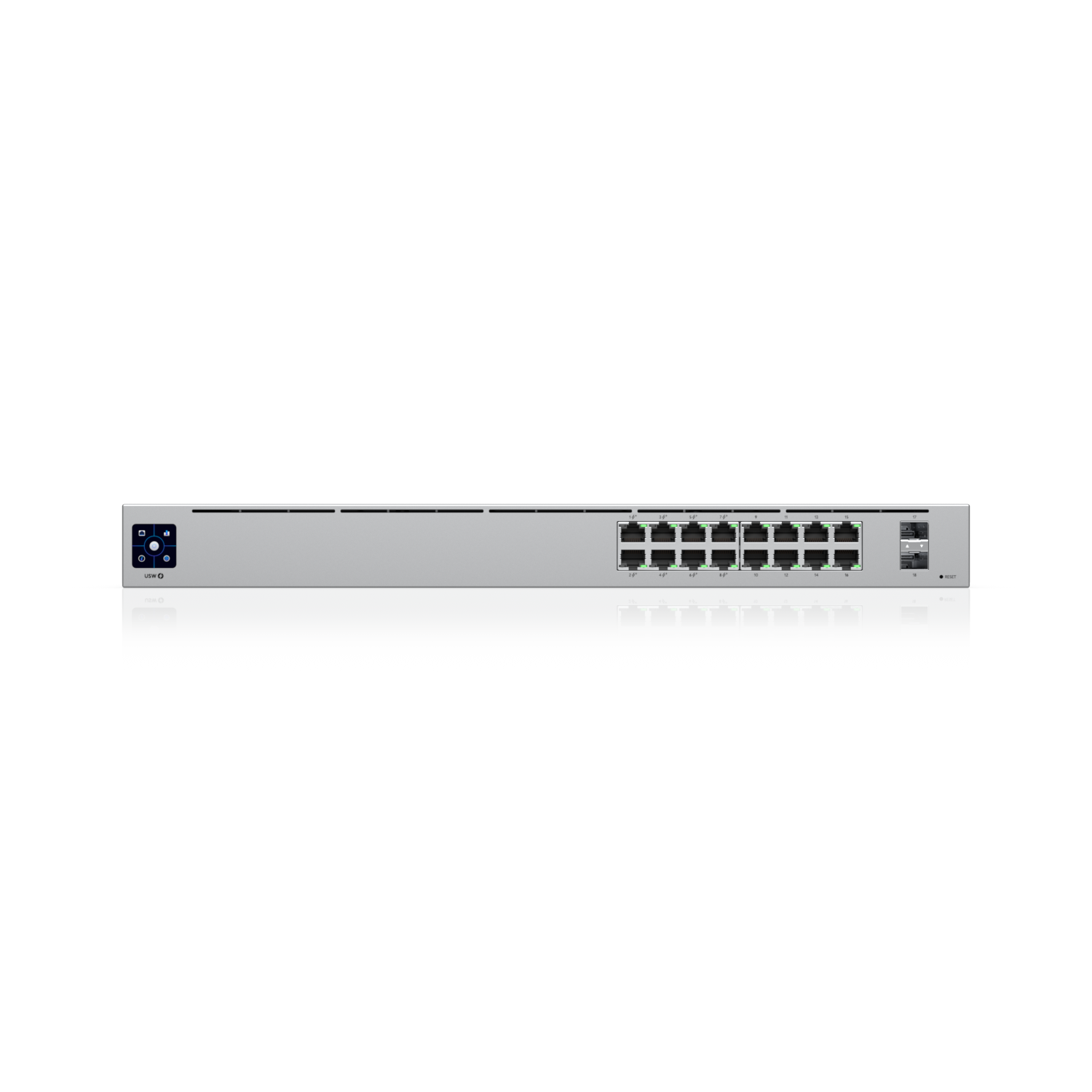

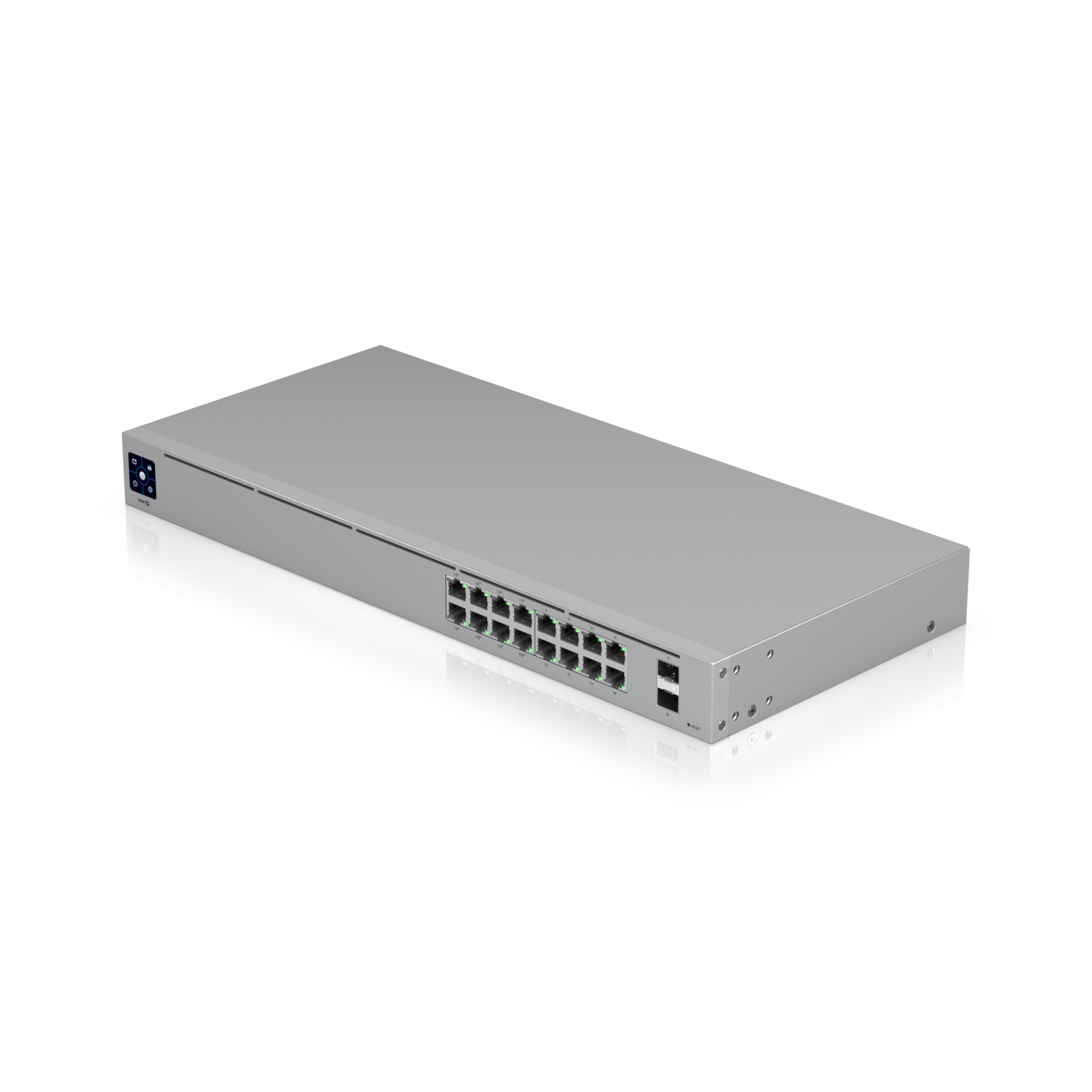

Standard 16 PoE | USW-16-POE (42W)

A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.
Manufacturer: Ubiquiti Networks
Call for pricing

Dimensions
442 x 200 x 44 mm(17.4 x 7.9 x 1.7")
Port Layout
1 GbE RJ45
16 (8 PoE+)(1G/100M/10M)
1G SFP
2
Max. PoE Output
Up to PoE+
Total PoE Availability
42W
Form Factor
Rack mount (1U)
Switching Capacity
36 Gbps
Total Non-Blocking Throughput
18 Gbps
Forwarding Rate
27 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
LACP Port Aggregation
?
STP & RSTP
?
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
?
IGMP Snooping
?
802.1X Control
?
MAC-Based ACLs & Device Isolation
?
DHCP Snooping & Guarding
?
Egress Rate Limit
?
Flow Control
?
Storm Control
?
Multicast & Broadcast Rate Limiting
?
MAC Address Blocking
?
IP-Based ACLs & Network Isolation
?
MAC-Based Port Restriction
?
Port Isolation
?
Port Mirroring
?
Jumbo Frames
?
LLDP-MED
?
Voice VLAN
?
Loop Protection
?
PoE Ports
PoE+
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
Max. Power Consumption
18W (Excluding PoE Output)60W (Including PoE Output)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100—240V AC
Management
EthernetAR
Heat Dissipation (Excluding PoE Output)
61.416 BTU/hr
Weight
Without mounting brackets: 2.8 kg (6.2 lb)With mounting brackets 2.9 kg (6.4 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm(15.7-47.2")
LCM Display
1.3" touchscreen
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
?
Certifications
CE, FCC, IC, Anatel
Application Requirements
UniFi Network
Version 7.2.94 and later
