Prism Antenna ( PrismAP-5-90 ) | Ubiquiti

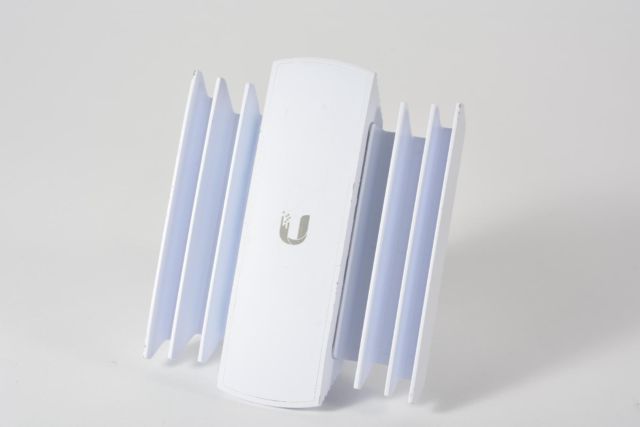

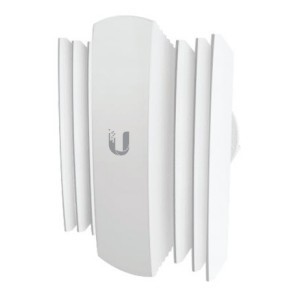

The Ubiquiti Networks PrismAP-5-90 is a 90° 5GHz Horn Antenna designed to be used with PrismStation or IsoStation radios. It is easily attached, with a locking mechanism instead of using connectors.
Manufacturer: Ubiquiti Networks
Call for pricing

Modular Design

The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or IsoStation radio, the system gets maximum gain out of the smallest footprint.

Symmetrical horn antenna

30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Asymmetrical horn antennas

60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Model Comparison

PrismAP-5-30
PrismAP-5-30
PrismAP-5-45
PrismAP-5-45
PrismAP-5-60
PrismAP-5-60
PrismAP-5-90
PrismAP-5-90
Gain19 dBi15.5 dBi16 dBi13 dBi
Frequency5.15 - 5.85 GHz5.15 - 5.85 GHz5.15 - 5.85 GHz5.15 - 5.85 GHz
Beam Width30°45°60°90°
