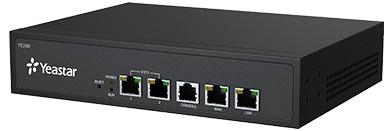

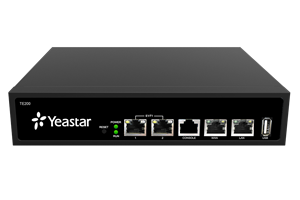

PRI VoIP Gateway TE200

Dual Port TE200 Series E1/T1/PRI VoIP Gateway
Manufacturer: Yeastar
Call for pricing

TE Series E1/T1/PRI
VoIP GatewayTE Series E1/T1/PRI

VoIP Gateway

Offer SMBs cost effective additions to a legacy telephone system to bring the true benefits of VoIP

Software configurable E1/T1/J1 ports

Up to 60 simultaneous VoIP to ISDN calls

Cost-effective call routing

Connect existing ISDN PBX to VoIP

Connect VoIP-only system to ISDN

Connect multiple PABX at different sites



A robust feature set that fulfills your various needs and cuts communication cost




Easy-to-navigate GUI and simple installation saves you loads of time




Stable with advanced hardware and software architecture




Compatible with various ISDN PBX, IP-PBX, and softswitch. Interoperable with Yeastar, Elastix
and Lync Server

E1/T1/J1 Ports (Support PRI, E&M)12
ProtocolSIP (RFC3261)
Transport ProtocolUDP, TCP, TLS, SRTP
CodecG.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo CancellationITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF ModeRFC2833, SIP Info, In-band
NetworkDDNS, Firewall, PPPoE, Static IP, QoS, Static Route
Network ProtocolFTP, TFTP, HTTP, HTTPS, SSH
PRI switch typesEuro ISDN, nation, Q.SIG
Caller IDBELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
LAN1 10/100Mbps1 10/100/1000Mbps
WAN1 10/100Mbps1 10/100/1000Mbps
Power SupplyAC 100-240V (12V 2A)
Dimensions (L × W × H) (mm)213 x 160 x 44
Operation Range0°C to 40°C, 32°F to 104°F;
Storage Range-20°C to 65°C, -4°F to 149°F
Humidity10-90% non-condensing
