Big capacity 50000 fingerprint templates, Camera and 3.5” color TFT-LCD display
Manufacturer: ZKTeco
Call for pricing

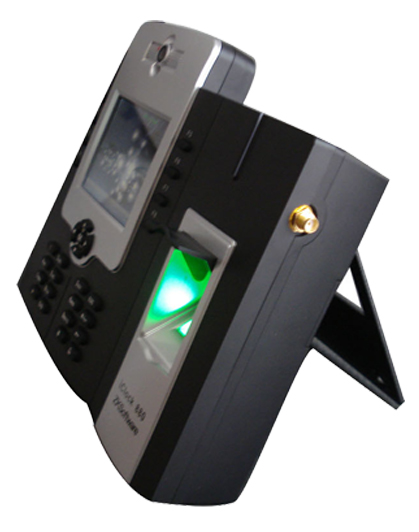

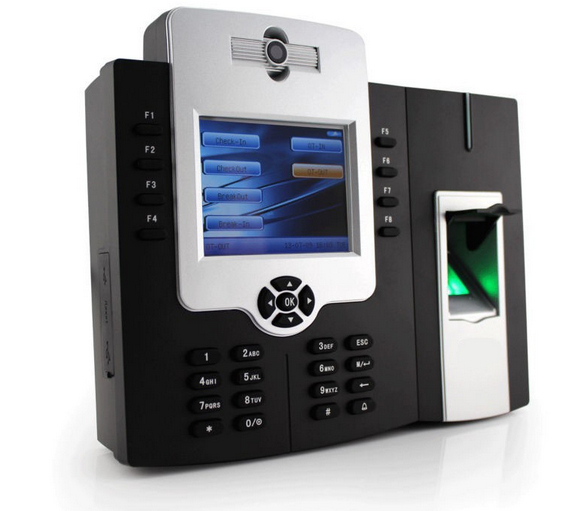

iClock880-H features ZK’s high performance, high image quality optical fingerprint sensor. The patented optical sensor is resistant to scratches and impact. the device has camera and 3.5” color TFT-LCD display.



The communication interface of the device includes TCP/IP, RS232/485 and USB-Host. Backup battery is standard in case of power failure. The device has professional access control function it can be used in multi-factor identification modes including fingerprint, password, RFID card or any combination.


• 50,000 templates (1: N) and 800,000 records.
• Multimedia 3.5’’ TFT screen.
• Internal Camera and Photo-ID support the user’s photo display and make T&A application more visible and reliable.
• Built-in backup battery.
• Optional integrated proximity or smart card reader.
• Built-in USB port allows for manual data transfer when network isn’t available.
• 8 user-defined function keys.
• Relay contacts for lock and alarm.
• Multi Languages Support.
• Audio-Visual indications for acceptance and rejection of valid/invalid fingers.
• SDK available for OEM customers and software devel opers.

Technical Specifications

Fingerprint Capacity

50,000

Transaction Capacity

800,000

Hardware Platform

ZEM600

Sensor

ZK Optical Sensor

Algorithm Version

ZK Finger v10.0

Communication

TCP/IP, USB-host

Standard Functions

Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, Anti-passback, 9 digit user ID, photo-ID, Camera, Built-in Battery

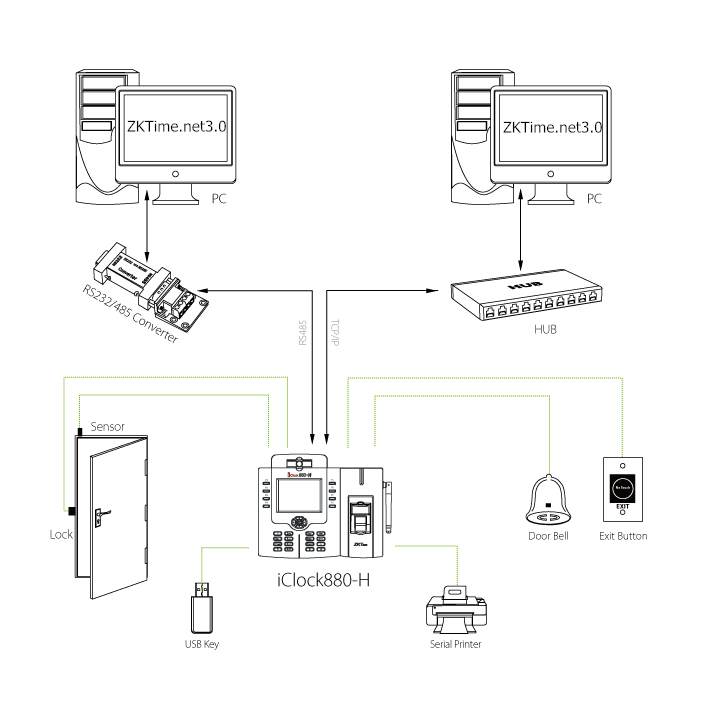

Access Control Interface

3rd Party Electric Lock, Door Sensor, Ext Button, Alarm, and Door Bell

Wiegand Signal

Input & Output

Optional Functions

ID/Mifare/HID, External Printer, Soap, AMS

Display

3.5 inches TFT Screen

Power Supply

12V DC 3A

Operating Temperature

0°C - 45°C

Operating Humidity

20% - 80%

Dimension

213×178.2×47.5 mm

Gross Weight

1.95kg

iClock880-H
0.44MBData Sheet2015-08-07
ZKAccess3.5
125.89MBSoftware2015-07-16
Standalone SDK
27.26MBSDK2015-07-16
