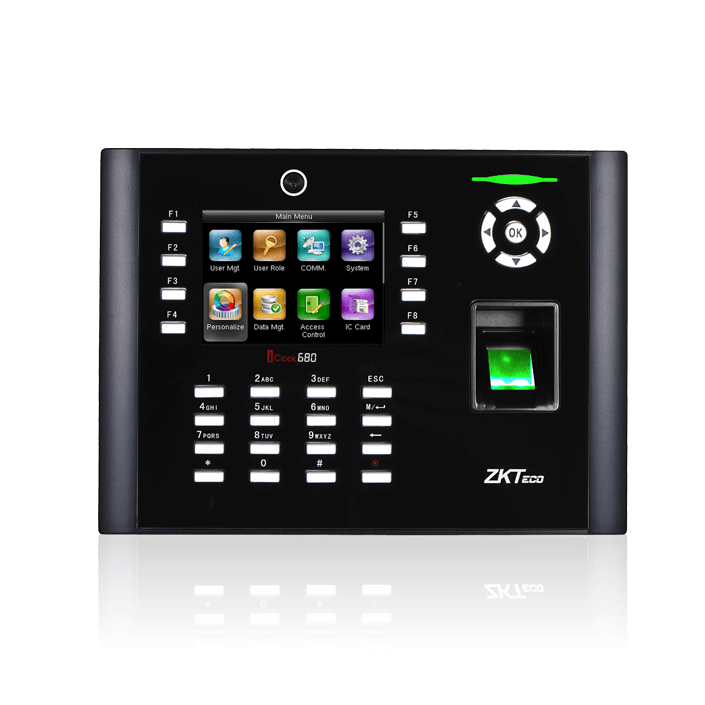

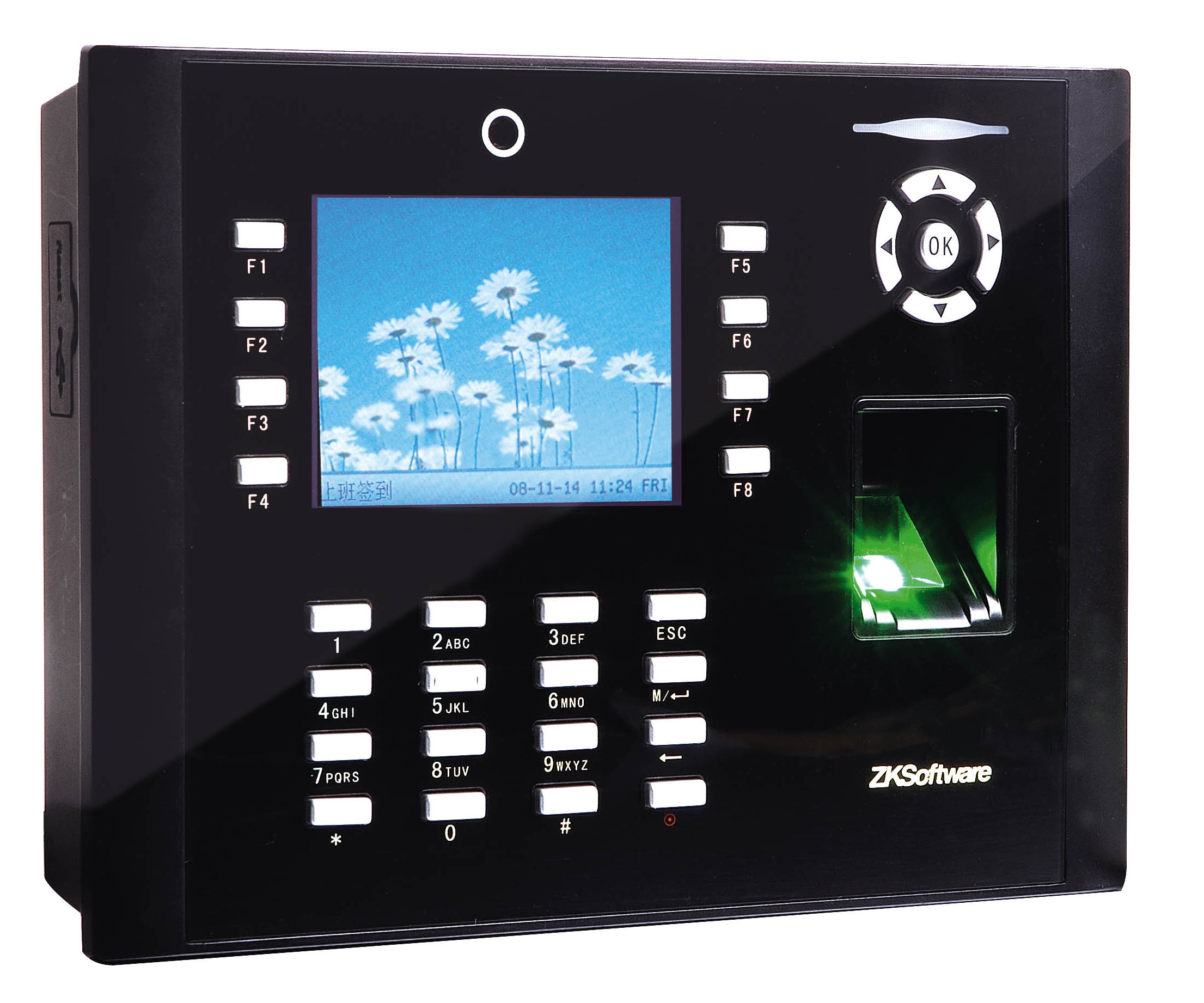

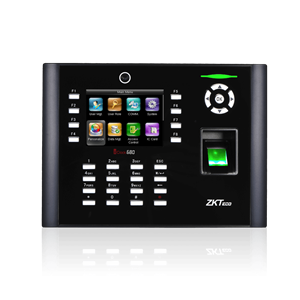

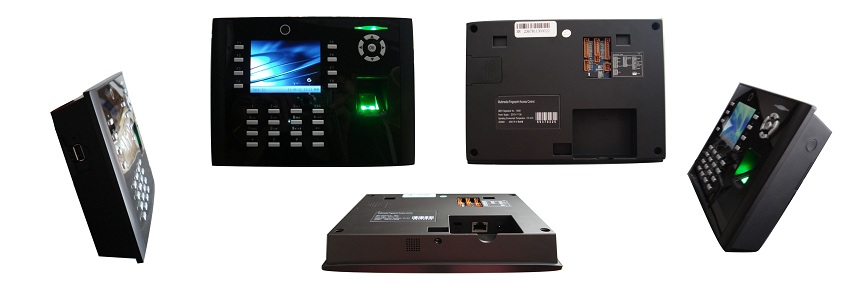

iClock680 | ZKTeco

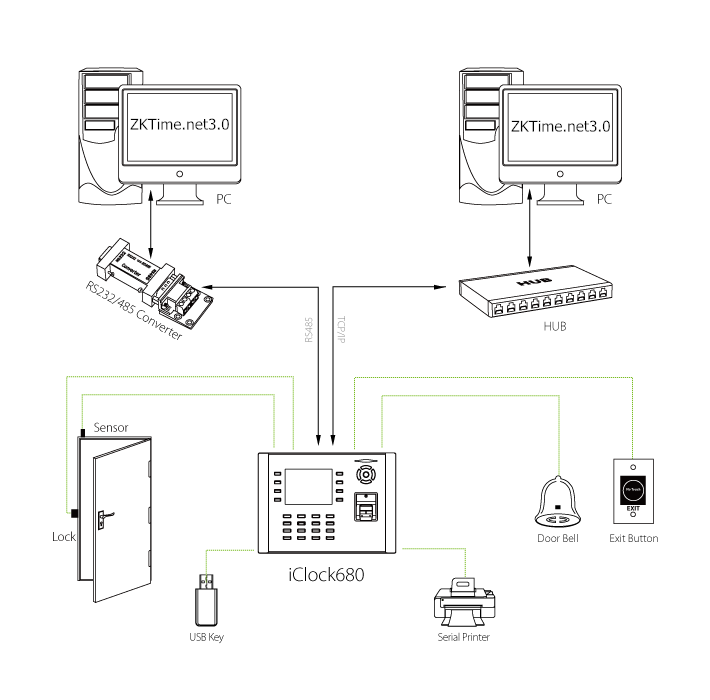

Users can easily manage data by networking iClock680 via RS232/485, TCP/IP, and USB Host.Most importantly, all the functions can still operate in a networking state.
Manufacturer: ZKTeco
Call for pricing

iClock680 is compatibility with various types of USB flash disks, ADMS and former SDK. It also supports data backup and retrieve to avoid the risk of accidental deletion.The iClock680 has access control interfaces for retrieval,Wiegand-out, door lock connection, alarm, and bell.



Remarkable user experience

• Intuitive and stunning UI designed with the most popular and internationalized factor.
• Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
• Faster matching speed: Less than 0.5 second.

Enhanced features and performance

• User validity settings.
• Data backup and retreival.
• Advanced User ID consisted of letters and numbers.

• Chip encryption for firmware protection.
• More flexible menu configuration: double line text display.
• External printer for attendance records output (Optional).
• Optional integrated Wi-Fi\GPRS.
• Relay contacts for alarm, bell, lock, exit, switch, etc.

Excellent expandability

• IEasy to extend functions and customize customers demand.

Access control interfaces

• For Wiegand-in, Wiegand-out, door lock connection, alarm, and bell.


Technical Specifications



Fingerprint Capacity

8000

ID Card Capacity

10,000 (Optional)

Record Capacity

200,000

Display

3.5-inch Screen

Communication

RS232/485, TCP/IP, USB-host

Standard Functions

Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, photo-ID, Anti-passback, Multiple Verify Mode, and Camera

Access Control Interface for

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, and Door Bell

Wiegand Signal

Input & Output

Optional Functions

ID/Mifare/HID, Webserver, 9 digit user ID, Wi-Fi, 3G and GPRS

Software

ZKTime 5.0 (Free), ZKTime.Net

Power Supply

DC 12V 1.5A (DC 12V 3A with 3G/GPRS)

Verification Speed

=0.5 sec

Operating Temp.

0°C - 45°C

Operating Humidity

20% - 80%

Dimension

205.6×150×41.6 mm (Length×Width×Thickness)

Gross Weight

1.40 kg

iClock680
0.42MBData Sheet2015-08-07
WDMS_V5.1.3.20170731
66.64MBSoftware2017-08-02
ZKTime.Net_3.0.2.7
100.51MBSoftware2017-07-24
ZKTime Web-2.0.3.13987_R
310.22MBSoftware2017-09-07
ZKAccess_Overseas_3.5.3.14
152.91MBSoftware2018-01-31
Standalone SDK
22.34MBSDK2018-03-15
