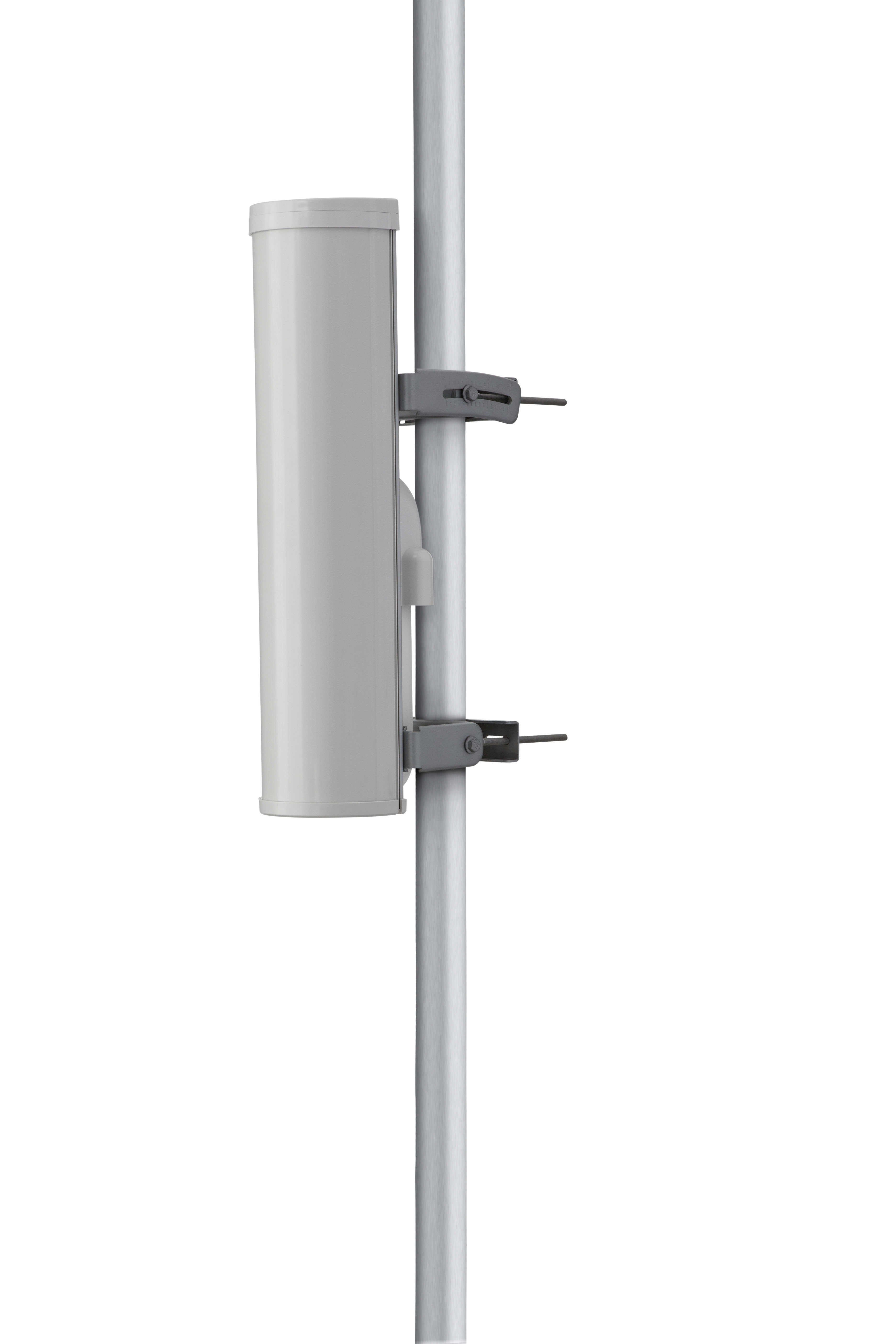

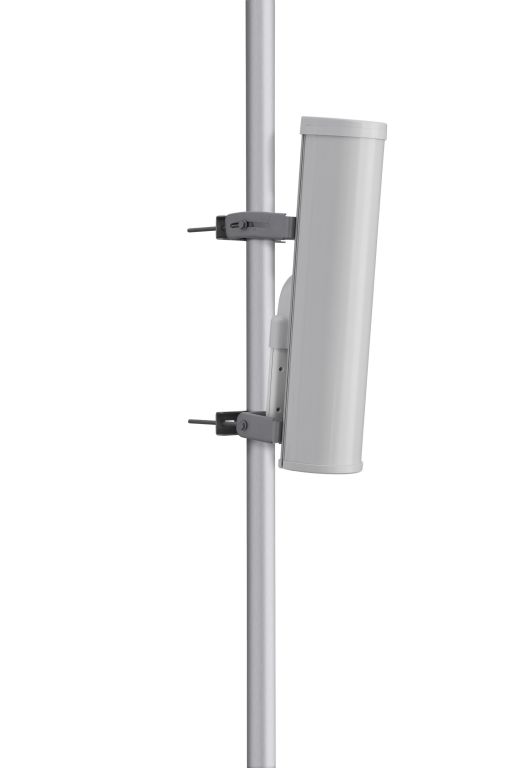

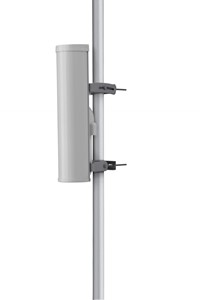

ePMP Sector 5GHz 90/120 || Cambium Networks

ePMP Sector 5GHz 90/120 has a very high Front-to-Back Ratio of 35 dB, and a wide frequency range, the ePMP Sector Antenna is the perfect partner for ePMP 2000.With a compact design featuring integrated ePMP™ Access Point and ePMP 2000 Smart Antenna mounting and a very high Front-to-Back Ratio of 35 dB and a wide frequency range.
Manufacturer: Cambium Networks
Call for pricing
Cambium Networks has designed an antenna solution that enables network operators to increase the spectral efficiency and scale of their ePMP point to multi-point (PMP) distribution access networks.

Wireless Service Providers deploying networks in 5GHz spectrum will find this sector antenna for 90° and 120° applications especially well-suited for high-density networks requiring frequency re-use and wide-band spectrum coverage.

Product Features
• Frequency Reuse: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has 35 dB front to back ratio including a wide aperture in the rear facing direction
• Channel Flexibility: consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance
• Consistent Coverage: Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector
• Designed for the Installer: Small compact design, integrated ePMP radio mount and GPS antenna integration
• Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth

Product Specifications
• Frequency: 5.8Ghz
• Gain: 18dBi
• 3 dB Beamwidth - Azimuth: 90 degrees
• 6 dB Beamwidth - Azimuth: 120 degrees
• 3 dB Beamwidth - Elevation: 6 degrees
• Electrical Downtilt: -2 degrees
• Polarization: Horizontal and Vertical
• Port-to-Port Isolation: > -30 dB
• Front-to-Front Ratio: 35 dB
• Maximum Input Power: 5 W
• Input Impedance: 50 ohms
• Mounting Connectors: 2 x RPSMA
• Mounting Hardware: Included for mounting to mast diameters 2" to 4" (5 cm to 10 cm), -10 to +5 degree tilt, Hardware included to connect ePMP access point to back of antenna body
• Physical Dimensions (Antenna Body): 23.4" (H) x 6.2" (W) x 4.3" (D) (584 mm x 157 mm x 110 mm)
• Physical Dimensions (with ePMP 1000 Access Point): 23.4" (H) x 6.2" (W) x 5.9" (D) (593 mm x 157 mm x 150 mm)
• Weight: Antenna Body: 8.8 lbs. (4.0 Kg). With ePMP 1000 Access point and Mounting Brackets: 14.6 lbs. (6.6 Kg)
• Environmental: IP65
• Radome Material: UV Protected ABS
• Operating Temp: -40°C to 60°C (-40°F to 140°F)

Product Includes
• (1) ePMP 5GHz 90/120° Sector Antenna
• (2) Pole Brackets
• (2) Front Mast Clamps
• (2) Rear Mast Clamps
• (4) M8x160 Bolts
• (4) M8x12 Screws
• (8) M8 Nuts
• (1) Antenna Body
• (1) ePMP 1000 Holder
• (1) ePMP 2000 Sector Mount
• (1) Environmental Cover
• (2) RP-SMA Cables
