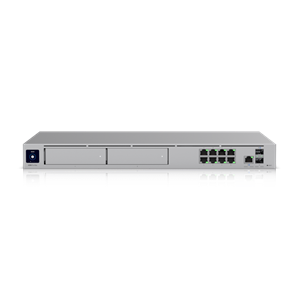

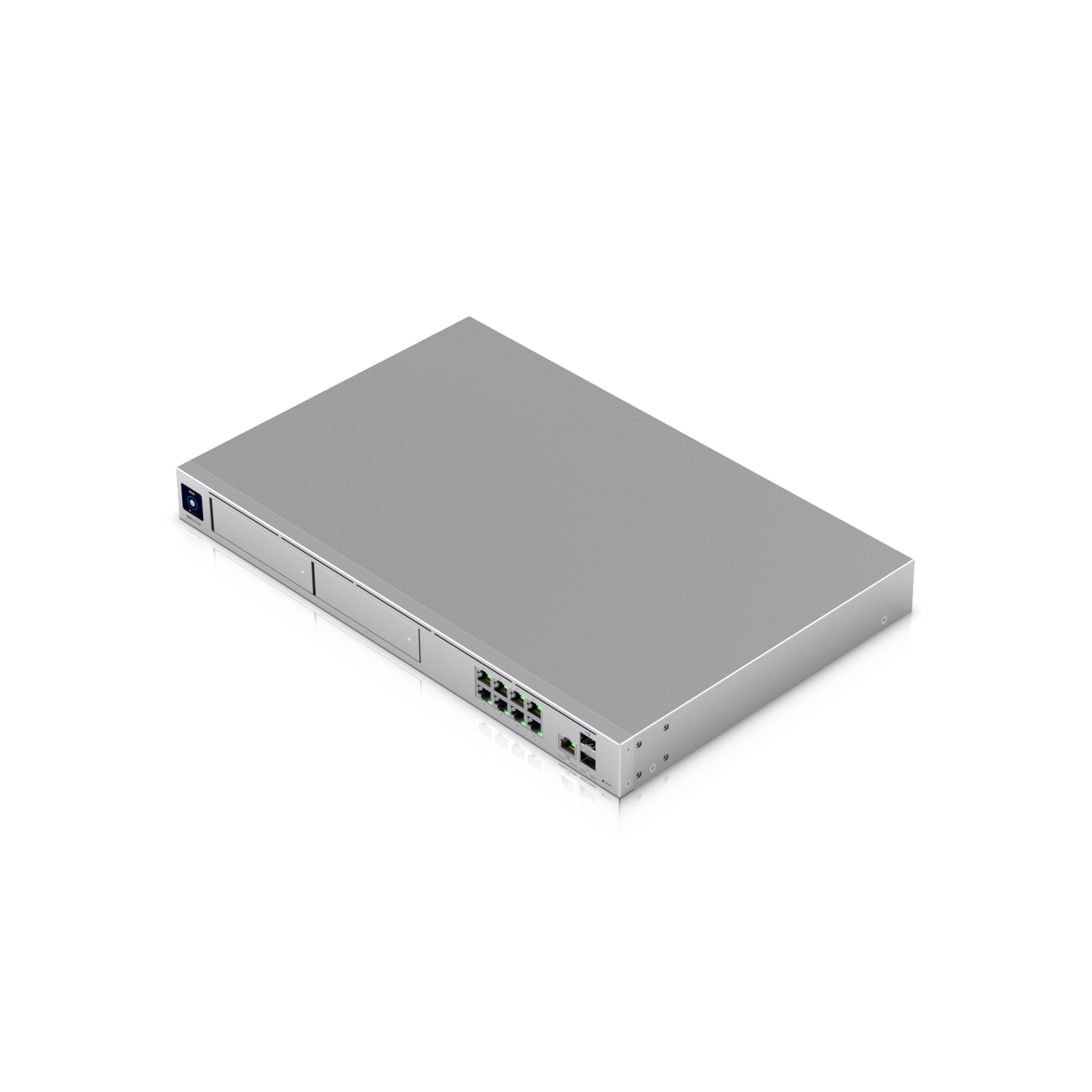

Dream Machine Pro Max | UDM-Pro-Max

10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.

Manufacturer: Ubiquiti Networks

Be the first to review this product

Call for pricing

Quantity:

Description

Dimensions

442.4 x 43.7 x 285.6 mm(17.4 x 1.7 x 11.2")

UniFi Application Suite

Network

Protect

Access

Talk

Connect

Managed UniFi Devices

200+

Managed Cameras

(50) HD(25) 2K(15) 4K

Simultaneous Users Connected

2,000+

Max. WAN Port Count

Default WAN Ports

(1) 10G SFP+(1) 2.5 GbE RJ45

Port Layout

1 GbE RJ45

8(1G/100M/10M)

2.5 GbE RJ45

1(2.5G/1G/100M/10M)

10G SFP+

2(10G/1G)

IDS/IPS Throughput

5 Gbps

Form Factor

Rack mount (1U)

Redundancy

Shadow Mode (VRRP) Gateway FailoverDC Power Backup

Stateful Firewall

Application-Aware Layer 7 Firewall

DPI & Traffic Identification

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Content Filtering

Intrusion Prevention (IPS/IDS)

Ad Blocking

IDS/IPS Signatures

55,000+with CyberSecure

VLAN/Subnet-based Traffic Segmentation

License-Free SD-WAN

Site-to-Site VPN

Site Magic

IPsec

OpenVPN

VPN Server

Identity Endpoint One-Click VPN

Teleport Zero-Configuration VPN

WireGuard

OpenVPN

L2TP

VPN Client

OpenVPN

WireGuard

Multi-WAN Load Balancing

Shadow Mode (VRRP) High Availability

Dynamic Routing

OSPF

BGP

Advanced QoS

Multicast DNS (mDNS)

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Integrated RADIUS Server

RADIUS over TLS (RadSec)

Additional Internet Failover with UniFi LTE Backup

Internet Quality and Outage Reporting

MAC Address Table Size

4,000

Policy-based WAN and VPN Routing

Customizable DHCP Server

IPv6 ISP Support

IGMP Proxy

NVR Storage

(2) 3.5" NVR HDD baysBuilt-in 128 GB SSD for Faster Experience

Max. Power Consumption

60W

Power Method

(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz(1) USP-RPS DC input, 11.5V DC, 8.7A

Power Supply

AC/DC, internal, 100W

Supported Voltage Range

100—240V AC

Processor

Quad-core ARM® Cortex®-A57 at 2.0 GHz

System Memory

8 GB

On-board Storage

32 GB eMMC128 GB SSD (Integrated)

Weight

4.7 kg (10.4 lb)

Enclosure Material

Aluminium CNC, SGCC steel

Mount Material

SGCC steel

LCM Display

1.3" touchscreen

Management

EthernetBluetooth

LEDs

Ethernet

SFP+

RPS

PSU

HDD

Button

(1) Factory-reset

ESD/EMP Protection

Air: ± 15kV, contact: ± 8kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

Certifications

CE, FCC, IC
