DIGIMHO DRL1 SELF CONTAINED RESISTANCE LEVEL PROBE | LEVEL CONTROL RANGE | Synatel

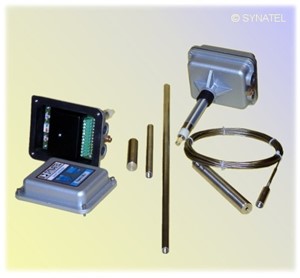

DIGIMHO DRL1 SELF CONTAINED RESISTANCE LEVEL PROBE is a resistance level control probe, fully self contained. Especially suited for use with highly conductive, sticky materials such as carbon black, treacle, molasses etc. Measuring range covers 500 ohms to 20K ohms. Powershield to automatically compensate for build up of conductive material around probe, preventing false signalling.
Manufacturer: Synatel
Call for pricing
Resistance level control probe, fully self contained. Especially suited for use with highly conductive, sticky materials such as carbon black, treacle, molasses etc.
Measuring range covers 500 ohms to 20K ohms. Powershield to automatically compensate for build up of conductive material around probe, preventing false signalling.


Supply
110/230V ac
Load
1.5A max
Ambient Temp.
-10°C to +50°C
Output
SPCO relay rated @ 2.5A 240V ac non-inductive
Output Mode
Switch selectable for normally ON (high level),
or normall off (low level)
Calibration
6 x in-line DIP switches
Indicators
Power, timer and output LED's
Mounting
1" BSP
Protection
IP65
Compensator
Power shield compensates for material build up between probe and vessel wall (earth/ground). Prevents false signalling. Ideal for sticky or viscous materials
Weight

DRL1 - 2Kg
plus probe rod.

Catalogue

 DRL1 Manual
