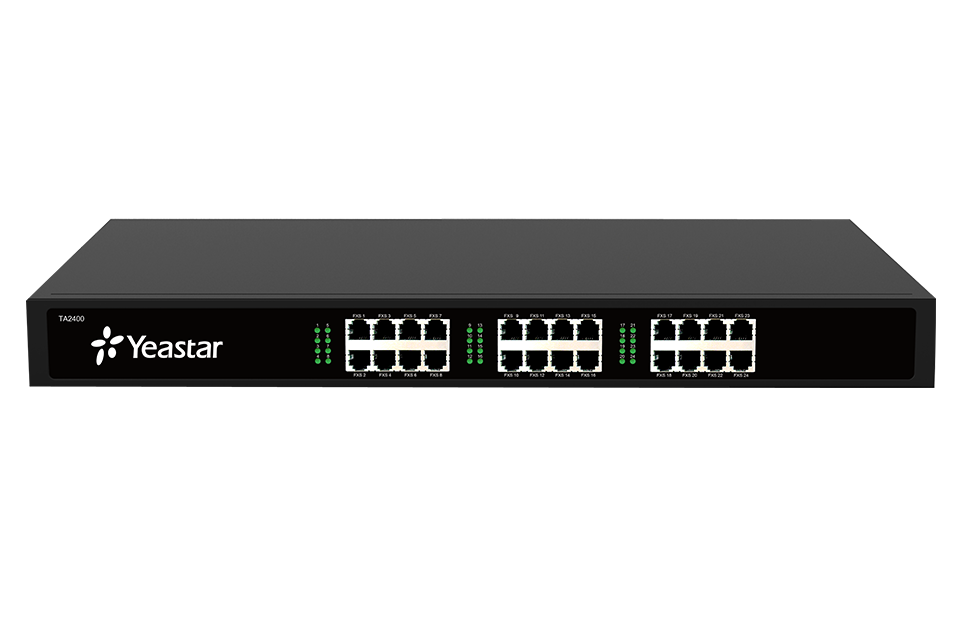

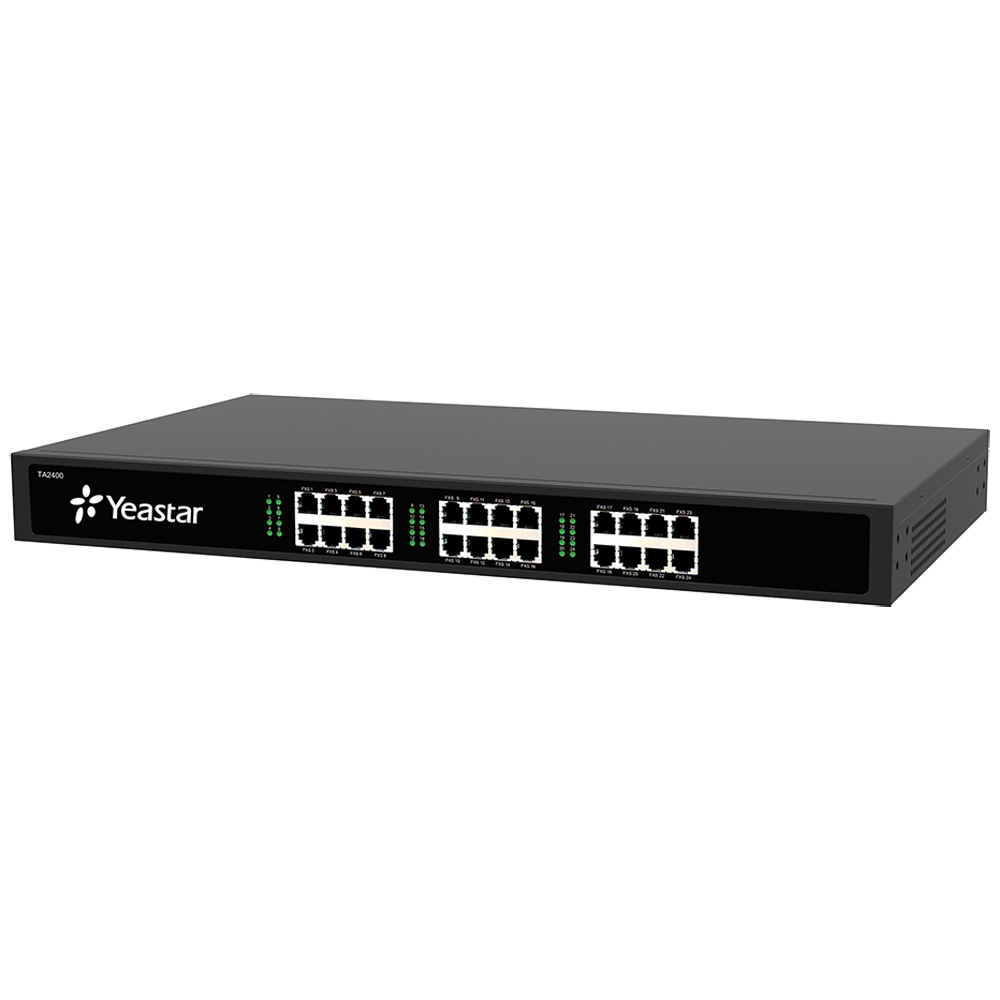

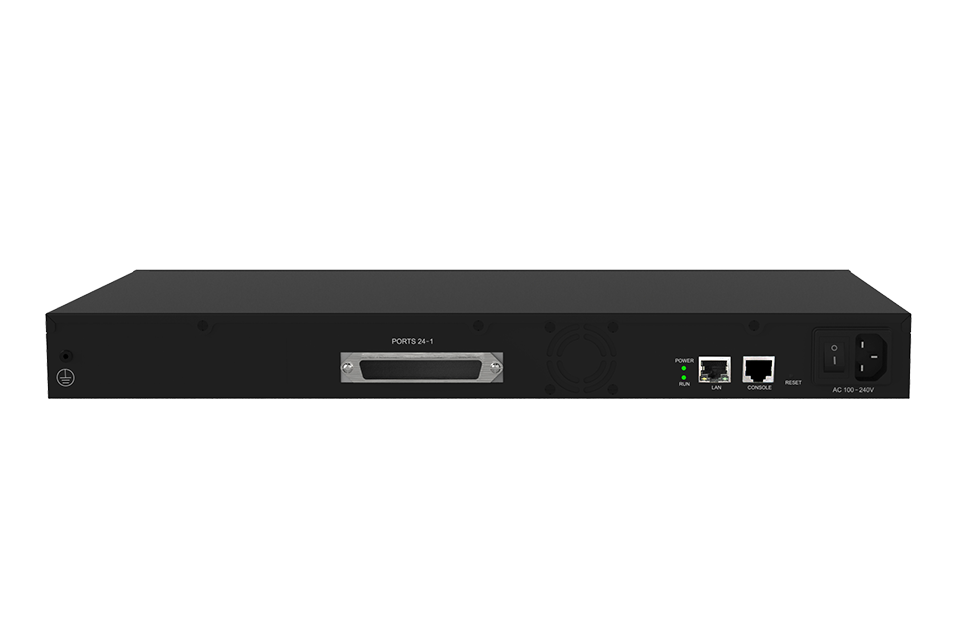

FXS Gateway TA2400 | Yeastar

Yeastar TA2400 is a high-quality 24 FXS ports analog VoIP gateway that connects branch offices and multi-tenant buildings to an IP network
Call for pricing
ta2400 features
ta400 hi perf

High Performance

TA2400 is a stand-alone FXS VoIP gateway with carrier-grade features and reliability.

  • 24 FXS ports
  • Fully compliant with SIP and IAX2
  • Flexible calling rules
  • Superb voice compression with industry standard codecs
  • Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
  • Tested and certified with ElastixBroadSoft, and others

Simple Management

TA2400 has an easy-to-use Web interface which allows super easy and straightforward configuration.

  • LED indicators present system and port status visually
  • User-friendly Web GUI and intuitive operations
  • Comprehensive call log, system logs, hardware logs, and debug logs
ta400 simple mgmt
ta400 green

Green with Small Footprint

Thanks to 1U form factor and low power consumption, TA2400 is suitable for any type of environment. With less power consumed, it also minimizes the power expense and makes your office green.

  • Quiet operation
  • Embedded system with low power consumption
  • Green and environmental protective

Automatic Provisioning

TA2400 supports PnP or DHCP provisioning by MyPBX and standard open protocol TR-069 and SNMP. Provisioning, monitoring, and management are as easy as a blink.

  • PnP or DHCP provisioning by MyPBX
  • TR-069 for mass deployment
  • Work with any TR-069 compliant ACS
  • SNMP for network management and monitoring
ta1600 auto provisioning
ta1600 varied ip applications

Varied IP Applications

TA2400 can be applied by SOHO business, enterprise users, service providers, contact centers, dispatching system, and many more.

  • Customer premises gateway for SIP Trunking
  • Access device for enterprise converged communications
  • Remote access device for call center and dispatching system
  • Access device for Lync Server integration solutions

Ports24 FXS Ports
Telephony InterfacesRJ11 and RJ21 50-pin Telco Connectors
LAN1 10/100Mbps
ProtocolSIP (RFC3261), IAX2
TransportUDP, TCP, TLS, SRTP
CodecG.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice CapabilityITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF ModeRFC2833, SIP Info, In-band
FaxT.38 and Pass-through
QoSDiffServ, ToS, 802.1 P/Q VLAN tagging
NetworkDHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network ProtocolFTP, TFTP, HTTP, HTTPS, SSH
Management ProtocolSNMP, RADIUS, TR-069
SignalingFXS Loop Start, FXS Kewl Start
Caller IDBELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect MethodsBusy Tone, Polarity Reversal
FXO Connectivity
PowerAC 100-240V (12V 5A)
Dimensions (L × W × H) (mm)440 × 250 × 44
Humidity10-90% non-condensing
Storage Range-20°C to 65°C, -4°F to 149°F
Operation Range0°C to 45°C, 32°F to 113°F
MountingDesktop, Rack-mount
CompatibilityInteroperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
