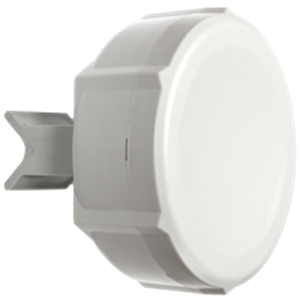

We are glad to introduce our first complete AP/CPE for 2.4GHz (2192-2732MHz depending on country regulations) - SXTG2HnD! It's powerful 60 degrees 2x2 MIMO 10dbi sector antenna with 1600mW wireless on-board- you can use it as a Sector AP, to make wireless point-to-point links or as a CPE- whatever you prefer! It comes with L4 license, perfect for covering outdoor area for hotspot clients.
Unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MIMO. It has the same form factor as our popular 5Ghz SXT model.

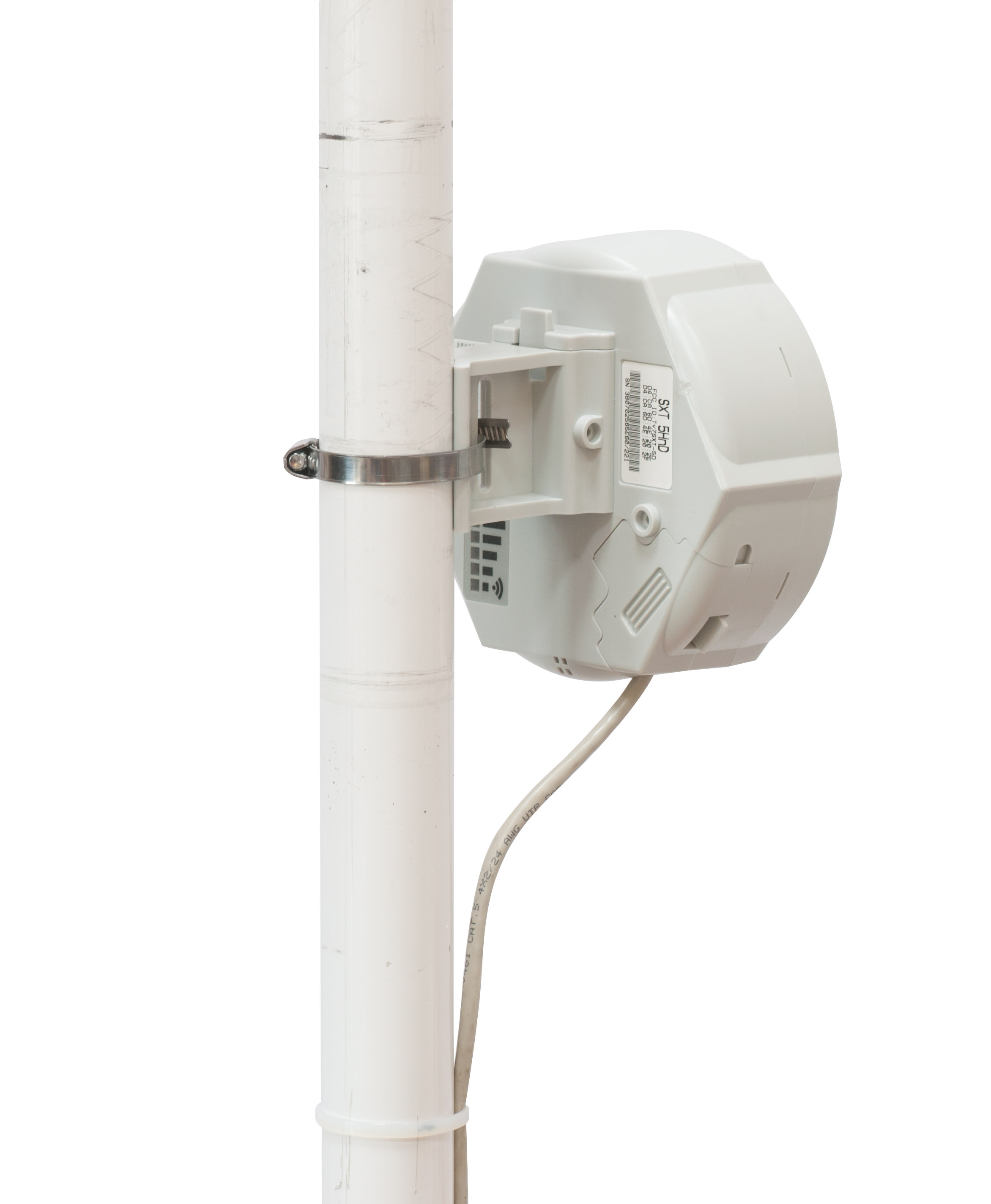

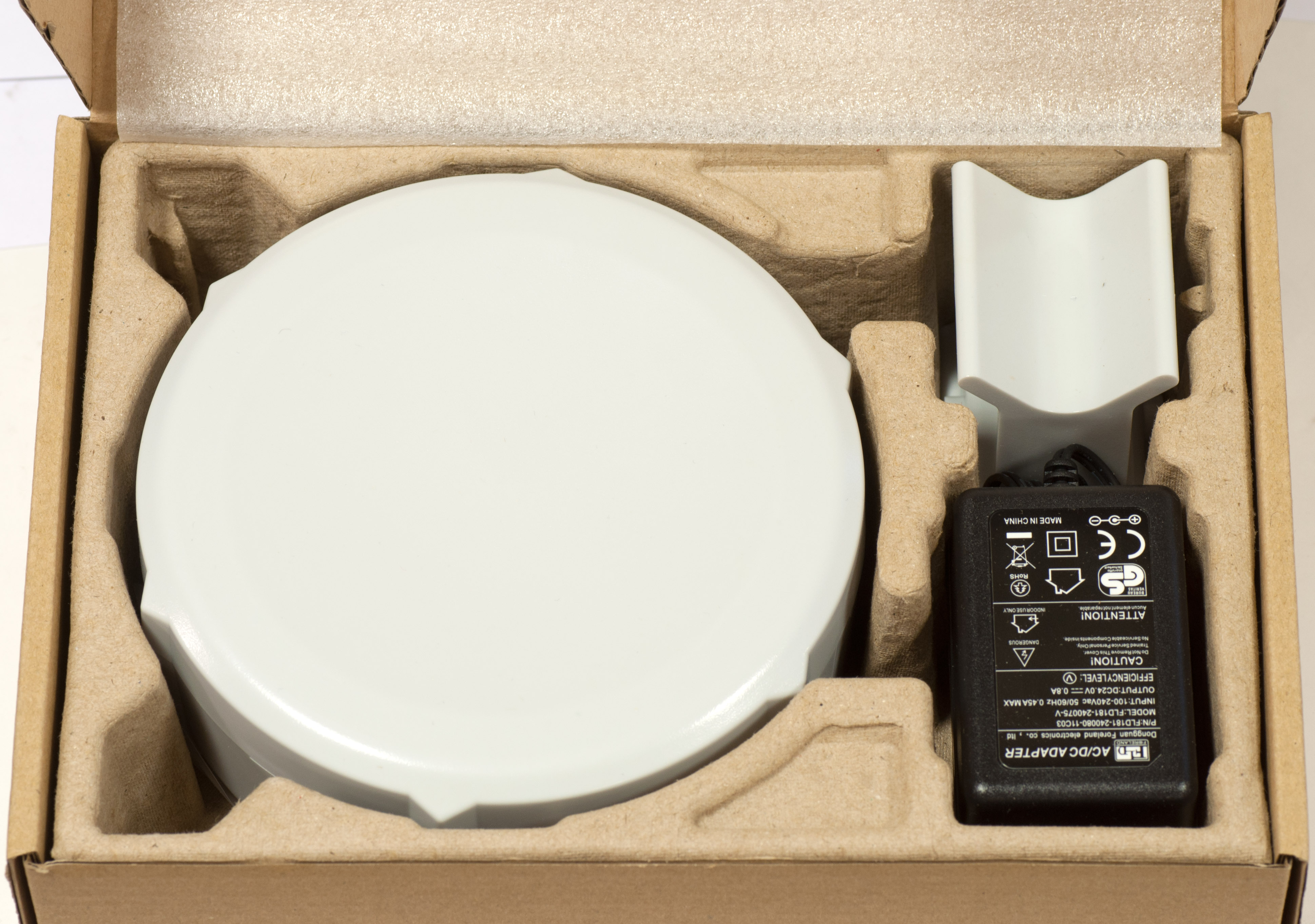

Package contains SXTG-2HnD, mounting loops, PoE injector, power adapter
SXT install guide:
Product specifications
| Details |
|---|
| Product code | RBSXTG2HnD |
| CPU nominal frequency | 400 MHz |
| CPU core count | 1 |
| Size of RAM | 32 MB |
| Architecture | MIPS-BE |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | AR9283-AL1A |
| Wireless standards | 802.11b/g/n |
| Number of USB ports | 1 |
| Power Jack | 0 |
| PoE in | Yes |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 140x140x56mm |
| Operating System | RouterOS |
| Operating temperature range | -30C to +80C |
| License level | 4 |
| Antenna gain DBI | 10 |
| Current Monitor | No |
| CPU | AR7242-AH1A |
| Max Power consumption | Up to 7W |
| SFP ports | 0 |
| SFP+ ports | 0 |
| USB slot type | USB type A |
| Number of chains | 2 |
| Serial port | None |
