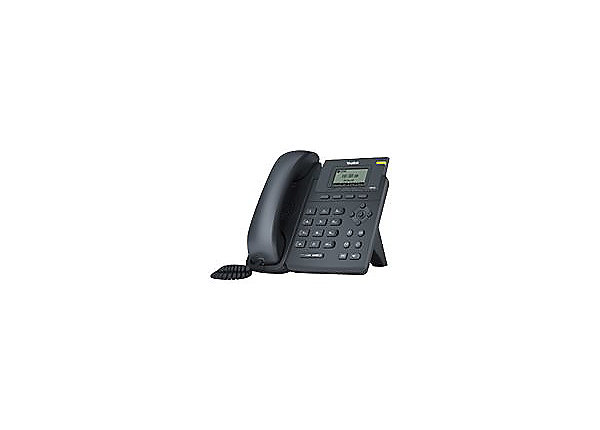

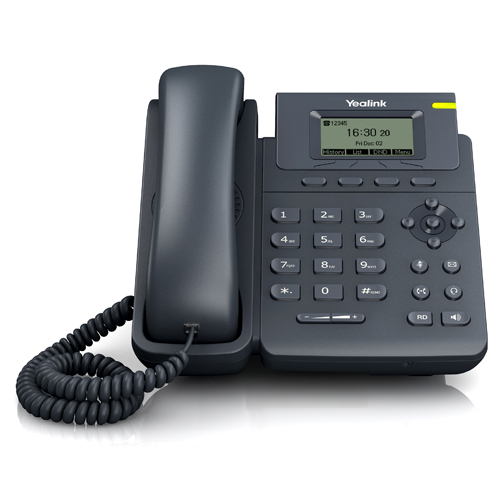

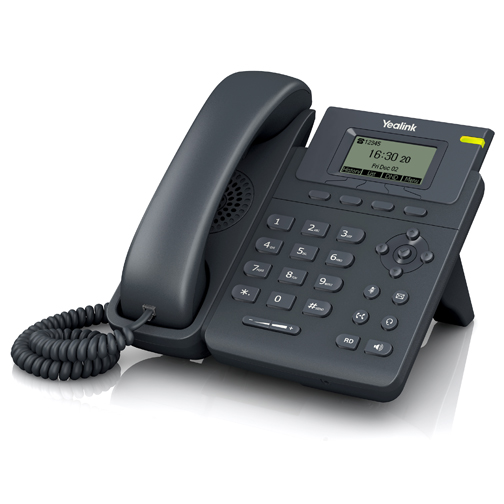

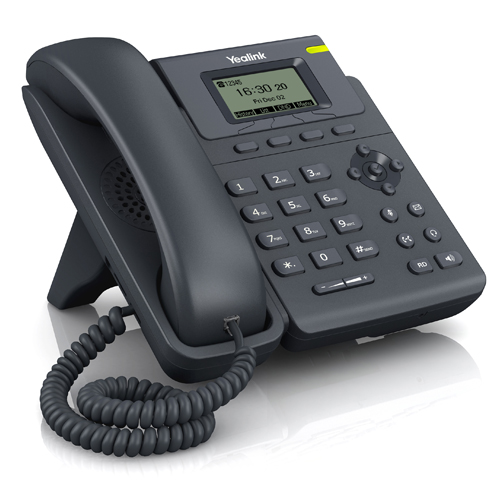

SIP-T19P | Yealink | IP Phone

The SIP-T19P supports a single VoIP account, simple, flexible and secure installation options,plus IPv6 and SRTP/ HTTPS/ TLS, VLAN and QoS.
Manufacturer: Yealink
Call for pricing
Features
> 132 x 64-pixel graphical LCD
> Single VoIP account
> Two-port 10/100 Ethernet Switch, integrated PoE
> Full-duplex speakerphone
> Headset, wall mountable
> XML remote phonebook
Specification

Audio Features

> Full-duplex hands-free speakerphone with AEC
> Codecs: G.711(A/µ), G.723, G.729AB, G.726
> DTMF: In-band, out-of-band(RFC 2833) and SIP INFO
> VAD, CNG, AEC, PLC, AJB, AGC



Directory

> Local phonebook up to 1000 entries
> Black list
> XML remote phonebook
> Intelligent search method
> Phonebook search/import/export
> Call history: dialed/received/missed/forwarded



Phone Features

> 1 VoIP account
> Call hold, mute, DND
> One-touch speed dial, hotline
> Redial, call return, auto answer
> Call forward, call waiting, call transfer
> Group listening, SMS
> Local 3-way conferencing
> Direct IP call without SIP proxy
> Ring tone selection/import/delete
> Keypad lock, emergency call
> Set date time manually or automatically
> Dial Plan, XML Browser, action URL&action URI



IP-PBX Features

> Anonymous call, anonymous call rejection
> Message waiting indicator (MWI)
> Voice mail, call park, call pickup
> Intercom, paging, music on hold
> Call completion, hot-desking



Display and Indicator

> 132x64-pixel graphical LCD
> LED for call and message waiting indication
> Intuitive user interface with icons and softkeys
> National language selection
> Caller ID with name, number



Network and Security

> SIP v1 (RFC2543), v2 (RFC3261)
> IPv6
> NAT transverse: STUN mode
> Proxy mode and peer-to-peer SIP link mode
> IP assignment: static/DHCP/PPPoE
> HTTP/HTTPS web server
> Time and date synchronization using SNTP
> UDP/TCP/DNS-SRV(RFC 3263)
> QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
> SRTP for voice
> Transport Layer Security (TLS)
> HTTPS certificate manager
> AES encryption for configuration file
> Digest authentication using MD5/MD5-sess
> IEEE802.1X



Management

> Configuration: browser/phone/auto-provision
> Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
> Auto-provision with PnP
> BroadSoft device management
> Zero-sp-touch TR-069
> Provisioning server redundancy supported
> Reset to factory, reboot
> Package tracing export, systemlog



Physical Features

>  2xRJ45 10/100M Ethernet ports
>  29 keys including 4 soft keys
>  1xRJ9 handset port
>  1xRJ9 headset port
>  Wall mountable
>  Power adapter (optional):

AC 100~240V input and DC 5V/600mA Output
>  Power over Ethernet (IEEE 802.3af)
>  Power consumpt ion (PSU) :  1.24-2.62W
>  Dimension (W*D*H*T): 185MM*188MM*143MM*38MM
>  Operating humidity: 10~95%
>  Operating temperature: -10~50°C



Package Features
>  Qty/CTN: 10 PCS
>  N.W/CTN:  9.8KG
>  G.W/CTN: 10.8KG
>  Giftbox size: 215MM*200MM*121MM
>  Carton Meas: 630MM*436MM*210MM
