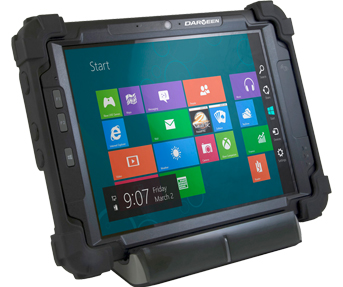

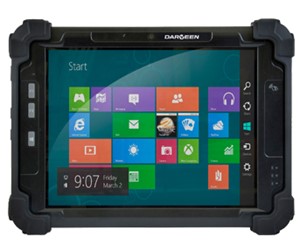

RTC-110 Rugged Tablet PC

Perfectly balanced performance, yet competitive pricing. The RTC-110 offers an unparalleled operating experience and cost-effective option
Manufacturer: Darveen
Call for pricing
IP65 dustproof and waterproof, shockproof and shock resistant military standard MIL-STD-810G, 1.8 meter resistant design fell
~ Capacitive multi touch, sunlight, readable LCD screen.
Wireless communication, support Wi-Fi 802.11ac, Bluetooth, select 3G/4G.
Hot plug battery design, improve the endurance of outdoor work.
Built in NFC and GNSS (GPS/GLONASS/ Beidou, according to customer requirements).
~ Supporting a variety of data collection Suites
~ Vehicle support with wide voltage input and powerful function.

ProcessorIntel Dual Core Atom E3827 1.75GHz (Bay Trail)
Memory4GB DDR3L-1600 SODIMM
Storage64GB mSATA SSD
Display10.4" LED backlight screen with 10-point capacitive touch
Resolution1024(W) x 768(H)
Audio1 high quallity speaker
WiFi&BluetoothWiFi IEEE 802,11a/b/g/n and Bluetooth 4.0
Barcode1D/2D barcode reader (snap-on, option)
Webcam2 mega-pixel camear audio input(front bezel)
5 mega-pixel camear with LED light,AF(rear bezel)
TPMTPM 1.2 (optional)
WWAN3.5G / LTE(optional)
GPSGNSS (GPS/GLONASS/BeiDou by request)
Front Panel Control
Front Panel Control1 x power button
1 x lock button
1 x RF setting button
1 x Windows button
2 x program function buttons
I/O  Ports
USB1 x USB2.0 (Type A)
1 x USB3.0 (Type A)
Audio jack1 microphone&headphone
Docking connector1
DC jack1
Ethernet1 x Ethernet (via Mini USB to RJ-45 adapter)
Mechanical & Environment
Resolution275(W) x 204(H) x 27(D) mm
Weigth1.3 Kg
CertificationsCE, FCC, CB
Operating systemWES7-WS7P, Win7 Pro. (Embedded)
Protection classIP65
Drop6-ft drop (MIL-STD-810G Method 516.6 Procedure IV)
ShockOperating : 40g, 11ms, Terminal sawtooth
(MIL-STD-810G Method 516.6 Procedure 1, Functional Shock)
Non-operating : 75g, 8~13ms, Terminal sawtooth
(MIL-STD-810G Method 516.6 Procedure V, Crash Hazard Shock)
Temperature-20°C to +50°C
-30°C to +70°C
Humidity5-95% without condensation (MIL-STD-810G Method 507.5)
Power Management
BatteryInternal : 3800mAh, 7.4V, non-swappable
External (option) : 4200mAh, 7.4V, hot-swappable
Power adapterAC 100V~240V, 50~60Hz input; 19VDC@3.42A,65W
