mANT 15s | Antennas | Mikrotik

Dual-polarization 5Ghz 15dBi 120 degree beamwidth antenna with two RP-SMA connectors
Call for pricing

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

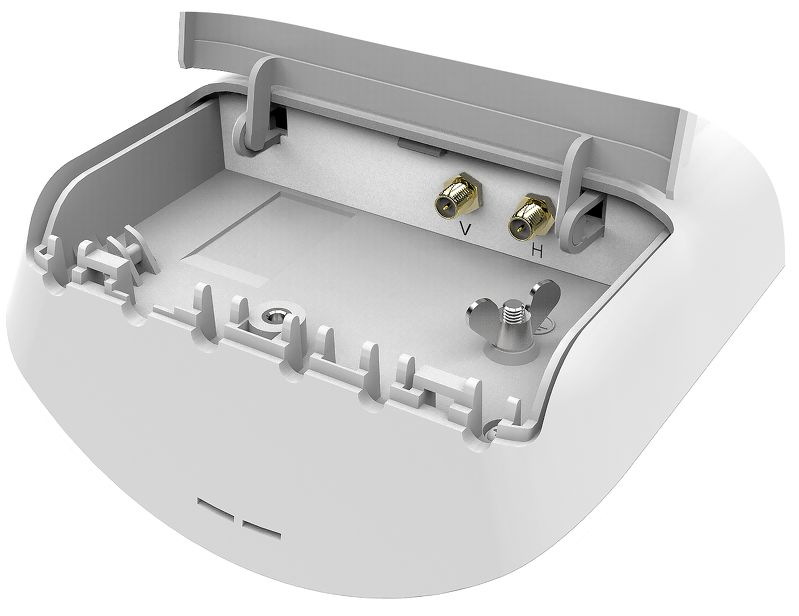

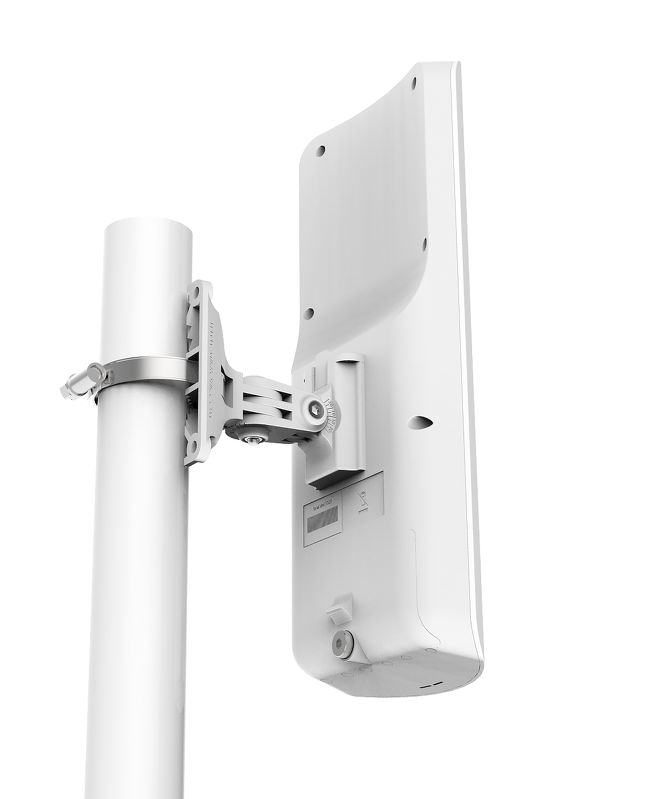

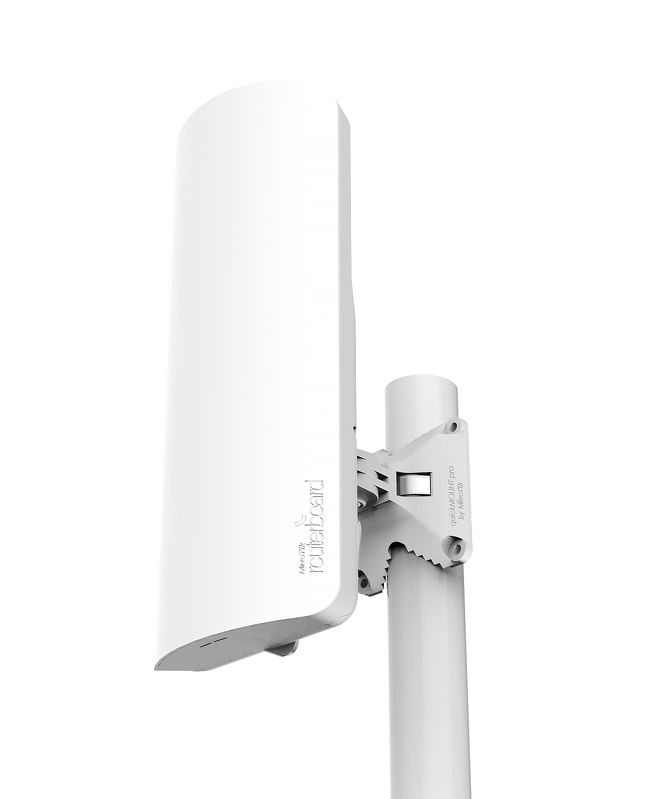

The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.

Product specifications

Details
Product codeMTAS-5G-15D120
Antenna gain DBI15
Frequency Range5.17 - 5.825 GHz
PolarizationVertical and horizontal
Beamwidth120 deg (azimuth) 10 deg (elevation)
VSWR1.43 typ, 1.8 max
Port to Port Isolation>40 dB min
Front-to-Back Ratio>30 dB
Cross Polarization>30 dB
Diameter x Depth140 x 348 x 82 mm
Weight734 g
Connectortwo RP-SMA
