RB912UAG-2HPnD | RouterBoard | Mikrotik

600MHz CPU, 64MB RAM, 1xGigabit Ethernet, onboard 1000mW 2.4Ghz wireless, miniPCI-express, USB, SIM slot, RouterOS L4
Call for pricing

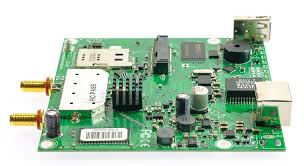

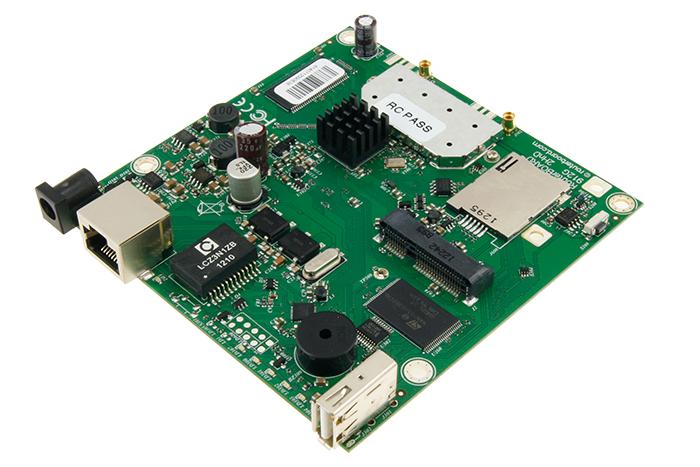

RB912UAG-2HPnD

The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.

Product specifications

Details
Product codeRB912UAG-2HPnD
CPU nominal frequency600 MHz
CPU core count1
ArchitectureMIPS-BE
Size of RAM64 MB
10/100/1000 Ethernet ports1
MiniPCI-e slots1
Wireless standards802.11b/g/n
Wireless chip modelAR9342
Number of USB ports1
Power Jack1
Supported input voltage8 V - 30 V
PoE inYes
Voltage MonitorYes
PCB temperature monitorYes
Dimensions105x105mm
Operating SystemRouterOS
Tested ambient temperature-40°C .. +70°C tested
License level4
CPUAR9342
USB slot typeUSB type A
Number of chains2
Storage typeNAND
Storage size128 MB
BrochureOpen
Quick GuideOpen
RouterBoot firmwareDownload
Design filesOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)
Declaration of conformityOpen (FCC)
