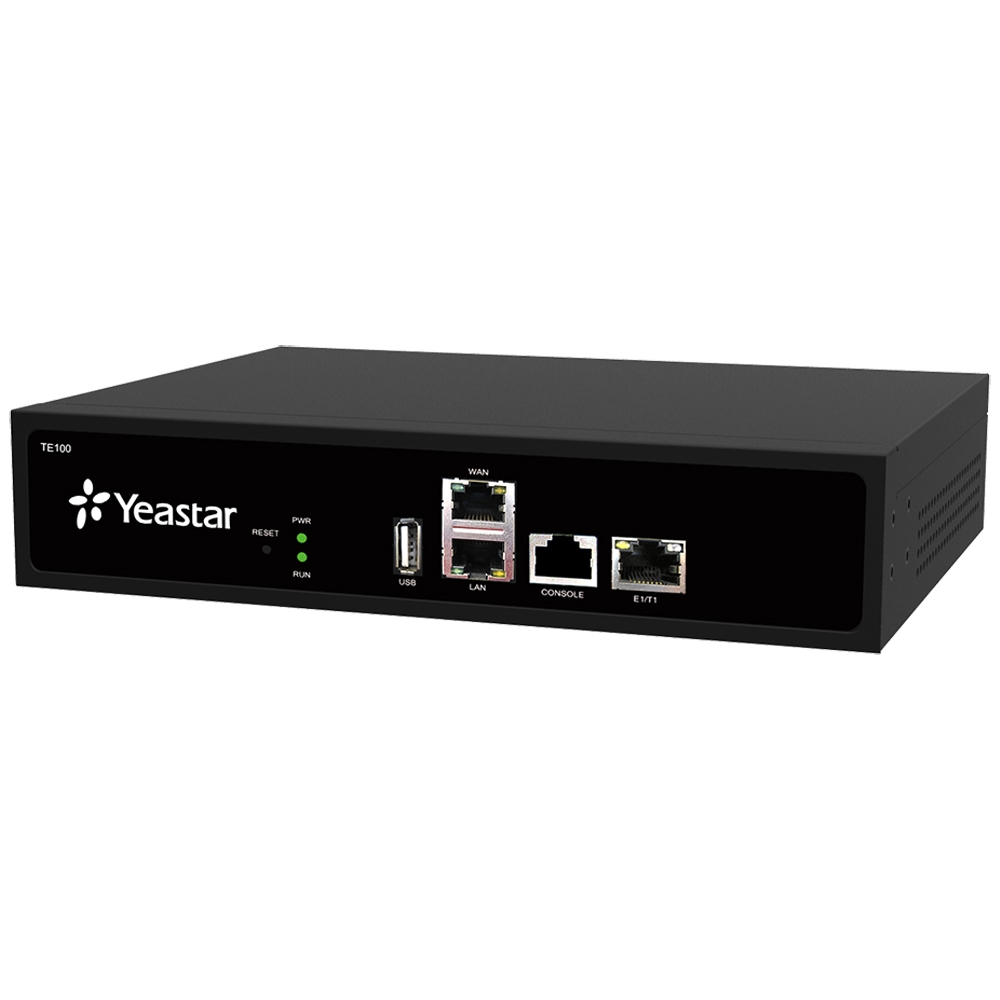

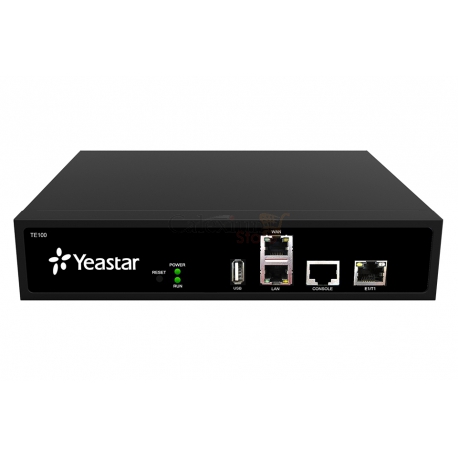

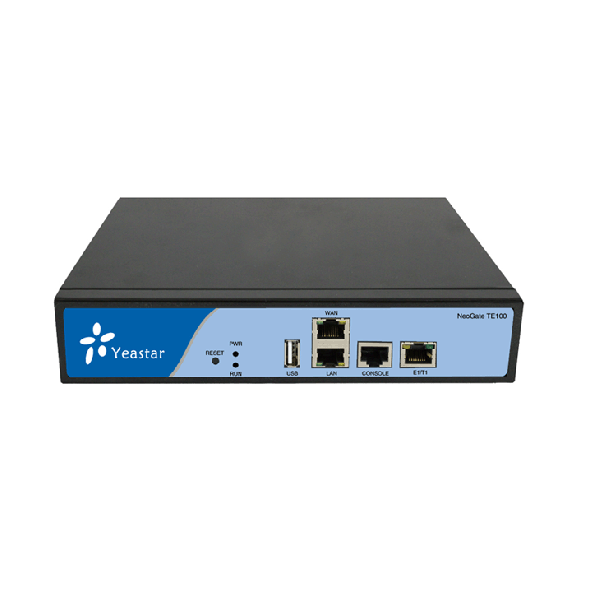

PRI VoIP Gateway TE100

TE100 is a single port VoIP E1/ T1 /J1 gateway (VoIP to E1/T1/J1, and E1/T1/J1 to VoIP) that supports up to 30 concurrent calls.
Call for pricing


te100 features

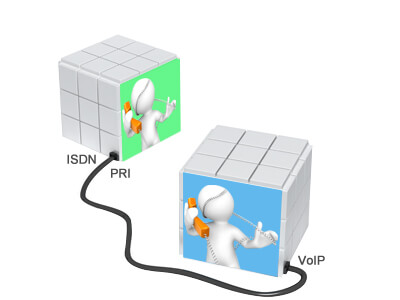

te100 benefits

Benefits

  • Software configurable E1/T1/J1 ports
  • Support PRI, MFC R2, SS7, E&M
  • Easy-to-navigate GUI
  • Cost-effective call routing
  • Simple installation and management
  • Interoperable with Elastix and Lync Server
  • Compatible with various ISDN PBX, IP-PBX, and softswitch
  • Low power consumption for your green office
E1/T1/J1 Port1 (Support PRI, MFC R2, SS7, E&M)
ProtocolSIP (RFC3261)
Transport ProtocolUDP, TCP, TLS, SRTP
DTMFRFC2833, SIP INFO, In-band
CodecG.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo CancellationITU-T G.168 LEC
Network ProtocolFTP, TFTP, HTTP, HTTPS, SSH
NetworkDDNS, Firewall, PPPoE, Static IP, QoS, Static Route
PRI switch typesEuro ISDN, nation, Q.SIG
CASMFC R2 (Argentina, Brazil, China, Czech Republic, Colombia, Ecuador, Indonesia, ITU, Mexico, Philippines, Venezuela)
SS7ITU, ANSI, China
LAN1 10/100Mbps
WAN1 10/100Mbps
USB1
Dimensions (L × W × H) (mm)213 x 160 x 44
Power SupplyAC 100-240V (12V 2A)
Operation Range0°C to 40°C, 32°F to 104°F
Storage Range-20°C to 65°C, -4°F to 149°F
Humidity10-90% non-condensing
