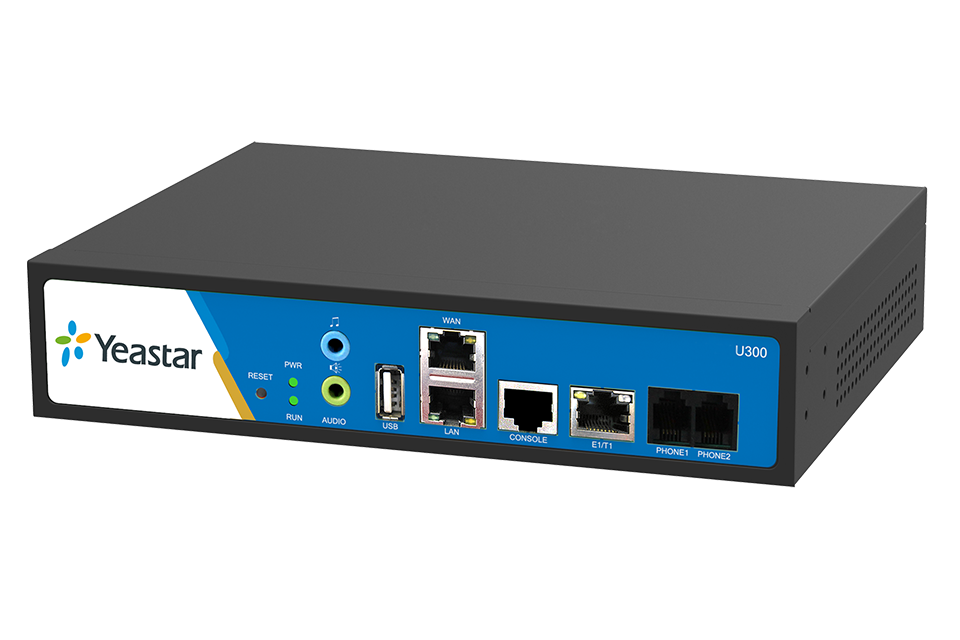

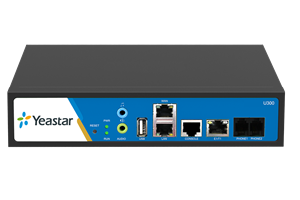

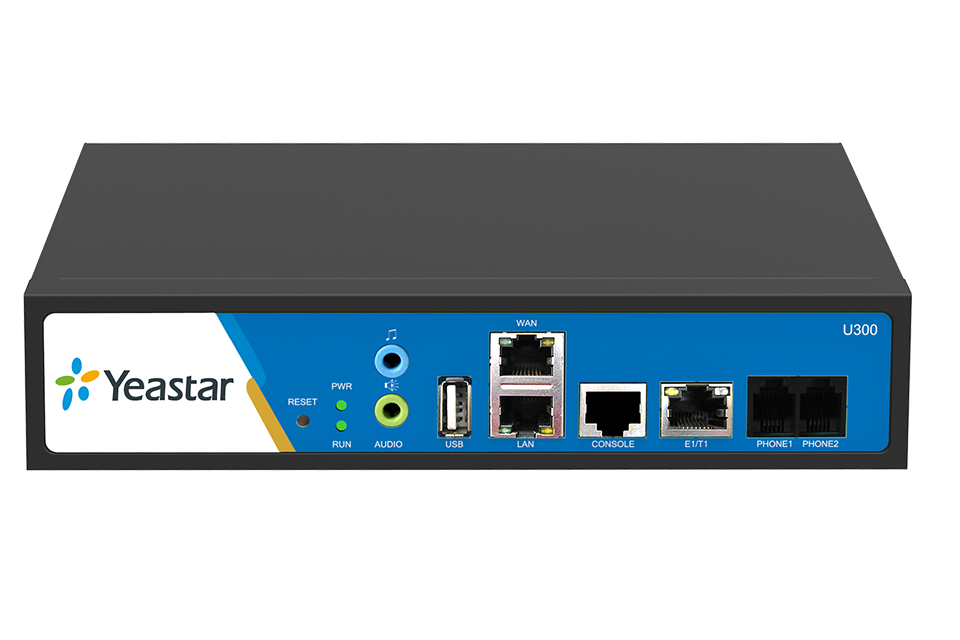

MyPBX U300 | Yeastar

MyPBX U300 boasts an embedded PRI (E1/T1/J1) port with up to 30 lines, 2 FXS ports, 300 users, and 50 concurrent calls in the one compact system.
Manufacturer: Yeastar
Call for pricing
yeastaru100-attributes
u300-e1-pri-t1

IP-PBX with E1 PRI

MyPBX U300 is unique in MyPBX family. With fixed telephony interfaces, U300 provides higher density trunking for offices using E1 PRI signaling.

  • One embedded E1/T1/PRI port
  • Two fixed FXS ports
  • Audio in/out interfaces
  • 1 U half-width

Robust All-in-one Features

MyPBX is a powerful all-in-one system that delivers enterprise-grade functionalities and features to SMBs. On purchasing the unit, you will have all the features at hand without extra cost.

  • Support 300 users and 50 simultaneous calls
  • Basic call handling features
  • Advanced IP-PBX features
  • No licensing fees for full capacity
allinonefeatures
easy-management

Easy Management

You can manage your phone system from any web browser using an intuitive and user-friendly Web interface. It’s easy to set up the system, add users, and configure the settings. Check a few boxes, choose from the dropdown list, and fill in text fields; you will know what to do when you see it.

  • Plug and play set-up
  • Configuration templates for IP phone batch editing

Multiple Language Support

System prompts: Afrikaans, American English, Australian English, British English, Arabic, Chinese, Danish, Dutch, Finnish, French, Canadian French, German, Greek, Hebrew, Hungarian, Italian, Korean, Norwegian, Persian, Polish, Portuguese, Brazilian Portuguese, Russian, Spanish, Latin American Spanish, Mexican Spanish, Swedish, Thai, Turkish
Web GUI: Albanian, Chinese Simplified, Chinese traditional, Croatia, Dutch, German, English, French, Hebrew, Italian, Korean, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Thai, Turkish

multiple-languages
green-office

Low Power Consumption

We not only care about your telephone system but also care about energy saving. MyPBX uses less power compared with legacy systems and IP-PBX running on rack servers. With less power consumed, it also minimizes the power expense and makes your office green.

  • Embedded system with low power consumption
  • Green and environmental protective

Excellent Interoperability

MyPBX has been used and tested with a wide range of PBX, VoIP gateways, IP phones and ITSP. Customers have the freedom to choose from different vendors and service providers that fit their needs and enjoy the guaranteed compatibility.

  • Support IP phones from Cisco, Yealink, Polycom, Panasonic, snom, Aastra, Tiptel, and more
  • Compatible with Asterisk, Elastix server, Trixbox, FreePBX, 3CX, and more
  • Certified with ITSP around the globe
interoperability
Users300
Concurrent Calls (Max)50
Analog Ports (Max)2
GSM Ports (Max)
UMTS Ports (Max)
BRI Ports (Max)
E1/T1/J11
LAN1 10/100Mbps
WAN1 10/100Mbps
VoIP Trunks64
IVR32
VoicemailDefault 3000 min (upgradable)
ProtocolSIP (RFC3261), IAX2
Transport ProtocolUDP, TCP, TLS, SRTP
Management ProtocolTR-069
Audio CodecG711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM
Video CodecH263, H263P, H264, MPEG4
DTMFIn-band, RFC2833, SIP INFO
IP ServicesDDNS, DHCP, Firewall, OpenVPN, PPPoE, QoS, Static IP, Static NAT, Static Route, STUN, VLAN
One Touch Record (Manual)Support
Call Recording (Auto)Support
RedundancySupport
MyTwinsSupport
Audio In/OutSupport
T.38 FaxSupport
SMS to Mail/Mail to SMS
Add-onsSupport
Hard Disk
USB1
TF Card Slot
Dimensions (L × W × H) (mm)213 × 160 × 44
Weight1.2 kg

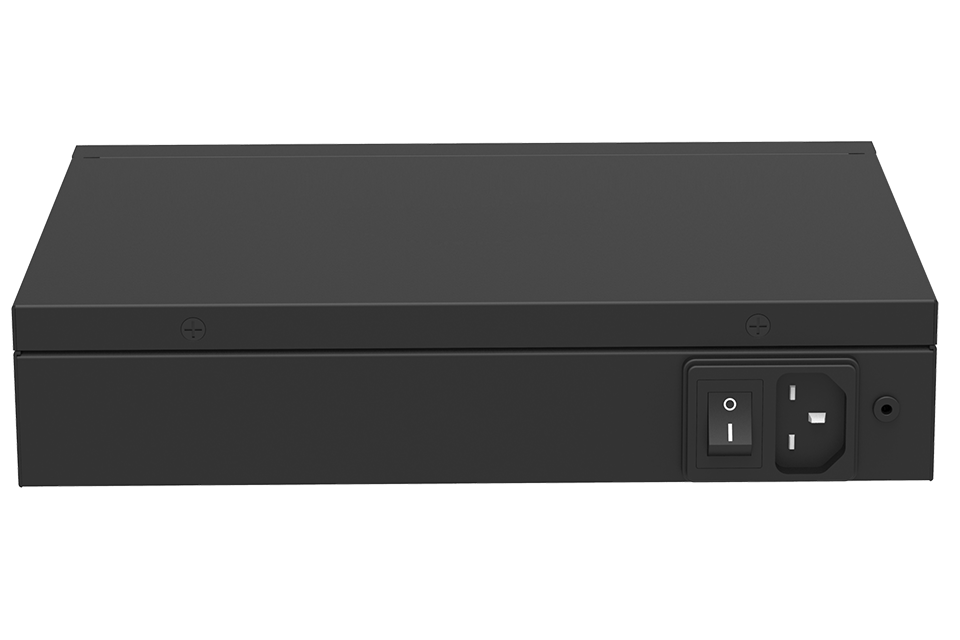

PowerAC 100-240V (DC 12V 2A)
