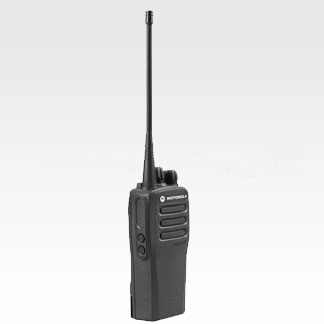

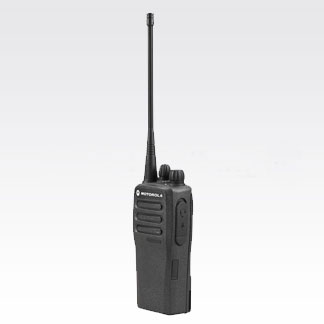

MOTOTRBO™ DP1400 DIGITAL PORTABLE RADIO

Simple and affordable, the DP1400 portable two-way analogue/digital radio connects your workforce efficiently—and has the flexibility to grow with your business. By combining the best of two-way radio functionality with the latest analogue and digital technology, the DP1400 is perfect for the everyday user who wants to stay connected. Fully compatible with the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more. You can also choose the analogue-only DP1400 model, which gives you great voice communications today, with a path to crisp and clear digital voice communications when you’re ready. All you will need is a simple software upgrade. Whatever your needs, the DP1400 provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication that’s right for you.
Manufacturer: Motorola Solutions
Call for pricing

Features

    Analogue/Digital - Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet. The freedom to migrate to the latest technology at your own pace.

    Transmit Interrupt Capability (decode only) - Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.

    Compatible with Radio Management Suite - Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.

    Dual Capacity Direct Mode - Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel – without the need for a repeater.

    IP54 Rated - Dustproof and splashproof, so you can work with confidence in challenging environments.

Specification Sheet

Performance Characteristics

  • Frequency range

    VHF (136-174 MHz); UHF (403-470 MHz)

  • Power

    Power supply- 7.5V (Nominal)

  • Battery life (based on a 05 05 90 duty cycle)

    NiMH (1400mAh) Battery
    Analogue: 9 hours Digital : 11.5 hours

    Li-Ion Slim (1600 mAH) Battery
    Analogue: 10.5 hours Digital : 13.5 hours

    High Cap Li-ion (2200 mAH) Battery
    Analogue: 14.5 hours Digital: 18.5 hours

  • Audio output

    0.5 W (Internal)

Physical Characteristics

  • Rotary on off volume

    Yes

  • Tri-colour status LED

    Yes

  • Emergency button

    Programmable

  • Keypad

    None

  • Display

    No Display

  • Weight (with standard battery)

    406g (NiMH 1400mAH) 341 g (Slim Li-Ion 1600mAH)
    346 g (Li-Ion 2200mAH)

  • Dimensions H x W x D (with standard battery)

    127.7 X 61.5 X 42.0 mm (NiMH 1400mAH) 127.7 X 61.5 X 39.0 mm (Slim Li-Ion 1600mAH) 127.7 X 61.5 X 44.0 mm (Li-Ion 2200mAH)

Radio Features

  • Programmable buttons

    Yes

  • Voice operated transmit (VOX)

    Yes

  • Time out timer

    Yes

  • Talkaround

    Yes

  • Signalling

    MDC/QCII/Digital

  • Scrambling

    Built-in

  • Scan types

    Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group

  • Selective calling

    Yes

  • Digital Private Line

    Yes

  • Private Line

    Yes

  • Monitor Permanent (Sticky) Monitor

    Yes

  • CPS (Customer Programming Software)

    Yes

  • Channel spacing (kHz)

    12.5, 25, 20, 12.5 (6.25 efficient)

  • Number of channels

    16

  • Channel scan

    Yes

  • Call tones

    Yes

  • Busy channel lockout

    Yes

  • Audio gain control

    Yes

  • Integrated voice and data

    Yes

  • Advanced Software Features

    Remote Monitor

Technology

  • System type

    Conventional, TDMA

  • Digital technology

    Yes

User Environment

  • Noise reduction software

    Yes

  • Submersible

    Yes

  • Accelerated life test

    Yes

  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

  • IP Standards

    IP54
