mANT30 PA | Antennas | Mikrotik

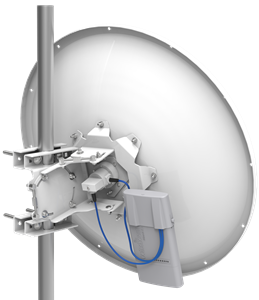

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products
Call for pricing

Product specifications

Details
Product codeMTAD-5G-30D3-PA
Antenna gain DBI30dbi
Frequency Range4.7-5.875 GHz
PolarizationVertical and Horizontal
Beamwidth3 deg
VSWR= 1.4 typ, = 1.8 max
Port to Port Isolation>40dB min
Front-to-Back Ratio>30 dB
Cross Polarization>40 dB
Power Rating100W
Impedance50 ohms
Elevation adjustment range+/- 15 deg
Diameter x Depth70 x 45cm (27.5 x 17.8in)
Weight5.7kg (12.6 lbs)
ReflectorAluminum
Outdoor RatingETSI EN 300 019-2-4
StandardsEN 302 326 DN1, DN2, DN3, DN5
Wind Survivability201kph (125mph)
Wind Load (125 mph)181.4kg (400 lbs)
Operating Temperature-50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range3 to 10cm (1.2 to 3.9in)
Connector2x RP-SMA Female (outside thread)
Packaged size73x73x20cm (29x29x8in)
Packaged weight8.4 kg (18,5)
