Dreams Network | lrt224-dual-wan | VPN ROUTERS FOR BUSINESS

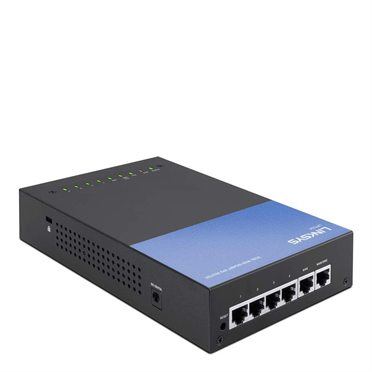

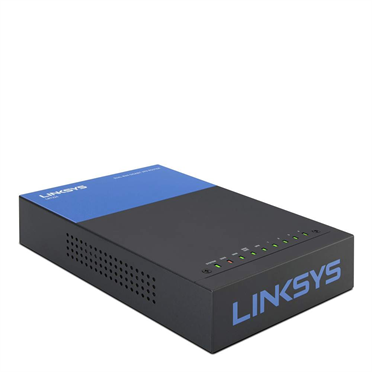

LINKSYS LRT224 DUAL WAN BUSINESS GIGABIT VPN ROUTER Load balancing and WAN failover offer highly reliable Internet connectivity for all your employees, at work or remotely. Learn More Open VPN Server Support Dual-WAN Load Balancing Integrated Firewall 802.1q VLAN EasyLink VPN for simple VPN Setup Superior IP Sec Throughput

Manufacturer: Linksys

Be the first to review this product

Call for pricing

Quantity:

TECHNICAL SPECS

Model Name:
LRT224
Dual-WAN:
- Link failover, load balancing
- Protocol & IP binding to a WAN port
Firewall:
- SPI (Stateful Packet Inspection)
- DoS (Denial of Service) prevention
- Schedule-based access rules (50)
- Web filtering (URL and keyword blocking)
- Block Java, cookies, ActiveX, http proxy servers
- IGMP proxy
- UPnP
Site-to-Site VPN:
- 50 IPsec site-to-site tunnels
- Split DNS over site-to-site tunnel
- VPN backup for site-to-site tunne
- DPD (Dead Peer Detection)
- Keep alive
- NAT-traversal
Remote Access VPN:
- OpenVPN
- PPTP
- Client-to-Site IPsec
NAT:
- Gateway mode
- Router mode
NAPT:
- 1-to-1 NAT (10)
- Port forwarding (30)
- Port triggering (30)
- Port address translation (30)
- DMZ host
DMZ Port:
- DMZ Range
- DMZ Subnet
802.1q VLAN:
5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)
DHCP Server:
Supports multiple address pools, one pool per VLAN subnet
DNS:
- DNS Proxy
- DNS Local Database
Monitoring/Alerting:
- Syslog
- Email Alert
- SNMP Trap
WAN Connection:
- Dynamic IP
- PPPoE
- PPTP
- L2TP
- Static IP
- Transparent Bridge
DDNS:
- Dynamic DNS (DynDNS, 3322)
- NOIP
- ChangeIP
Routing:
Static
IPv6:
- DHCPv6-PD
- 6to4
- Router Advertisement
Maintenance:
- Configuration backup and restore
- Dual configurations (startup and mirror)
- Firmware upgrade
- Diagnostics (ping and DNS name lookup)
- Reboot
- Factory defaults
Status and Statistics:
- WAN connection status
- VPN tunnel/user status
- Port status and statistics
Ports:

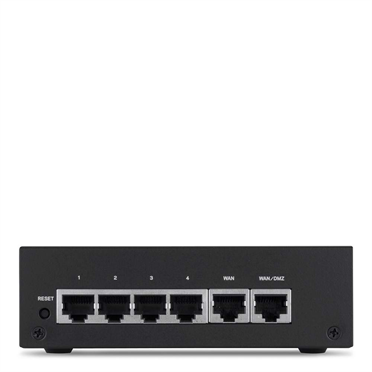

One 10/100/1000 RJ45 WAN port, One 10/100/1000 RJ45 WAN/DMZ port, Four 10/100/1000 RJ45 LAN ports, OpenVPN for mobile platforms (iOS, Android)
LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1–4
Port Management:
- 10/100/1000 Mbps
- Auto negotiation
- Half/Full duplex

Performance:
- IPsec VPN throughput: 110 Mbps
- Maximum NAT throughput: 900 Mbps
- Maximum concurrent connections: 30,000
Dimensions (LxWxH):
191 x 130 x 40 mm
Weight:
722.2 grams (28.43 oz)
Power:
12 V, 1 A
Operating Temperature:
0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature:
0ºC to 70ºC (32ºF to 158ºF)
Storage Humidity:
5% to 90% non-condensing
Mounting:
- Wall
- Desktop
VLAN Trunking:
VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches
Security Lock:
Kensington Lock
Regulatory Compliance:
FCC Class B, CE Class B
Warranty and Support:
Limited Lifetime Warranty
Bandwidth Management:
Rate control allowing limiting upstream and downstream bandwidth per service and IP; Priority scheme allowing services mapped to 3 levels of priority
LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1-4
Non-operating Temperature:
0ºC to 70ºC (32ºF to 158ºF)
Reset Button:
Yes
UPnP:
Yes
Web-based Administrative Interface:
- Browser supporting IE
- Firefox
- Safari
- Setup wizard
- Remote management over HTTPS

Download Data Sheet

Dual-WAN VPN User Interface Demo
