LGS552 52-PORT | SWITCHES | Linksys

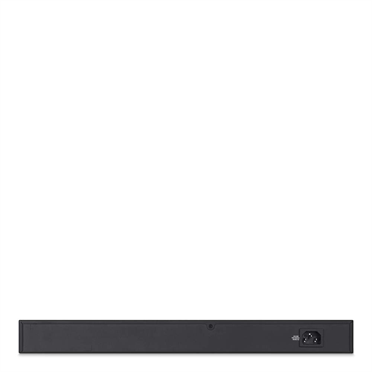

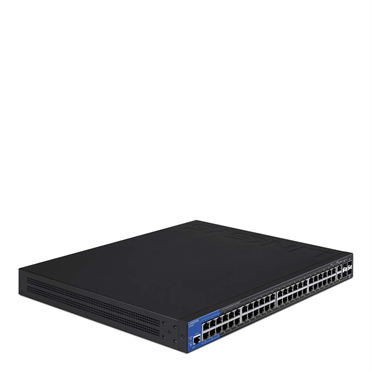

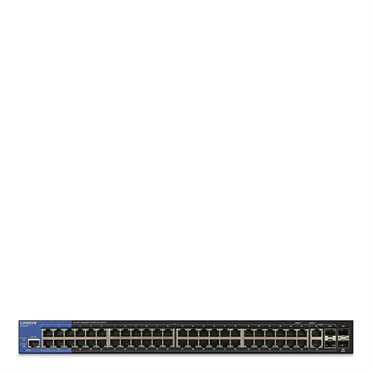

LINKSYS LGS552 52-PORT MANAGED BUSINESS GIGABIT SWITCH 52-port switch featuring Gigabit speed, enhanced security, and advanced traffic management. Learn More Two combo mini-GBIC (SFP) ports Two 10-Gigabit uplink Ethernet SFP+ ports Layer 3 static routing IPv6 Support Advanced QoS Advanced Security Meets EEE (Energy Efficient Ethernet) 802.3az standard
Manufacturer: Linksys
Call for pricing
  • Model Name:
    LGS552
  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3z
    • IEEE 802.3ae
    • IEEE 802.3x
    • IEEE 802.3ad
    • IEEE 802.3az
    • IEEE 802.1D
    • IEEE 802.1w
    • IEEE 802.1Q/p
    • IEEE 802.1X
  • Memory:
    128 MB
  • LEDs:
    System (blue/yellow), Link/Act(green)
  • System Power Consumption without PoE+:
    • 110V: 19.4W
    • 220V: 19.71W
  • Forwarding Rate:
    104.16 Mbps
  • Switching Capacity:
    140 Gbps
  • MAC Address Table Size:
    16K
  • Jumbo Frame (FE, GE):
    9K
  • Dimensions (LxWxH):
    440 x 350 x 44.45 mm (17.32 x 13.78 x 1.75 in.)
  • Weight:
    4.18 kg (9.22 lbs.)
  • Power Input:
    • 100–240V;
    • 50–60 Hz
    • (1.4A max)
  • Operating Temperature:
    0 to 50°C (32 to 122°F)
  • Storage Temperature:
    -20 to 70°C (-4 to 158°F)
  • Operating Humidity:
    10 to 90% RH
  • Storage Humidity:
    10 to 90% RH (non-condensing)
  • Spanning Tree:
    IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
  • Link Aggregation:
    IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
  • VLAN:
    Port-based and IEEE 802.1Q tag-based VLANs
  • Auto Voice VLAN:
    VLAN voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
  • IGMP Snooping:
    IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requesters; supports 256 multicast groups
  • HOL Blocking Prevention:
    Head-of-line (HOL) blocking prevention
  • Port Mirroring:
    Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer
  • Security Features:
    • IEEE 802.1X radius authentication
    • DHCP snooping
    • IP-MAC-Port binding
    • IP source guard
    • ARP inspection
    • STP root guard
    • STP BPDU guard
    • DHCP relay
    • Port security supports limited dynamic lock and locked MAC address,
    • Management access control
  • Storm Control:
    Broadcast, unknown-unicast, and multicast
  • Access Control:
    Support up to 512 rules for enhanced security and/or advanced QoS policy: allow, deny, or rate limit based on Layer1 to 4 protocol fields at packet header level with MAC ACL and IP ACL
  • RMON:
    Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
  • Management Interface:
    • HTTP
    • HTTPS
  • Other Management:
    Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
  • SNMP:
    • Version 1
    • Version 2c
  • QoS - Class of Service:
    Port-based, IEEE 802.1p priority-based, IPv4/v6 IP DSCP-based
  • Combo Ports (RJ45 + SFP):
    2 combo on ports g49, g50
  • Copper FE/GE Ports (RJ45):
    g01–g25, g26–g50
  • Green Power Mode:
    EEE+, Short Reach + Energy Detect
  • QoS - Priority Levels:
    4 hardware queues
  • QoS - Scheduling:
    Priority queuing and weighted round robin (WRR)
  • 10Gb Ports (SFP+):
    XG1, XG2
  • Total System Ports:
    52GE
