LGS308P 8-PORT | SWITCHES | Linksys

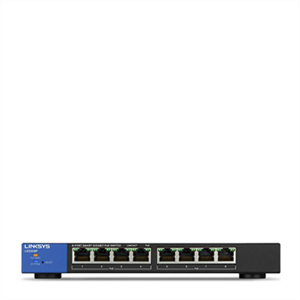

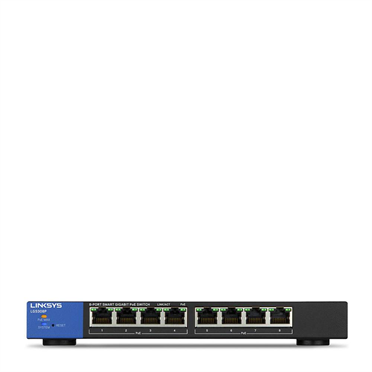

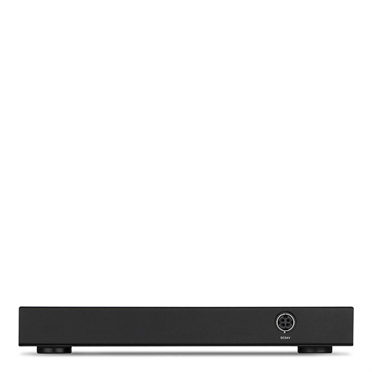

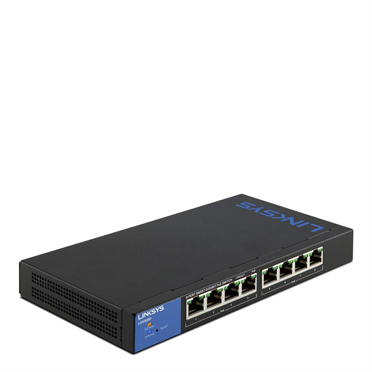

LINKSYS LGS308P 8-PORT BUSINESS SMART GIGABIT POE+ SWITCH Designed for business-class management, security, speed, and quality of service, with 8 PoE+ gigabit ethernet ports. Learn More Integrated Power Over Ethernet Plus Easy Configuration and Management Advanced Network Security Advanced QoS Meets EEE (Energy Efficient Ethernet) 802.3az standard
Manufacturer: Linksys
Call for pricing
  • Model Name:
  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3z
    • IEEE 802.3x
    • IEEE 802.3ad
    • IEEE 802.3az
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.1d
    • IEEE 802.1q/p
    • IEEE 802.1X
  • Number of Ports with PoE+ Support:

  • Memory:
    128 MB
  • LEDs:
    System (blue), Link/Act/PoE (green/green)
  • System Power Consumption without PoE+:
    • 110V:9.95W
    • 220V:10.17W
  • Forwarding Rate:
    11.90 Mpps
  • Switching Capacity:
    16 Gbps
  • MAC Address Table Size:
  • Jumbo Frame (FE, GE):
  • Dimensions (LxWxH):
    210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)
  • Weight:
    0.562 kg (1.23 Ibs.)
  • Power Dedicated to PoE+:
  • Power Input:
    • 100–240V
    • 50-60 Hz
    • (1.5A max)
  • Operating Temperature:
    0 to 50°C (32 to 122°F)
  • Storage Temperature:
    -40 to 70°C (-40 to 158°F)
  • Operating Humidity:
    10 to 90% RH
  • Storage Humidity:
    10 to 90% RH (non-condensing)
  • Spanning Tree:
    IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
  • Link Aggregation:
    IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
  • VLAN:
    Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
  • Number of VLANs Supported:
    128 active VLANs (4,096 range)
  • Auto Voice VLAN:
    VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
  • IGMP Snooping:
    IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
  • HOL Blocking Prevention:
    Head of line (HOL) blocking prevention
  • Port Mirroring:
    Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer
  • Security Features:
    • 802.1x Radius authentication
    • DHCP snooping
    • IP-MAC binding
    • Port security supports limited dynamic lock and locked MAC address
    • Management access control
  • Storm Control:
    Broadcast, flooding, and multicast
  • RMON:
    Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
  • Management Interface:
    • HTTP
    • HTTPS
  • Other Management:
    Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
  • SNMP:
    • Version 1
    • Version 2c
  • Firmware Upgrade:
    • Web Browser (HTTP/HTTPS)
    • TFTP
  • QoS - Class of Service:
    Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
  • Copper FE/GE Ports (RJ45):
  • Green Power Mode:
    EEE+, Short Reach + Energy Detect
  • QoS - Priority Levels:
    4 hardware queues
  • QoS - Scheduling:
    Priority queuing and weighted round robin (WRR)
  • Total System Ports:
