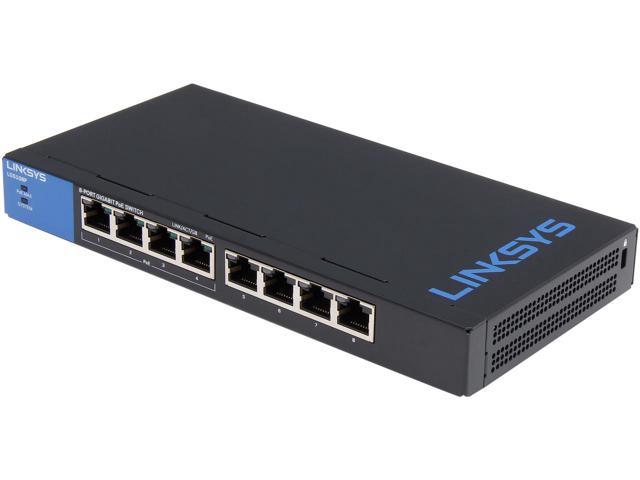

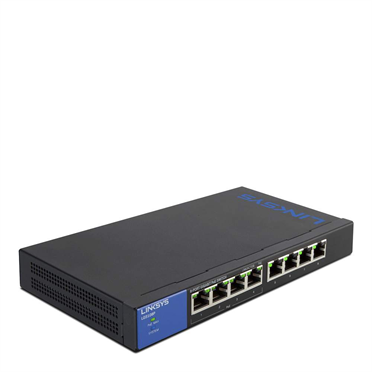

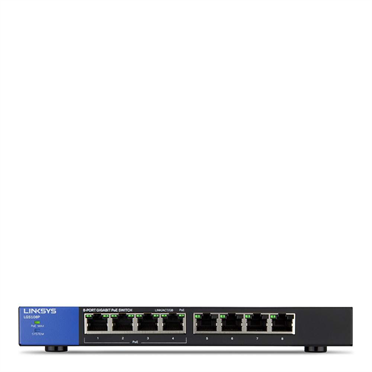

LGS108P 8-PORT | SWITCHES | Linksys

LINKSYS LGS124 24-PORT BUSINESS GIGABIT SWITCH Upgrade the data paths of your local wired network to information superhighways with 8-port desktop Gigabit PoE switches. Learn More Wired connection speed up to 1,000 Mbps 8 Gigabit Ethernet autosensing ports Power over Ethernet (PoE) support Easy plug & play connection QoS Meets EEE (Energy Efficient Ethernet) 802.3az standard
Manufacturer: Linksys
Call for pricing
  • Model Name:
    LGS108P
  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab
    • IEEE 802.3az
    • IEEE 802.3af
    • IEEE 802.3at (PoE+)
  • Ports:
    8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W
  • LEDs:
    Link, speed, activity, and PoE indicators
  • Performance:
    • Full line rate and forwarding rate of 64B frame at:
    • 1.488 Mpps for 1000M port
    • 0.1488 Mpps for 100M port
    • 0.01488 Mpps for 10M port
  • MAC Address Table Size:
    8,000 entries
  • Bandwidth:
    16 Gbps (non-blocking)
  • Fans:
    None
  • Minimum System Requirements:
    Connected devices need Ethernet connectivity and Ethernet cables
  • Dimensions (LxWxH):
    210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)
  • Weight:
    0.556 kg (1.23 lbs)
  • Power:
    54 VDC, 1.2 A
  • Power Consumption:
    3.83 W / 7.0 W
  • Power Saving:
    Cable connected detection, sleep mode
  • Power Supply:
    External
  • Operating Temperature:
    0–50°C (32–122°F)
  • Storage Temperature:
    -40–70°C (-40–158°F)
  • Operating Humidity:
    10–90% (non-condensing)
  • Storage Humidity:
    10–90% (non-condensing)
  • Mounting:
    Wall
  • Quality Of Service:
    802.1p and DSCP
  • Regulatory Compliance:
    FCC Class A, CE
  • Warranty and Support:
    Limited Lifetime
