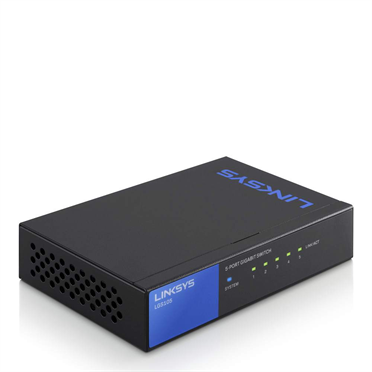

LINKSYS LGS105 5-PORT BUSINESS DESKTOP GIGABIT SWITCH Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speeds. Learn More Wired connection speed up to 1000 Mbps 5 Gigabit Ethernet auto-sensing ports Easy plug & play connection QoS Meets EEE (Energy Efficient Ethernet) 802.3az standard
Manufacturer: Linksys
Call for pricing
  • Model Name:
    LGS105
  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab
    • IEEE 802.3az
  • Ports:

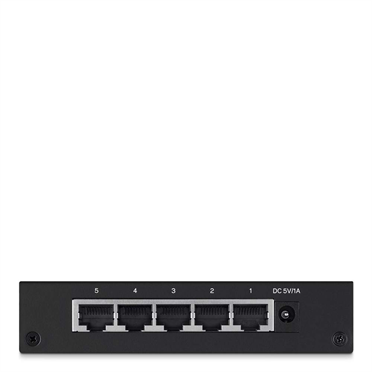

    5 Gigabit Ethernet (10/100/1000) Ports
  • LEDs:

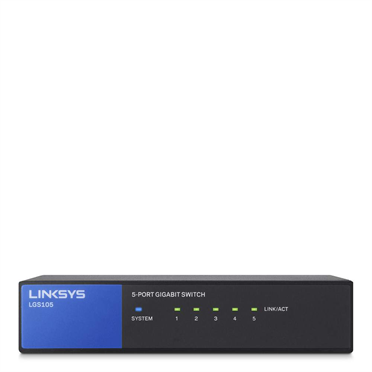

    Link and activity indicators
  • Performance:
    • Full line rate and forwarding rate of 64B frame at:
    • 1.488Mpps for 1000M port
    • 0.1488Mpps for 100M port
    • 0.01488Mpps for 10M port
  • MAC Address Table Size:
    8,000 entries
  • Bandwidth:
    10 Gbps (non-blocking)
  • Fans:
    None
  • Minimum System Requirements:
    Connected devices need Ethernet connectivity and Ethernet cables.
  • Dimensions (LxWxH):
    121 x 75 x 26 mm (4.76 x 2.95 x 1.02 in.)
  • Weight:
    0.248 kg (0.55 lbs)
  • Power:
    110-240V AC, 50/60Hz, 5V DC, 1.0A
  • Power Consumption:
    0.73W / 2.22W
  • Power Saving:
    Cable connected detection, sleep mode
  • Power Supply:
    External
  • Operating Temperature:
    0–40°C (32–104°F)
  • Storage Temperature:
    -20–70°C (-4–158°F)
  • Operating Humidity:
    10–90% (non-condensing)
  • Storage Humidity:
    10–90% (non-condensing)
  • Mounting:
    Wall
  • Regulatory Compliance:
    FCC Class B, CE
  • Warranty and Support:
    Limited Lifetime
