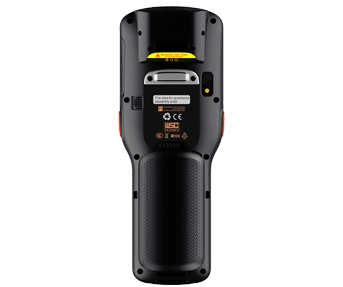

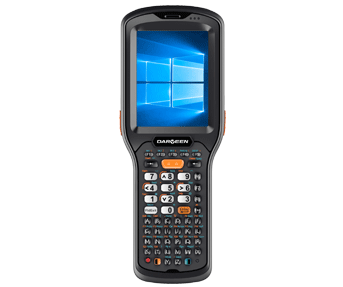

HT-9800 Rugged Mobile Computer

The HT-9800 series, with the perfect balance of rugged and ergonomics, can provide excellent performance even in the most extreme conditions
Manufacturer: Darveen
Call for pricing
Cortex-A8 processor, 1.0GHz,support WinCE 6.0 / Octa-Core processor, 1.3GHz support Android 6.0
~ 512MB RAM & 512MB ROM / 2GB RAM & 16GB ROM
~ 3.5"(480 x 640)TFT resistive touch screen / HD capacitive touch screen
~ Wireless Communications, including Wi-Fi, Bluetooth 2.1; Optional support GPS and 4G LTE
~ Integrated 1D/2D Barcode Scanner, optional 500W pixel auto-focus camera
~ IP65 Dust and Water proof, MIL-STD-810G/ 2.5M drop compliant

Performance Parameter
Operating systemMicrosoft Windows CE 6.0 / Android 6.0
Processor1GHz / Eight-core 1.3GHz
Memory512MB RAM+512MB ROM / 2G RAM+16G ROM
Physical Parameter
Display screen3.5" 480x640TFT color touch screen
/ 3.5" 480*640 capacitance touch HD screen
Camera(optional)5 mega pixel, autofocus, LED light
/ 13 mega pixel, autofocus, LED light
Input methodEnglish, Arabic input method, pinyin and handwriting input
/ English input, installation of input method supported
Working timeAbove 10 hours in regular use Above 280 hours standby
/ Above 8 hours in regular use Above 200 hours standby
BatteryUnLoadable 3.8V 3200mAH lithium battery
Dimen sionsL210 mm x W79 mm xT28 mm
Weight360g(standard battery included)
Keyboard52 regular keys, 1 power switch key, 1 reset key, 2 side keys
Power adapterInput: AC 100 - 220V 50/60HZ: Output: DC 2.5A
Audio(optional)3.5mm stereo headphone jack,built-in speaker and built-in microphone(optional)
NotificationLoudspeaker, indicator light and vibration
Interfacel(optional)Industry grade Micro USB 2.0 data interface, Micro SD/TF card sbt,
SIM card slot (optional), Charging interface, PSAM slot
Environmental Parameter/IP Rate
TemperatureWorking :-10°C - 50°C Storage:-30°C - 60°C
Electrostatic±15kV air discharge, ±8kV direct discharge
Relative humidity5% ~ 95%RH
Protection gradeIP65 grade
Height of anti-dropping2.5m(0n concrete ground)
Strength of anti-rolling1m(More than 1000 rolling by impact force)
Communication Data Parameter
WiFiIEEE 802.11 a/b/g/n / IEEE 802.11 a/b/g/n
BluetoothBluetooth 2.1
/ Bluetooth 4.0
GPS (optional)Precision:10m(open skylloptionaL for Android OS)
Identification Parameter
Barcode(optional)1D Laser/2D image scanning engine
Scanning precision: ^ 3 mil
Reading distance: 3cm-70cm(Depends on barcode density and code system]
UPC/EAN, Code128, Code39, Code93, Codell, Interleaved 2 of 5, Discrete 2 of 5,
Chinese 2 of 5, Codabar, MSI, RSS etc;PDF417, MicroPDF417, Composite,
RSS, TLC-39,Data matrix, QR code, Micro QR code,Aztec,Postal Codes: US PostNet;
US Planet,UK Postal; Japan Postal Dutch Postal (KlX)etc.
CCC,Rohs,IP65grade, CE, FCC and IS09001
