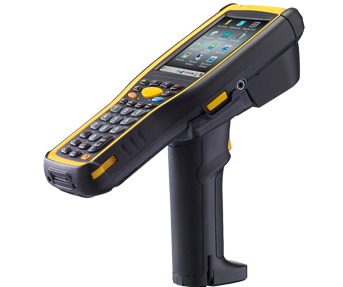

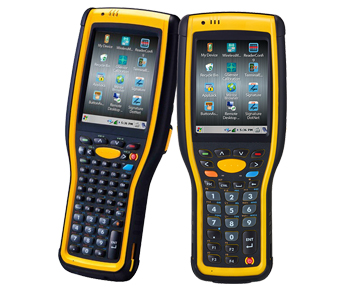

HT-9700/9700A Rugged Mobile Computer

3.5" TFT, TI OMAP 3730 1GHz CPU, 1D / 2D, WiFi / Bluetooth, Windows CE6.0 / Windows Handheld 6.5 / Android 6.0
Manufacturer: Darveen
Call for pricing
Features
~ TI OMAP 3730 1GHz   processor
Embedded CE with Windows 6 or Windows Embedded 6.5 operating system Handheld? 512MB memory & 4GB flash memory
~ 3.5 inch color touch screen, resolution 240 x 320
~ Built in WLAN 802.11a/b/g/n wireless network adapter and Bluetooth V2.1.
~ IP65 dustproof and waterproof standard, SGS 1.8M multiple drop certification (MIL-STD-810G test standard).

Parameters
System
ProcessorTI OMAP 3730 1GHz / Cortex A53 2GHz
System Memory512MB DDR SDRAM / 2 GB LPDDR3 SDRAM
Storage256MB Flash ROM / 16 GB eMMC(MLC)
SoftwareWindows Embedded CE 6.0
Windows Embedded Handheld 6.5 (Optional) / Android 6.0(Optional)
Display
Size3.5”  TFT color LCD with LED backlight, Sunlight readable
ResolutionQVGA 240 x 320 / VGA 480 x 640
Touch Sreen4-Wire Resistive Type Touch Panel
I/O Port
I/O PortUSB, RS232
Alert

3 LED indicators (for RF, charging status and good reading) /Vibrator/ Speaker
Keypad & Button

30-key / 38-Key Numeric and 53-Key Alphanumeric keypads
with LED backlight
Expansion

One Micro SD slot
Audio
MicrophoneOne Mono Speaker
One 2.5 mm DIA stereo earphone jack
Radio Communications
WLAN802.11 a/b/g/n
WLANWEP, WPA (PSK, TKIP), WPA2 (AES, PSK), WPA-1x (TKIP, EAP-TLS, PEAP),WPA2-1x (AES, EAP-TLS, PEAP), 802.1x (EAP-TLS, PEAP)
BluetoothBluetooth V2.1
BluetoothGAP, SDP, GOEP, SPP, OPP, DUN, A2DP, PAN, HID, HSP, HFP, AOB, AVRCP
Barcode Engine
1D1D Laser / 1D Extended Range Laser
2D2D Imager / Near/Far 2D Imager
Power Management
BatteryRechargeable 3.7V 3600 mAh / 5400 mAh Li-ion Battery
Battery Life100-240 V AC, 50/60Hz, 5V DC/1A
Dimensions(L x W x D)214 mm x 87 mm x 47 mm
Weight447g (3600 mAh) / 478g (5400 mAh)
Working Hours13
CertificateFCC / CE / Green / BSMI / NCC / SRRC / CCC / ANATEL
Environmental
Operating Temperature-20~50?
Storage Temperature-30~70?
Battery Charging Temperature0~40?
Relative Humidity5~95% (Non-condensing)
DropSGS Certified 1.8 m Multiple drops onto concrete (MIL-STD-810G test standard)
Dust and WaterproofIP65
Application Software

App-Lock, Backup Utility, Button Assignment, Reader Configuration,
Signature Capture, MIRROR Browser 5, Kalipso Mobile Application Generator,Naurtech CETerm, SOTI MobiControl, Wavelink Browser and Emulator
Optional Accessories / Peripherals

Snap-on Cable (USB / RS232), Snap-on Car Charger, Pistol Grip,
Belt Holster for Device with Pistol Grip,* 4-slot Battery Charger,
Charging and Communication Cradle, 4-slot Ethernet Cradle.

Minimum 13 hours under WLAN and laser scanning per 20 seconds,
LCD 50% backlight and speaker on (volume is default) at 25°C,
Bluetooth® off / IEEE 802.11 a/b/g/n on. The test is based on one
braodcasting packet per second
