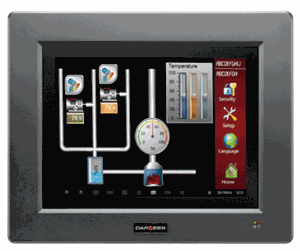

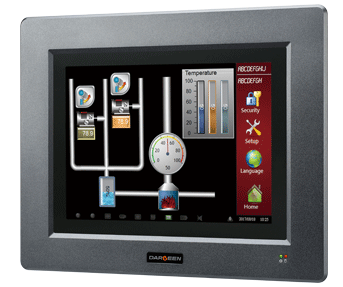

DPC-5120 Industrial Panel PC

12.1" Panel PC with Intel 4th. Haswell Core i5-4300U Quad-Core Processor
Manufacturer: Darveen
Call for pricing
Features
~ 15 "LED backlight touch liquid crystal display
~ Compact structure, front panel IP65 dustproof and waterproof
~ The fourth generation Haswell platform, Intel Core I5-4300U (1.9GHz) processor.
~ 5 COM, 4 USB, 2 GbE, HD Audio, 1 HDMI, 1VGA
~ Support panel and VESA installation

Parameters
System
CPUIntel® Quad-Core Core i5-4200U(1.6GHz)
Memory4GB SO-DIMM DDR3L-1333/1600 (up to 8GB)
Storage1 x 2.5"Drive Bay for SATA HDD/SSD
1 x Full-size Mini-PCIe for mSATA SSD
Operating SystemWindows 7/8.1/10
Display
Size12.1-inch
Resolution1024 x 768
Brightness450 nits
BacklightLED Backlight
VGAUp to 1920 x 1200
HDMIHDMI 1.4A up to 1920 x 1200
Multi DisplayDual Display (LCD + HDMI,LCD+VGA)
Touchscreen

5-Wire Resistive Touch
I/O Connectors
Series Port1 x RS-232/422/485 (COM3)
2 x RS-232 (COM1/2)
USB Port2 x USB3.0
2 x USB2.0
LAN Port1 x GbE LAN
Audio1 x HDMI
1 x VGA
Others1 x Power Connector (2-Pin Phoenix)
1 x Power Switch
1 x Remote Power Switch
3 x SMA Connector for External Antenna (WiFi, Bluetooth, WWAN)
Audio
Audio1 x Line-out
Speaker2 x Speaker (4ohm, 3w)
Expansion
Mini-PCIe1 x Full-size Mini-PCIe or Msata
1 x Full-size Mini-PCIe
Power Management
Power Input12V DC
Power AdapterAC-DC, 12V@5A, 60W
Power Consumption23.4W typ.
Environmental
Operating Temperature-10~60?
Storage Temperature-20~70?
Relative Humidity5%-95%,non-condensing
Shock and Vibration5~500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour peraxis
CertificationsCE, FCC
Mechanical
HousingAluminum
MountingPanel-mount, VESA-mount
Dimension (W x L x H)326.4 x 266 x 49 mm
Weight4.1Kg
