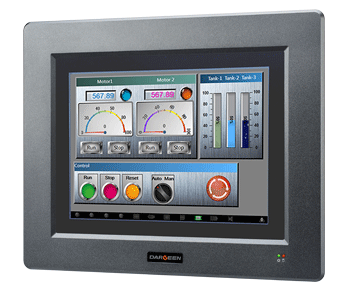

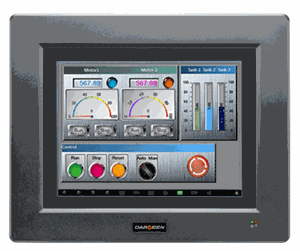

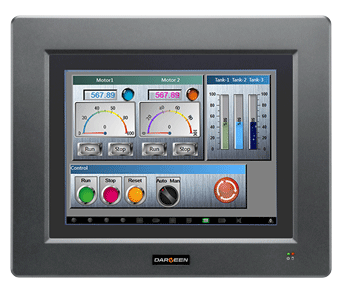

DPC-3190 Industrial Panel PC

19" Panel PC with Intel Celeron J1900 Quad-Core Processor
Manufacturer: Darveen
Call for pricing
Features
~ 19" LEDBacklight touch liquid crystal display
~ Lightweight design, front panel IP65 dustproof and waterproof
~ Intel Celeron J1900 2.0GHz processor
~ 6 COM, 4 USB, 1 GbE, HD Audio, VGA
~ Support panel and VESA installation

Parameters
System
CPUIntel® Quad-Core Celeron J1900 (2.0GHz)
Memory4GB SO-DIMM DDR3L-1333/1600 (up to 8GB)
Storage1 x Full-size Mini-PCIe for mSATA SSD1 x 2.5"Drive Bay for SATA HDD/SSD
1 x Full-size Mini-PCIe for mSATA SSD
Operating SystemWindows 7/8.1/10
Display
Size19-inch
Resolution1280 x 1024
Brightness250 nits
BacklightLED Backlight
VGAUp to 1920 x 1200
Multi DisplayDual Display (LCD + VGA)
Touchscreen

5-Wire Resistive Touch
I/O Connectors
Series Port1 x RS-232/422/485 (COM1)
1 x RS-232 (COM2)5 x RS-232 (COM2 / 3 / 4 / 5 / 6)
USB Port1 x USB3.0
3 x USB2.0
LAN Port1 x GbE LAN
Audio1 x VGA
Others1 x Power Connector (2-Pin Phoenix)
1 x Power Switch
1 x Remote Power Switch
2 x SMA Connector for External Antenna (WiFi, Bluetooth, WWAN)
Audio
Audio1 x Line-out
Speaker2 x Speaker (4ohm, 3w)
Expansion
Mini-PCIe1 x Full-size Mini-PCIe or Msata
1 x Full-size Mini-PCIe
Power Management
Power Input12V DC
Power AdapterAC-DC, 12V@5A, 60W
Power Consumption30W typ.
Environmental
Operating Temperature-10~60?
Storage Temperature-20~70?
Relative Humidity5%-95%,non-condensing
Shock and Vibration5~500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour peraxis
CertificationsCE, FCC
Mechanical
HousingAluminum
MountingPanel-mount, VESA-mount
Dimension (W x L x H)450 x 376 x 57 mm
Weight7.9Kg
