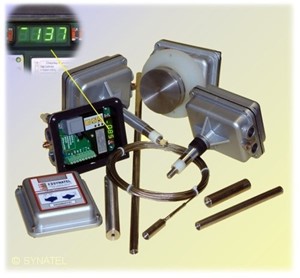

Fixed point capacitive level control suitable for detecting liquids, powders & granular solids. Automatic high/low level calibration with full manual override. LED display shows calibration & run mode readings. Power shield compensator, prevents false signalling due to material build-up on probe rod. Available with long or short power shirld, flush probe mounting or with clear viewing lid (display is visible through viewing windows to avoid cover removal. ATEX approved. |
| Supply | 110/230V ac, 24V dc |
| Load | 1.5A max, 50 mA dc |
| Ambient Temp. | -10°C to +50°C |
| Output | SPCO relay rated @ 2.5A 240V ac non-inductive |
| Output Mode | Switch selectable for normally ON (high level),
or normall off (low level) |
| Calibration | Membrane pushbuttons with LED display. Automatic calibration with full manual override |
| Indicators | Digital display for calibration and run mode settings, plus power, timer and output LED's |
| Mounting | 1" BSP |
| Protection | IP65 |
| Compensator | Power shield compensates for material build up between probe and vessel wall (earth/ground). Prevents false signalling. Ideal for sticky or viscous materials |
| Weight | DML4(A)W - 2Kg
200mm rod - 0.25Kg
300mm rod - 0.25Kg
1 metre rod - 1.50Kg
2 metre rod - 3.00Kg
10 metre wire rope - 1.75Kg |
| Approval | ATEX 1D Explosive Dust hazard use. |
| Options/Type | Standard: DML4(A)W
Standard unit with non-window Lid: DML4(A)
Short power shield: add 'S' at end - DML4AS
Flush mounting: add 'F' at end - DML4AF
eg:Short power shield with clear lid: DML4ASW
Flush mounting with clear lid: DML4AFW |
