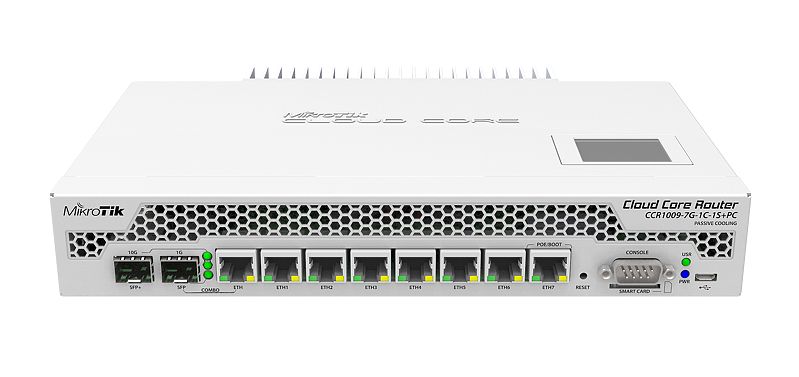

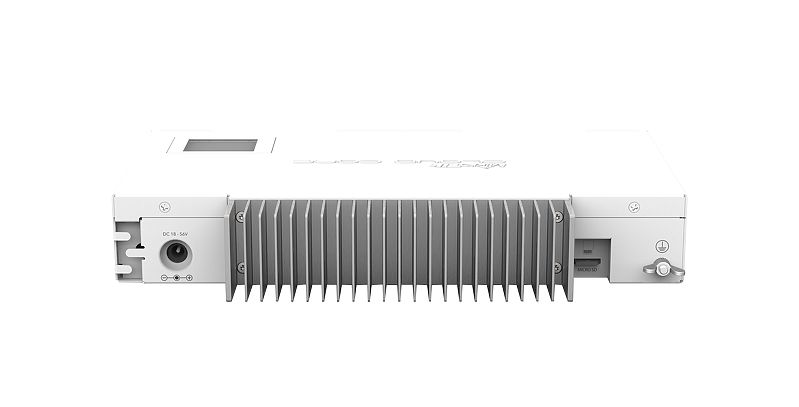

CCR1009-7G-1C-1S+PC

7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1GHz CPU, 2GB RAM, LCD panel, passive cooling desktop enclosure, SmartCard slot, RouterOS L6, PSU
Call for pricing

Specifications

Details
Product codeCCR1009-7G-1C-1S+PC
ArchitectureTILE
CPUTLR4-00980
CPU core count9
CPU nominal frequency1 GHz
Dimensions272x190x47mm
License level6
Operating SystemRouterOS
Size of RAM2 GB
Storage size128 MB
Storage typeNAND
Tested ambient temperature-20C .. +60C

Powering

Details
Max Power consumption33W
PoE inPassive PoE
PoE in input Voltage18-57 V
Number of AC inputs1
AC input range100-240
Number of DC inputs2 (PoE-IN, DC jack)
DC jack input Voltage18-57 V

Ethernet

Details
10/100/1000 Ethernet ports7
Ethernet Combo ports1

Fiber

Details
SFP+ ports1

Peripherals

Details
Number of SIM slots1 Smart card (Mini SIM)
Serial portRS232
Number of USB ports1
USB Power ResetYes
USB slot typemicroUSB type AB
Max USB current (A)1

Other

Details
CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes
